5.1 Functions of the CU-6000
The optical communications unit CU-6000 is available in two models: CU-6001 and CU-
6002. The CU-6001 has both of functions (1) and (2) given below; the CU-6002 has only
function (1).
(1) Data exchange function
The CU-6001/CU-6002 exchanges data and programs between the BHT-6000 and
the host computer. It interfaces with the BHT-6000 via the optical interface and
with the host computer via the RS-232C interface.
(2) Ni-MH battery cartridge charging function
The CU-6001 charges the Ni-MH battery cartridge.
5.2 Components and Functions

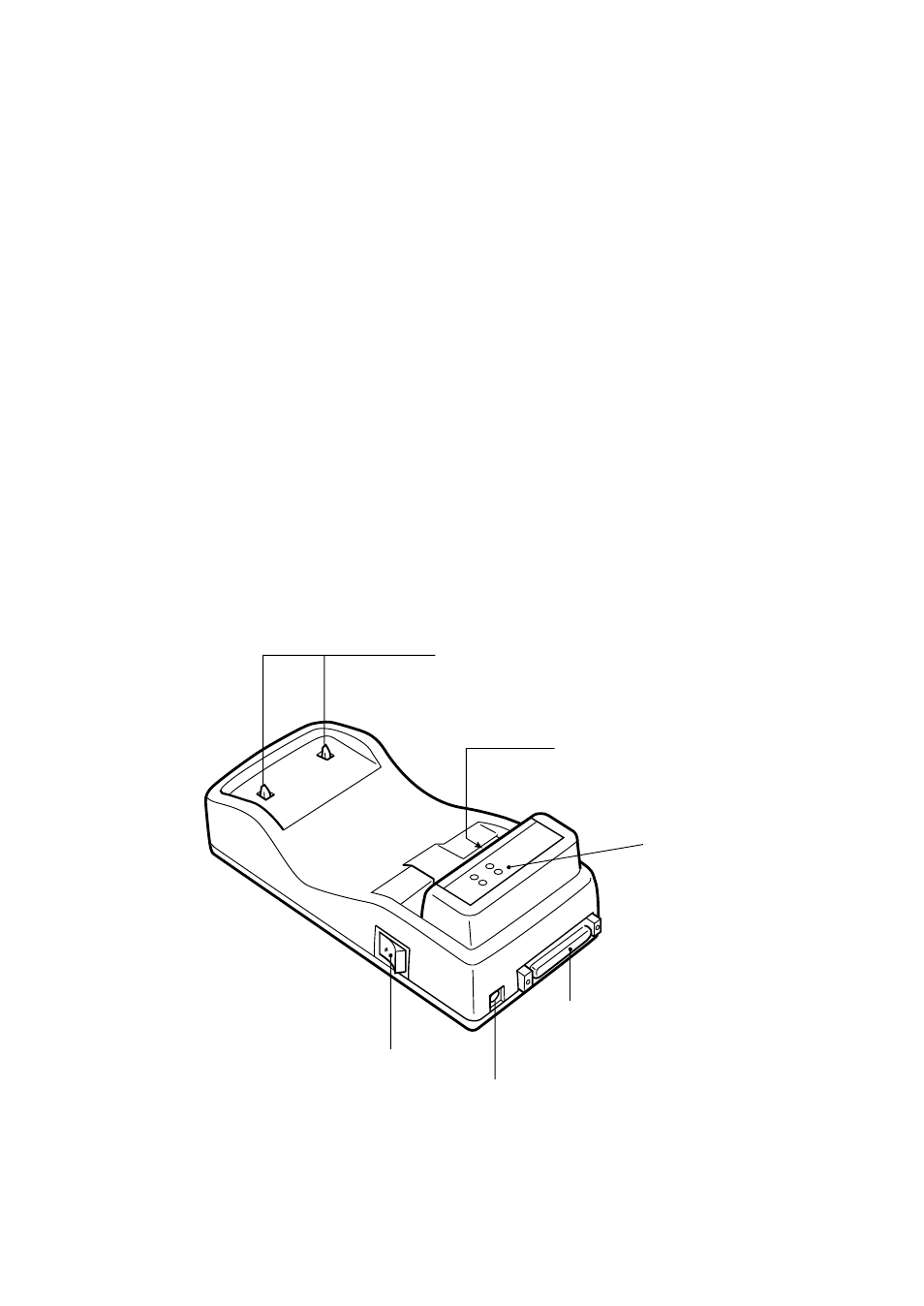

• BHT-6000 charge terminals
(Not provided on CU-6002)
Do not stain these terminals; failure to protect
the terminals may result in decreased charging
efficiency.
• Optical interface port
Used to exchange data
optically with the BHT-6000.
• Status indicator
(Not provided on
CU-6002)
• RS-232C interface port
Used to exchange data
with the host computer.
• Power inlet connector
Plug the AC adapter into this
connector.
• Power switch
