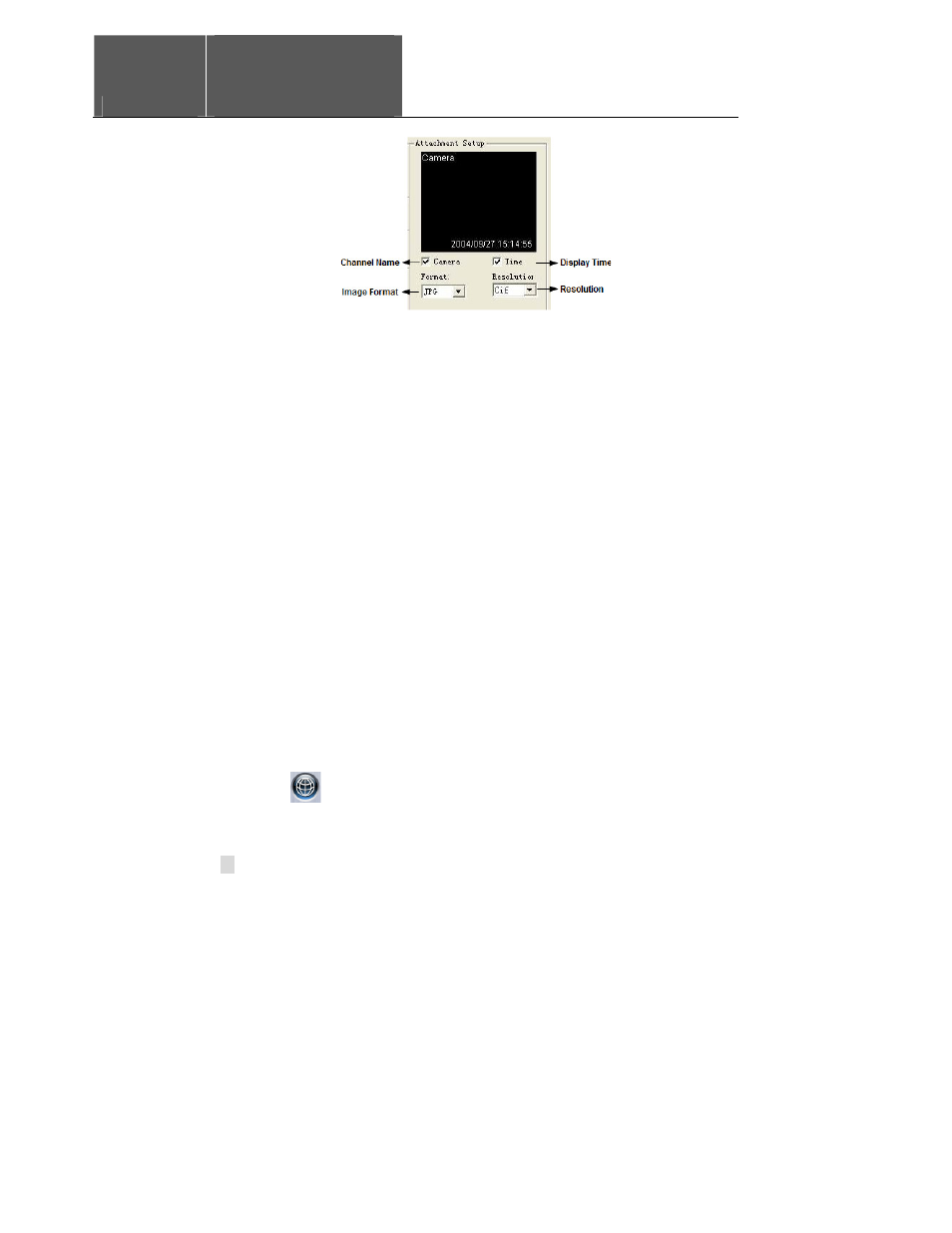

Figure5-14 Attachment Setup
NOTICE: For every alarm event, only one picture will be sent.
5.6 E-map Configuration
E-map is used to show full geographic range covered by the whole monitoring
system in the form of map. An E-map features simple operation and direct
display of status and is generally graded or tiered in the form of a tree
diagram.
5.6.1 Edit Map
The system only supports bmp or jpg image format.
NOTICE: You need to draw the floor plan of where you want to install the
cameras in a program such as Paint or Photoshop and save it in BMP
format before using this feature.
Click to enter ‘Emap → Emap Edit’, press right key of Load Picture in
the default interface of the map and select the required map file in the related
folder, open the file and the map will be displayed in this interface, as shown
in Figure5-15 E-Map Edit.
