5.5.2 Alarm Record

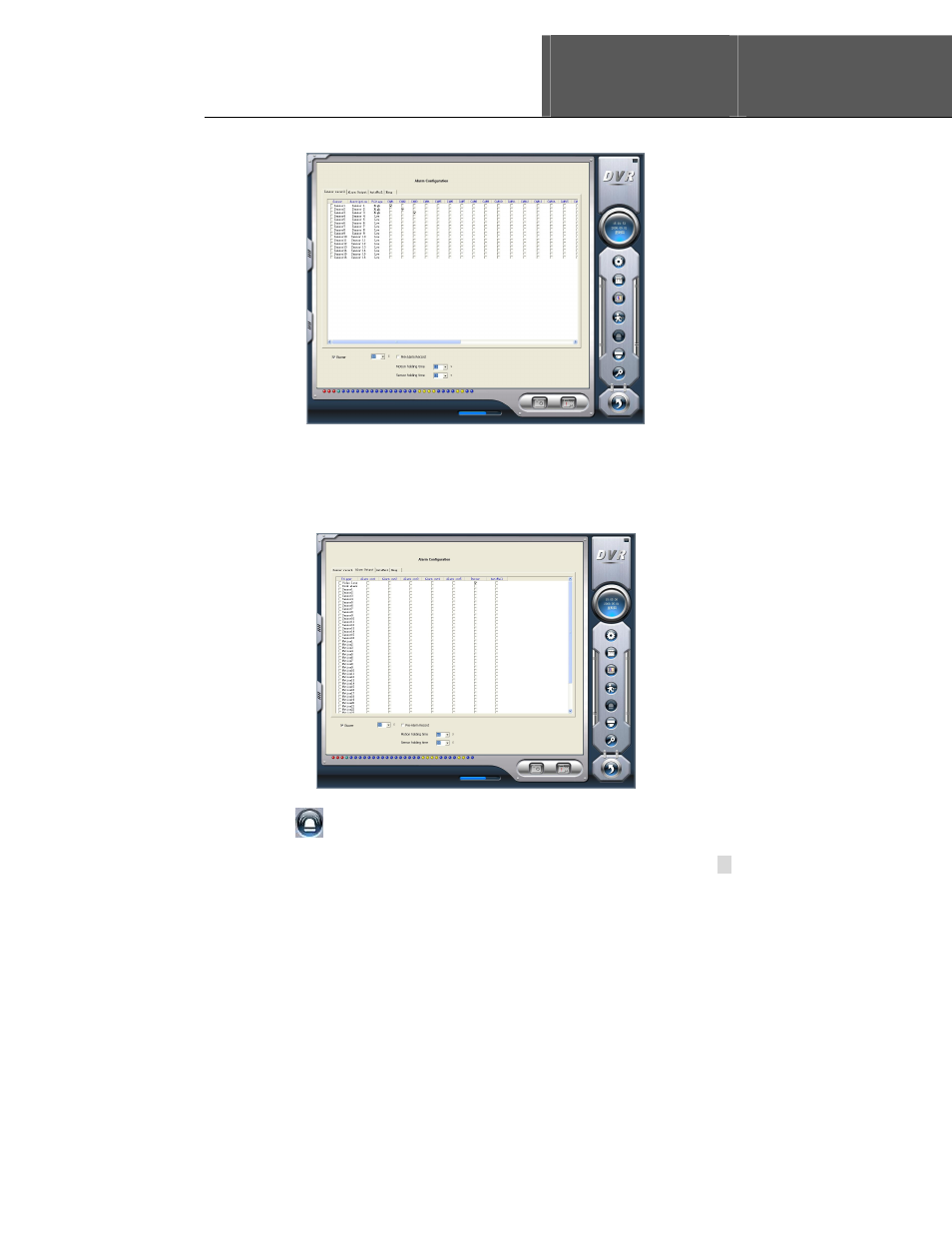

Figure5-10 Alarm Trigger Method Configuration
Every sensor can trigger multiple channels to record. For example, if users
select CAM1, CAM4 and CAM5 for Sensor2, then once the sensor is
activated, CAM1, CAM4 and CAM5 will begin to record. Users can also select
the voltage, high and low, for alarm signals.
5.5.3 Alarm Output
Figure5-11 Alarm Output Configuration
Press in the main interface to access the following Alarm Configuration
area where users can setup a motion detection alarm, sensor alarm, and
