Aiphone AN-8000EX User Manual
Page 9
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

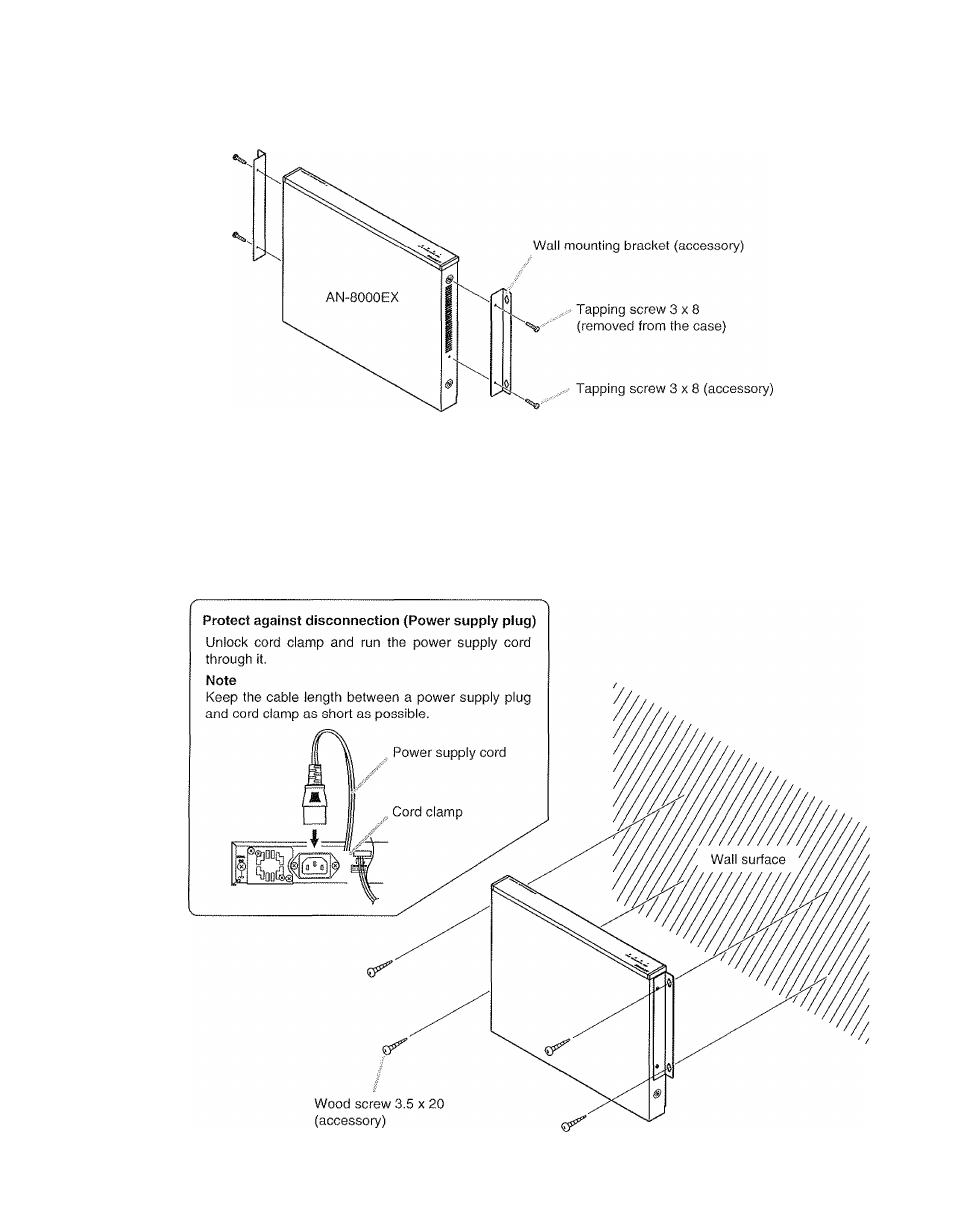

Step1. install the supplied wail-mounting bracket to the Exchange using each 2 supplied screws and
removed screws from the case.
7.3. Wall Mounting
Step 2. Mount the Exchange on the wall.
Notes
« Use appropriate screws for the construction of wall.
« Wood screws 3.5 x 20 are supplied with the AN-8000EX.
® The socket-outlet shall be installed near the equipment and shall be easily accessible.
