AN-8000EX Exchange
8, WIRING

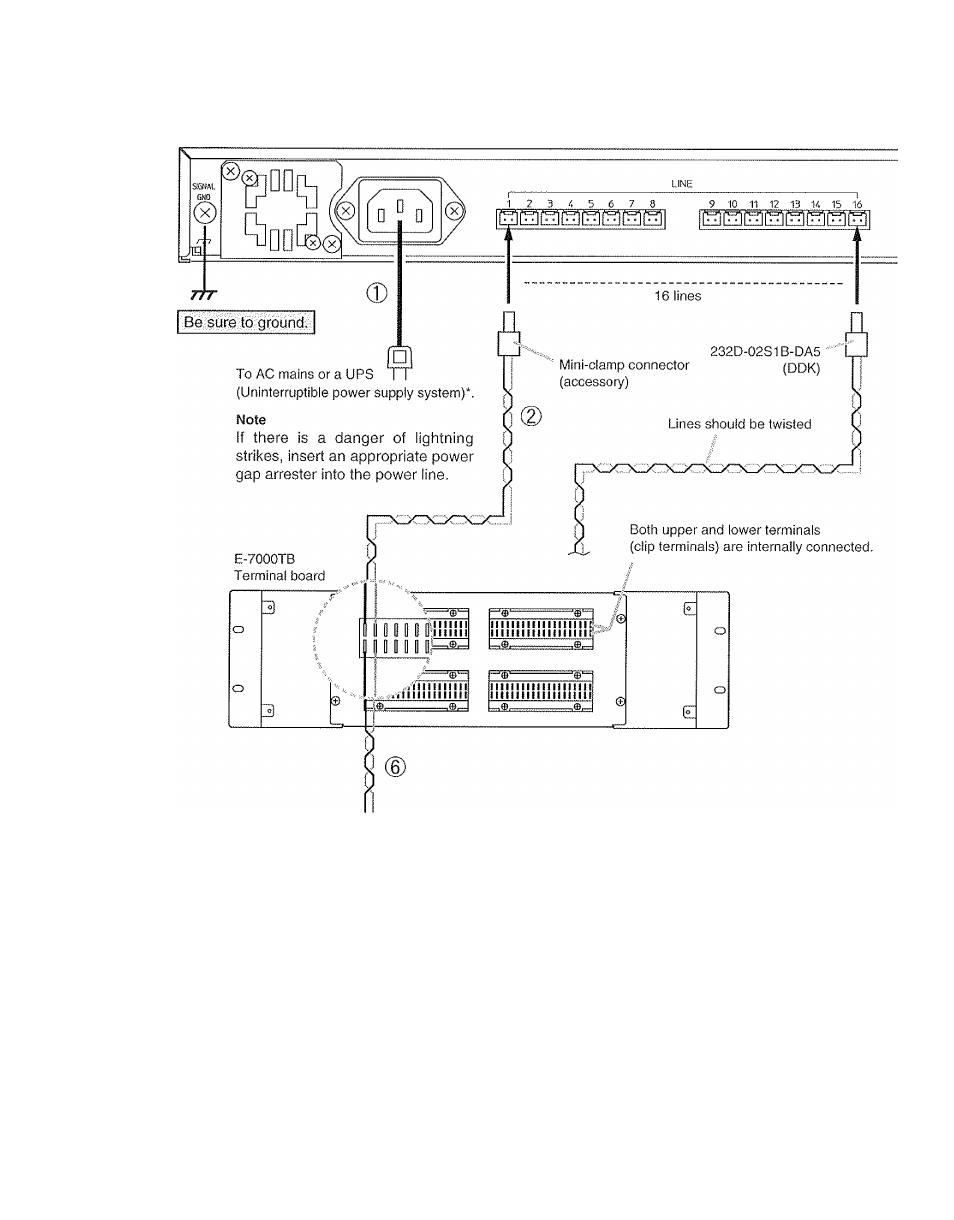

8.1. Connection Diagram
I
OXO O Q
o o o o o o
OOOr^
ooo^
ooo
ooo o
Station
Select an appropriate UPS taking into consideration the total power consumption of all system components
and the required backup time, and also the requirement that the UPS should employ the on-line power
system.
Reference
Exchange: Maximum 50 W.
8-Port 10M/100M Switching Hub: 10W (Differs depending on products.)
10
