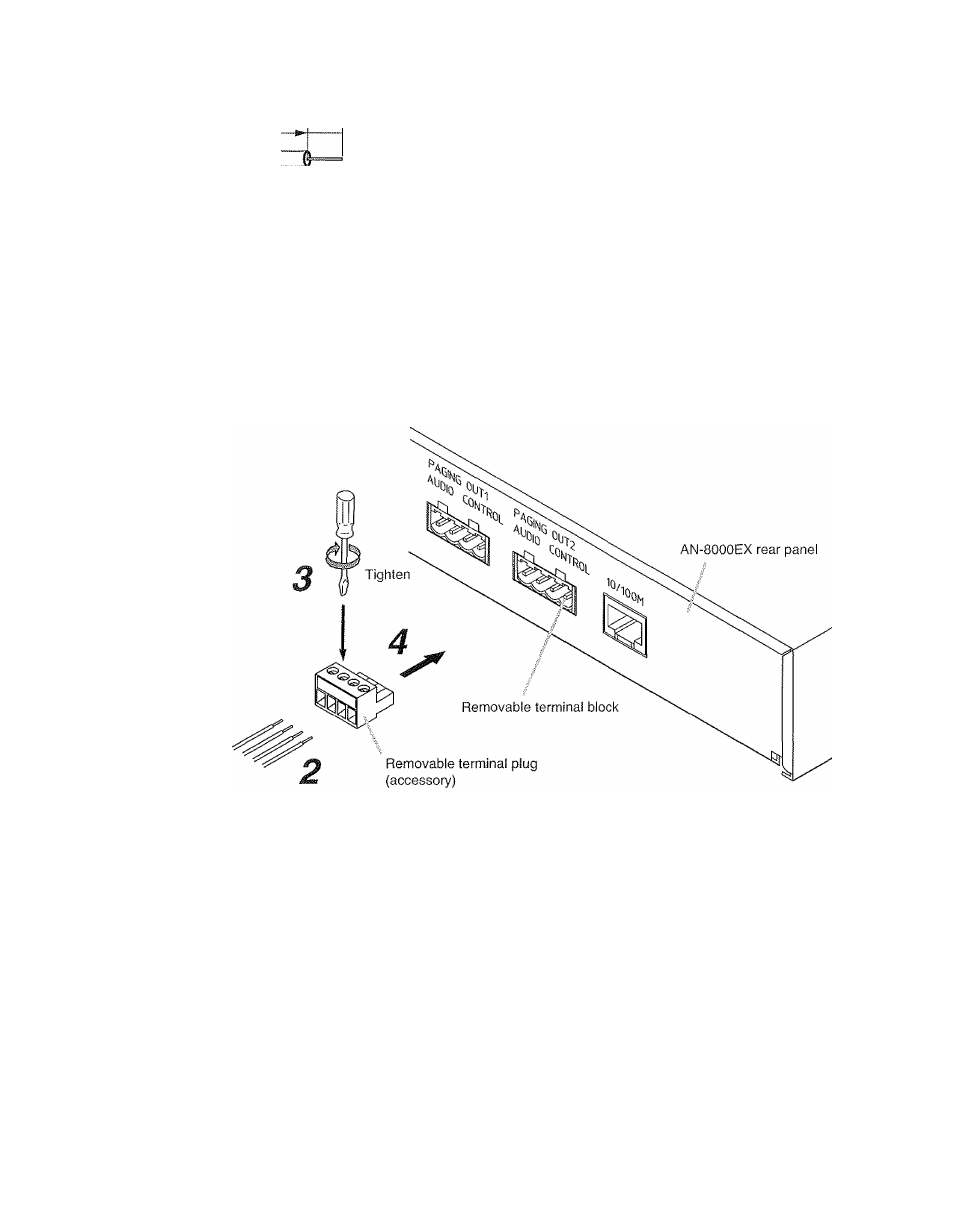

Step 1. Strip a cable jacket of approx. 7 mm to expose inner cable.

8.4.2. Removable terminal plug connection

7 mm

For cables, refer to p.

1 2 ,

Type of Cable.

Note
Do not solder plate on exposed inner cables when using a stranded wire.

Step 2. Loosen the terminal screws and insert the cables.

Step 3. Tighten the terminal screws securely.

Notes

« T u g iightiy on the cable to be sure that it does not pull free. If the cable pulls free, loosen the

terminal screw again and reconnect from Step 2.

° Use the screwdriver appropriate to the screws tightened into the terminal plug.

Step 4. Insert the wired terminal plug into the terminal block of the Exchange.
