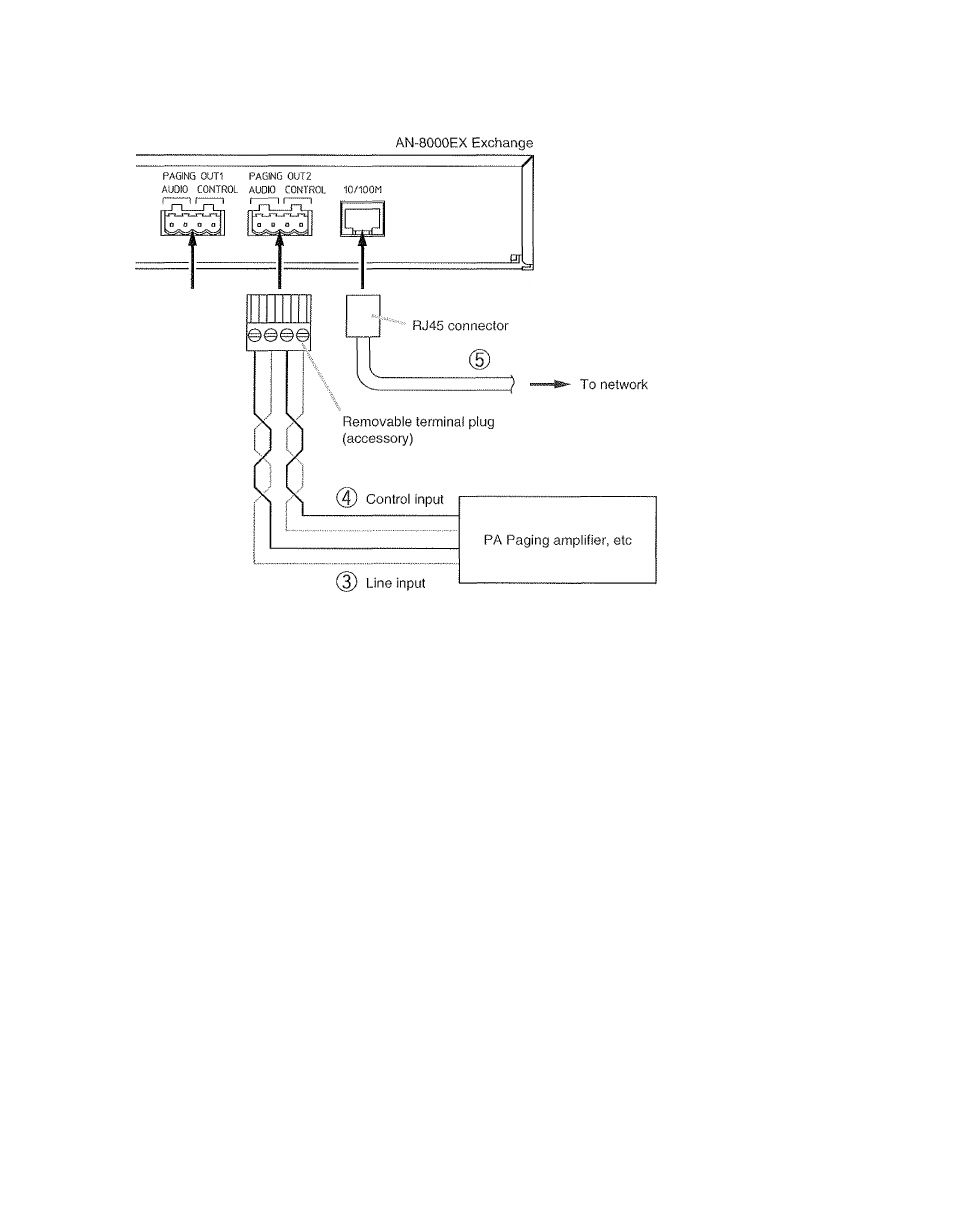

[General description of connection]
For cables, referto p. 12.
1. Power supply connection
Connect the supplied power supply cord to AC
Mains or a UPS (Uninterruptible power supply
feeder).
About power supply cord handling
The supplied power supply cord is designed for
exclusive use with the AN-8000EX.
Use the supplied power supply cord only with the
Exchange.
2. Line terminal connection
The line terminals have no polarity.
(Refer to p. 13, Connector connection.)
3. Paging audio output terminal connection
Paging audio output terminals have no polarity.
(Refer to p. 14, Removable terminal plug
connection.)
[Specification of paging audio output]
0 dB*, 600 Q, balanced
4. Paging contact output terminal connection
Paging contact output terminals have no polarity.
(Refer to p. 14, Removable terminal plug
connection.)
[Specification of paging contact output]
No voltage make contact output
Withstand voltage: Max. 24 V DC
Control current: Max. 0.5 A
5. Network connection
Can be connected to a network of 10BASE-
T/100BASE-TX in auto-sensing.
Use a UTP category 5 straight-through cable for
this connection.
6. Station connection
The connection method differs depending on
types of stations.
For details, refer to the instruction manual
supplied with each station.
* 0 dB - 1 V
