Mini-clamp connectors for line terminals and detachable terminal plugs for paging output terminal are supplied

with the AN-8000EX Exchange.

Perform each connector connection as follows.

8.4. Connector Connection

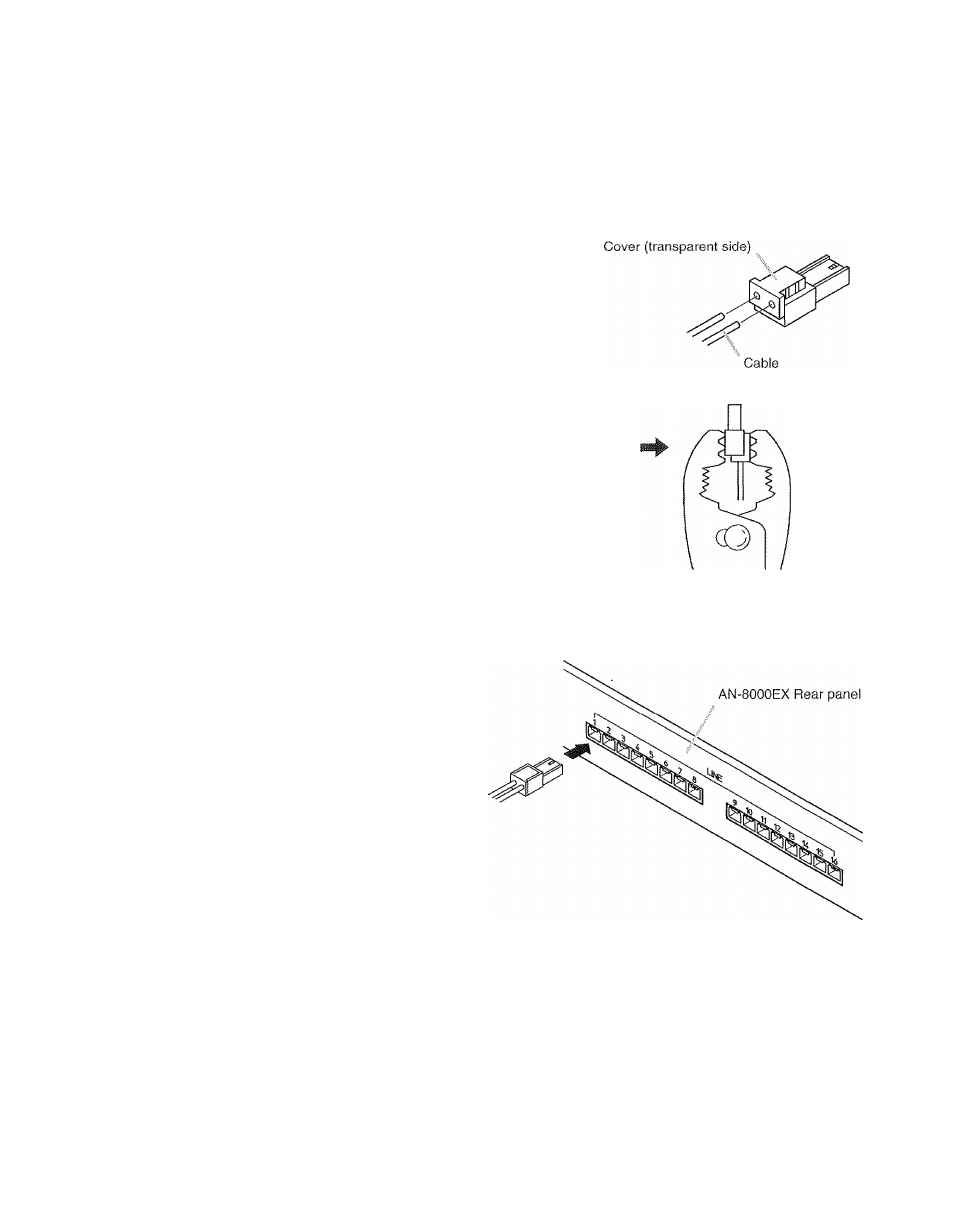

8.4.1. Mini-clamp connector connection

Connect the mini-clamp connector supplied with the AN-8000EX to a cable using a commercially available

tool (pliers).

securely to a cover section (transparent side) of the
mini-clamp connector.

Note

insert the cable without stripping the cable jacket.

For cables, refer to p. 12, Type of Cable.

Step 2. With a pair of pliers, lightly pinch the mini-clamp cover

and, after ensuring that the cable is securely inserted,

firmly squeeze on the cover.

Note
Squeeze on the mini-clamp cover until it is correctly
locked.

Step 3. insert the wired connector (plug) into the exchange's connector (socket) until it locks into place.
