821 HEATING COOLING RELAY
BLOWER/CONTROL ^^^LAY
COMPARTMENT
DIVIDER PANEL
EVAPORATOR MOTOR
RUN CAPACITOR
BLOWER HOUSING
GAS BURNER
GAS VALVE OUTLET
TRANSFORMER COMPRESSOR
CONTACTOR
k ■■■ »SÆ
GROUND LUG
DUAL RUN CAPACITOR
(COMPRESSOR
a
CONDENSER FAN
MOTOR)
LOW-VOLTAGE
PIGTAIL LEADS
COMPR/CONTROL
COMPARTMENT
DIVIDER PANEL
IGNITER
BURNER OBSERVATION
PORT
GAS MANIFOLD
MANUAL ON/OFF
KNOB
GAS VALVE INLET
PRESSURE TAP
MODEL 646A-X PILOT TUBE PIPE PLUG (PROPANE UNIT
PIPE PLUG
GAS VALVE
PRESSURE SWITCH MOUNTS HERE)

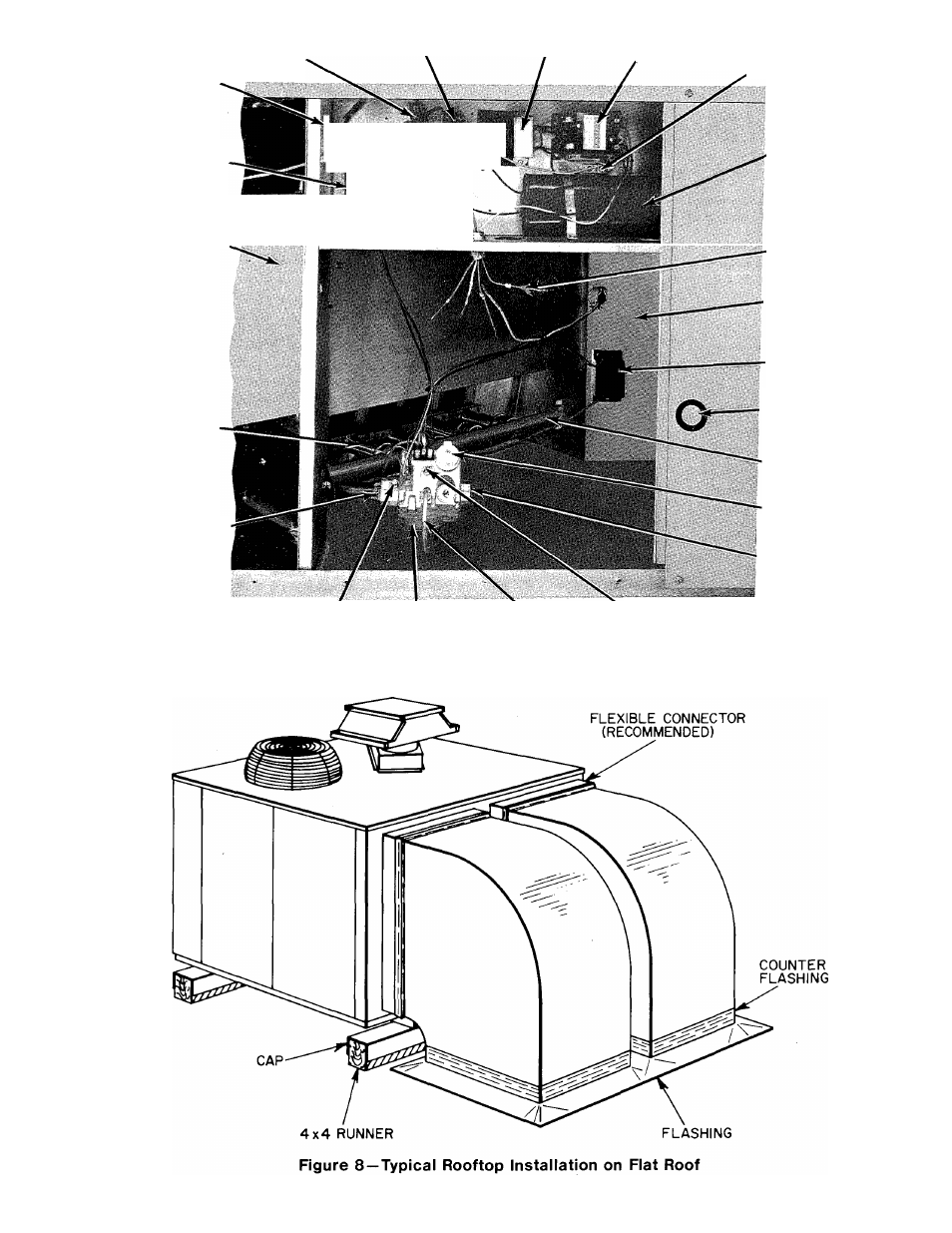

Figure 7—Partial Left-Side View with Control Access Door Removed
