4. Tip the rider up on its back wheeis. See figure
31. Tipping unit up against a wail is recom­
mended.
5. Block unit to prevent tipping.
Removing the Cutting Deck:

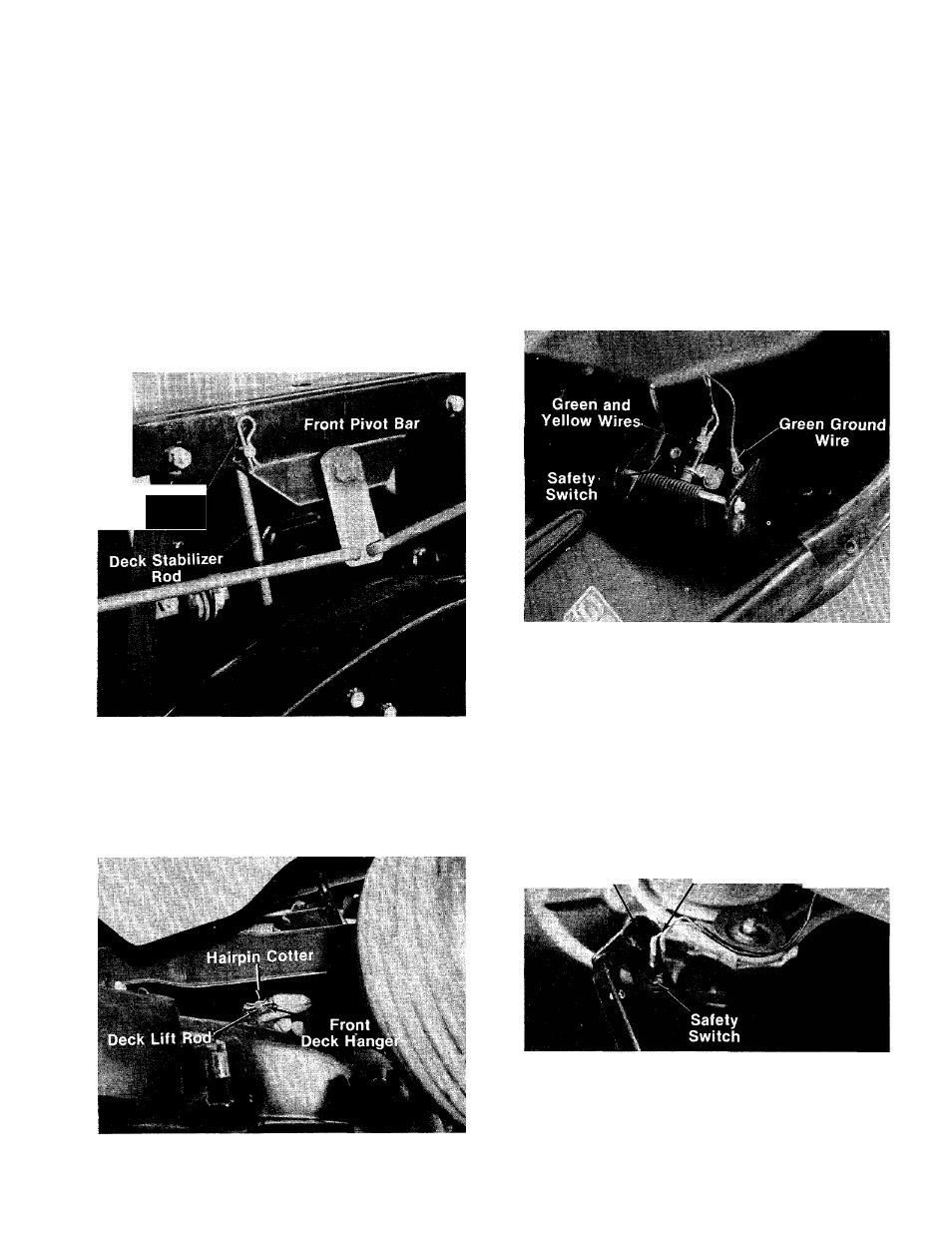

1. Remove hairpin cotter from deck stabilizer rod
at the front pivot bar. See figure 32.
3. Unplug the green and yellow wire at the safety
switch on the chute side of deck. Remove the
green ground wire using a 7/16" wrench. See
figure 34.
■^^NOTE
When reassembling the deck, plug
the green wire into the top of the
safety switch, and plug the yellow
wire into the bottom of the safety
switch.
Hairpin
Cotter
FiGURE 32.
2. Remove hairpin cotter from deck lift rod
located at the front deck hanger bracket. See
figure 33.
FiGURE 33.
FiGURE 34.
4. Unplug the two red wires on the safety switch
located on the left hand side of deck at the
blade engagement lever. See figure 35.
Blade Engag^i
Leve?
TwIjfAed Wires
FIGURE 35.
5. Remove the belt keeper located at the right
hand side of blade pulley on deck. A 1/2"
wrench is required to remove the hex nut. See
figure 36.
19
