Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator
1.0

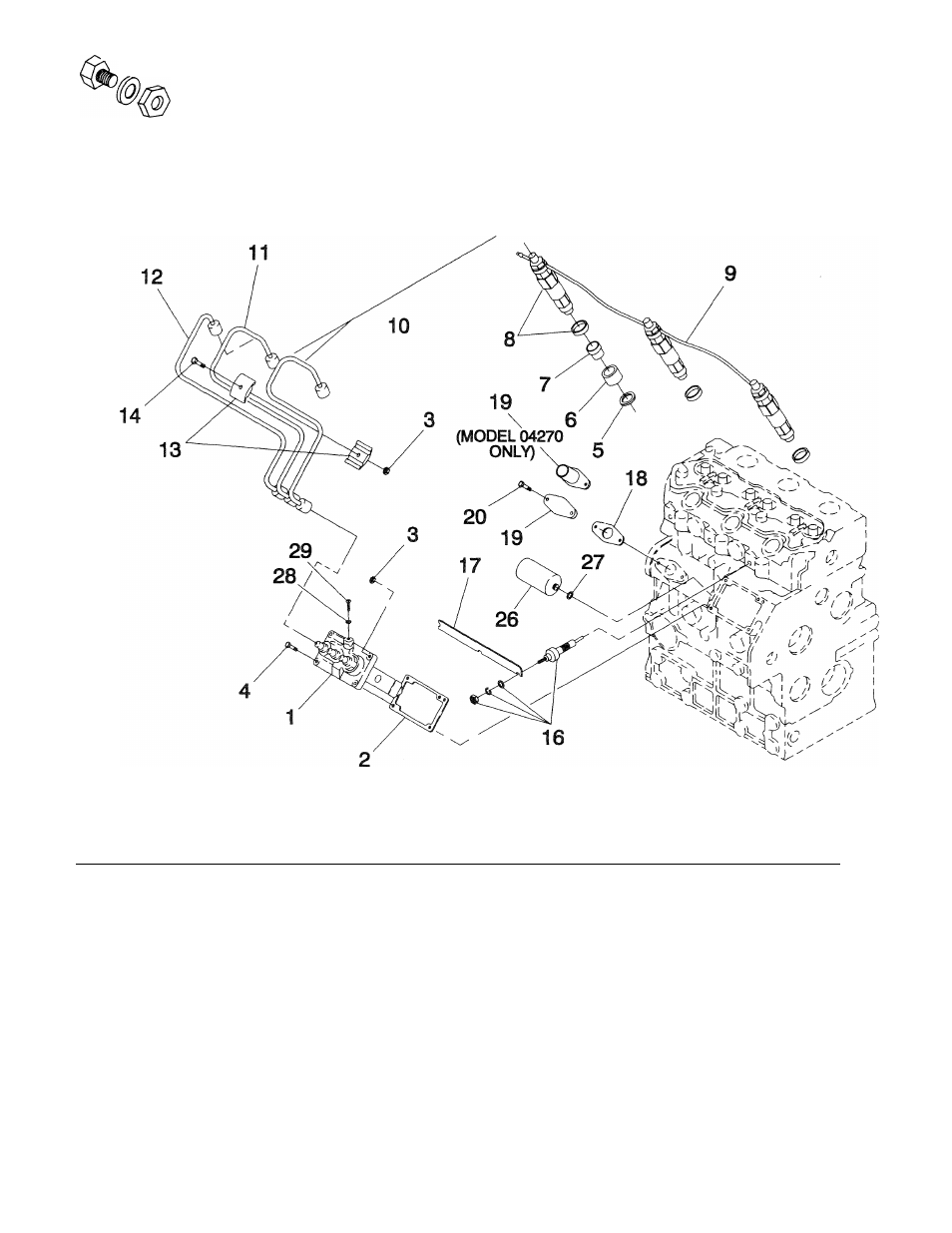

Liter Diesel injector Pump - Drawing No. 075686-B
ITEM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY. DESCRIPTION
1
0709390316
1
INJECTOR PUMP ASSEMBLY
13
0709390330
1
CLAMP
2
0709390317
AR
SHIM-0.2MM
14
0709390331
1
BOLT
0709390318
AR
SHIM-0.3MM
16
0709390332
3
GLOW PLUG
0709390319
AR
SHIM-0.5MM
17
0709390333
1
CONNECTOR
0709390320
AR
SHIM-1.OMM
18
0709390334
1
GASKET
3
0709390298
3
NUT
19
0709390335
1
COVER
4
0709390321
2
BOLT
(ALL MODELS EXCEPT 04270)
5
0709390322
3
GASKET
0C4736
1
TUBE, ENGINE OIL FILL
6
0709390323
3
INSERT
(MODEL 04270 ONLY)
7
0709390324
3
CAP
20
0709390264
2
BOLT
8
0709390325
3
INJECTOR
26
0709390341
1
SOLENOID
9
0709390326
1
TUBING
27
0709390342
1
WASHER
10
0709390327
1
TUBING
28
0709390343
1
WASHER
11
0709390328
1
TUBING
29
0709390344
1
SCREW
12
0709390329
1
TUBING
AR - AS REQUIRED
SS
