QUIETPACT™ 75D Recreational Vehicle Generator

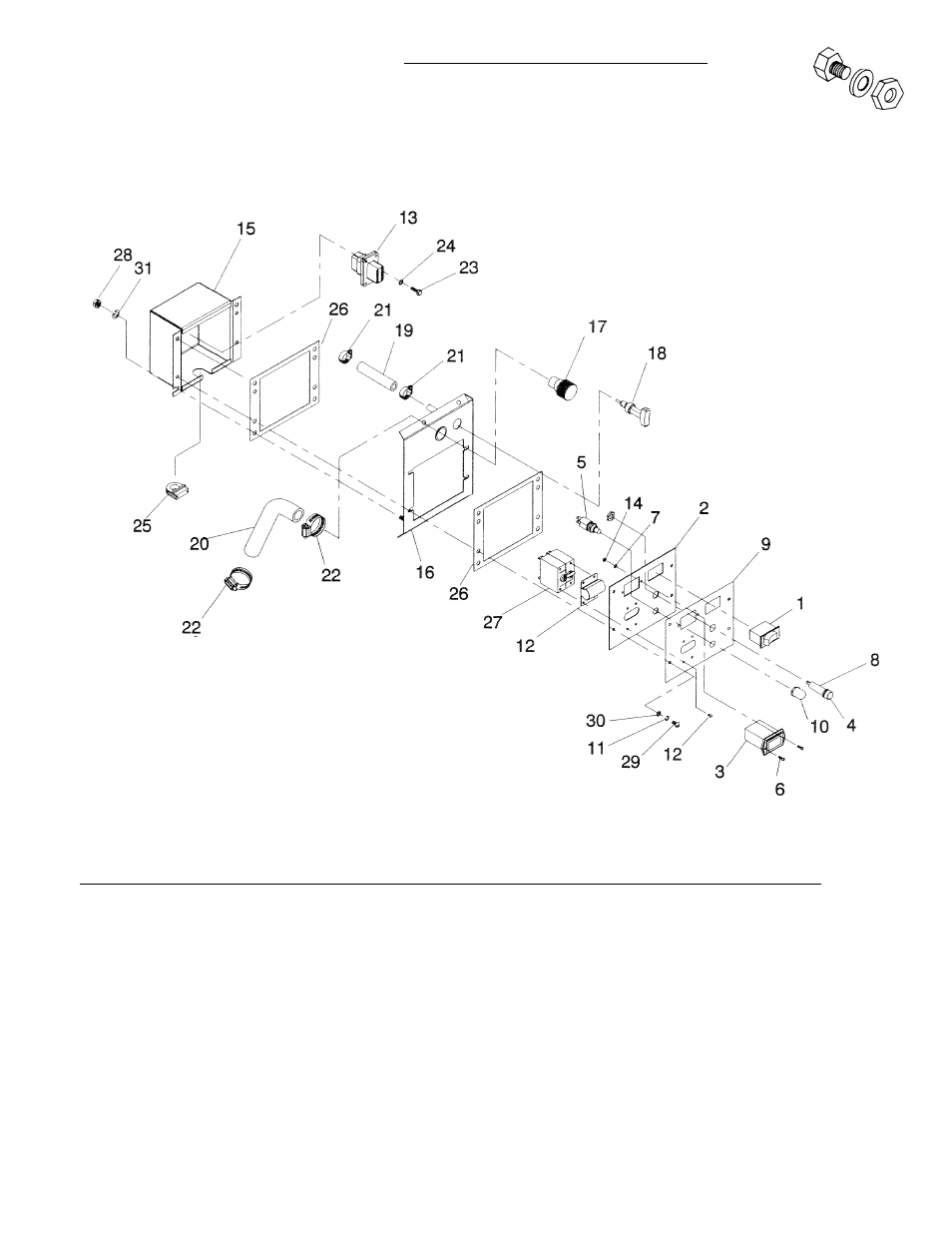

Customer Controls Assembly - Drawing No. 0D2364
EM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
0D2398
1
Start / Stop Switch
17
0C5126
1
Plug, Oil Fill
2
0C4540
1
Cover, Engine Control Box
18
0C3971B
1
Dipstick Assembly
3
0C1457
1
Hour Meter
19
0C4883
1
Hose, Dipstick Tube
4
081904
1
Fuse Holder, SFE-14
20
0C4884
1
Hose, Filler Tube
5
055920
1
Switch, Pushbutton SPST
21
0C7649
2
Hose Clamp 7/8-3/8
6
043181
2
PPHMS M3-0.5X10
22
057824
2
Hose Clamp Size #16
7
022159
2
Lockwasher M3
23
0C3992
4
M4-0.7x16HHCSTaptite
8
055927
1
Fuse, SFE-14
24
022985
4
Washer, Flat #6
9
0C5127
1
Decal
25
084135
1
Grommet
10
0C7341
1
Boot / Nut / Preheat Switch
26
0C6440
2
Gasket, Engine Control Box
11
049226
4
Lockwasher, M5
27
074969
1
Circuit Breaker, 35A, 2 Pole
12
0C7340
1
Boot, Circuit Breaker (with 4 sealing screws)
28
049813
2
Nut, HexM6-1.0
13
0D2021A
1
Harness
29
052749
4
PHMS M5-0.8X12
14
051714
2
Hex Nut, M3
30
038150
4
Flat washer, #8
15
0C4476
1
Box, Engine Control
31
022097
2
Washer, Split Lock 14" - M6
16
0C5096
1
Frame, Control Panel
