Page 27
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
Section
2
- Installation
INSTALLATION
QUIETPACT™
75D
Recreational Vehicle Generator

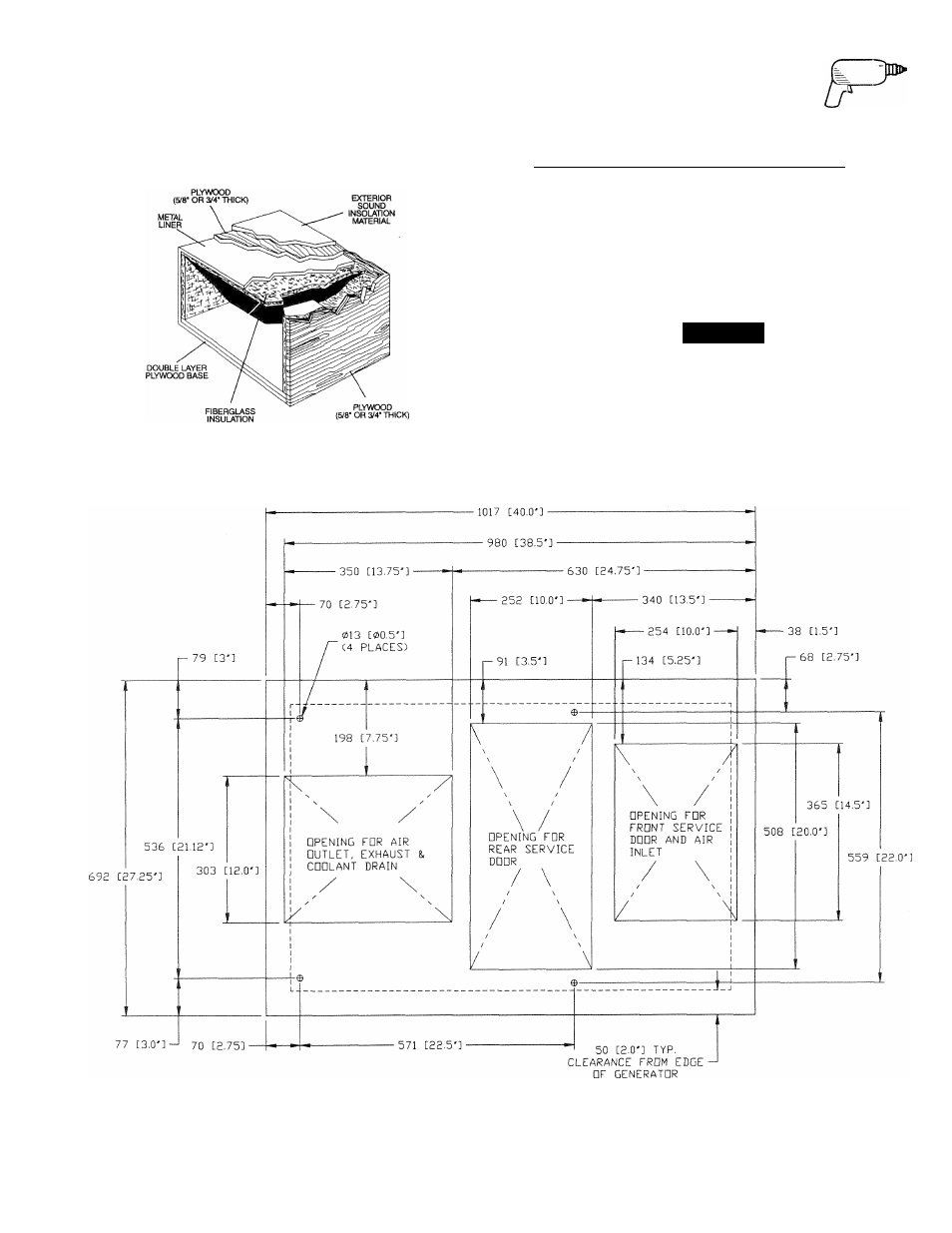

Figure 2.5 - Typical Noise Abatement
• 2.2.4 COMPARTMENT FLOOR CUTOUTS
You must provide openings in the generator compart
ment for the following items (Figure 2.6):
• Engine exhaust and cooling air outlets
• Generator cooling air inlet and front service door
•
Four holes for passage of generator mounting
bolts. See Section 2.1.4 (Page 23)
• Rear service door.
DANGER
Fuel lines and exhaust piping must not pene
trate into the vehicle living area.
Figure 2.6
-
Compartment Floor Cutout
NOTE: FDR A FULL SIZE TEMPLATE, CONTACT GENERAC
SERVICE DEPARTMENT AT: 1-262-544-4811
Generac* Power Systems, Inc. 25
