Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

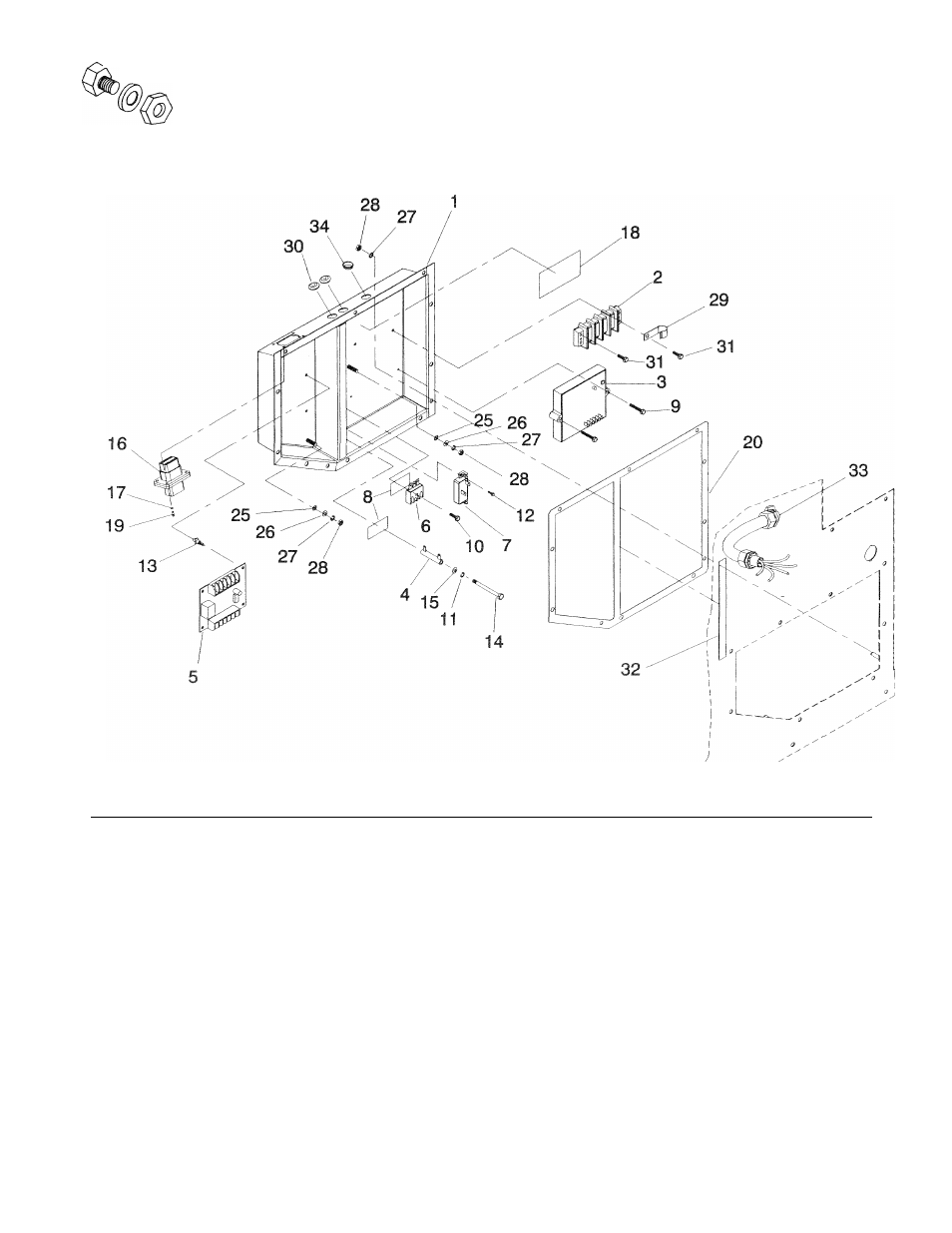

Electflca! Enclosure Assembly - Drawing No. D2361-A
EM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
0D2412
1
Weldment, Electrical Enclosure
20
0C6359
1
Gasket, Electrical Enclosure
2
071914
1
Terminal Block 4 Position
21
0D2021G*
1
Wire Assembly # 32
3
083048
1
Assembly, Potted Regulator
22
0D2021F*
1
Wire Assembly # 22
4
0C7610
1
Resistor 20R 5% 12W
23
0D2021D*
1
Diode Assembly
5
093642
1
Assembly Marine Control Board
24
0D2021E*
1
Wire Assembly # 162
6
065795
1
Rectifier, Battery Charging
25
0A1658
2
V
a
Special Lockwasher
7
048512
1
Circuit Breaker 5 Amp
26
022473
2
Washer, Flat V4-M6
8
027565
A/R
Tape, Glass Insulated
27
022097
7
Washer, Split Lk y4-M6
9
066849C
2
Taptite, M5-0.8 x 30
28
049813
7
Nut, Hex M6-1
10
066849
1
Taptite, M5-0.8 x 16
29
082121A
1
Clamp, Open Type
11
022264
1
Lockwasher M5
30
022717B
2
Grommet
12
036902
2
Screw, PPHM #6-32 X Va
31
051787
2
HHCS, M4-0.7X 16mm
13
040213
4
Pcb Support Snap -In
32
0C7390
1
Gasket, Electrical Enclosure Divider
14
0C8620
1
HHMS, #8-32
X
2.25"
33
0C7487
1
Harness, Ac Output
15
043180
1
Washer, Flat M5
34
023484D
1
Bushing, Snap
16
0D2021B
1
Harness
17
0C3992
4
M4-0.7X 16 HHCS Taptite
A/R = As Required
18
0C7022
1
Decal, Customer Connection
* Not shown refer
to
Wiring Diagram C4946
19
022985
4
Washer, Flat #6
