Appendix 3 — Exploded
Views
and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

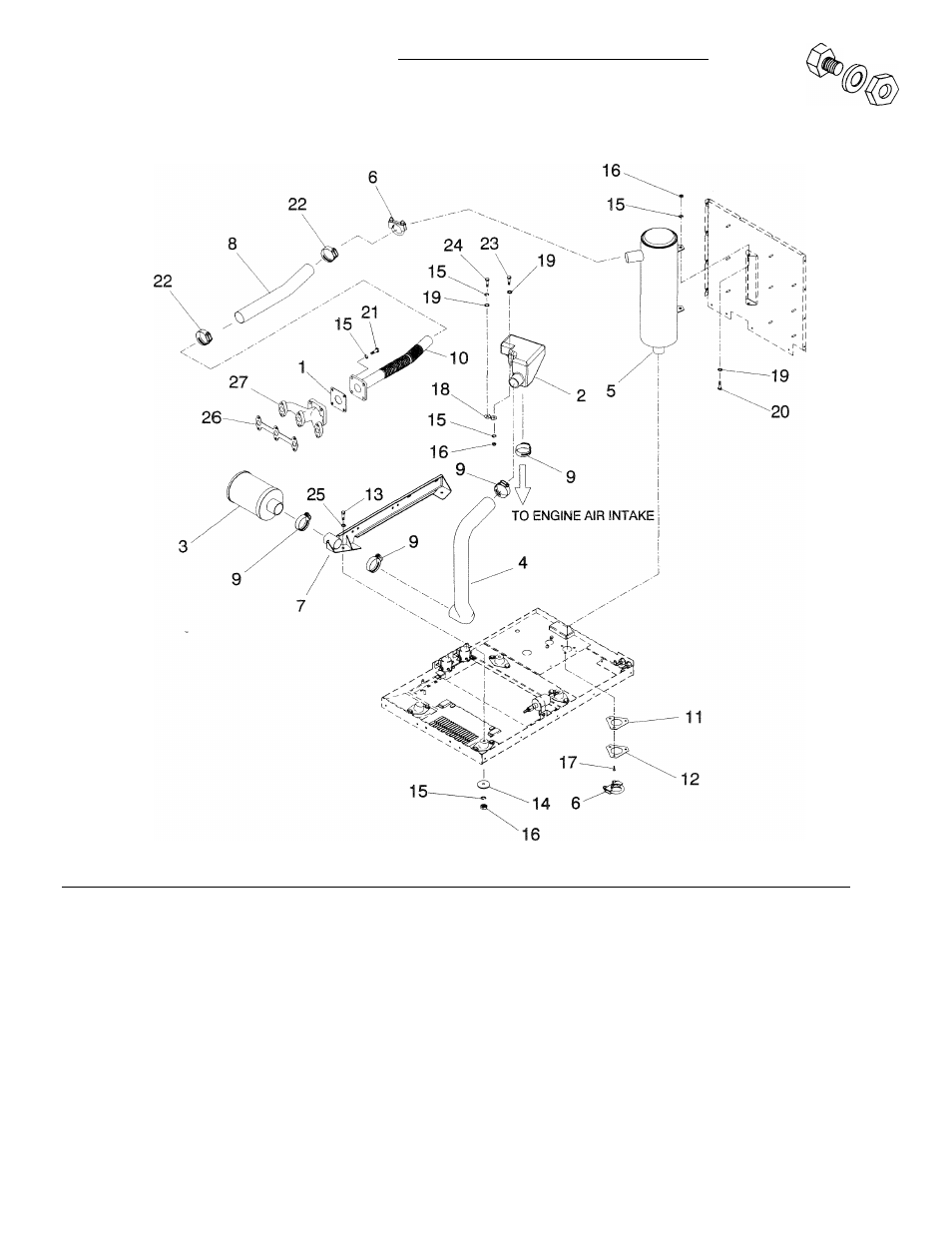

Intake and Exhaust System - Drawing No. 0D2362
.PARTS
LISTS
ITEM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
075674
1
EXHAUST GASKET
15
022129
10
WASHER, SPLIT LK -M8
2
0C4879
1
CHAMBER AIR INTAKE
16
045771
5
NUT. HEX M8-1.25
3
0C4880
1
AIR FILTER
17
058443
3
CRIMPTITE, y4"-20 X 5/8"
4
0C5493
1
HOSE, AIR INLET
18
0C5105
1
BRACKET. SUPPORT
5
0C4727
1
MUFFLER WELDMENT
19
022145
4
WASHER, FLAT - M8
6
025145
2
U BOLT & SADDLE 1.25
20
039253
2
HHCS M8-1.25X20
7
0C7645
1
RAIL, ENGINE LH, WELDMENT
21
043107
4
HHCS M8-1.25X25
8
0C5022
1
INSULATION, EXHAUST
22
035586
2
HOSE CLAMP #20
9
035685
4
HOSE CLAMP #28
23
042909
1
HHCS M8-1.25X30
10
0C4878
1
OUTLET, EXHAUST FLEX
24
042907
1
HHCS M8-1.25X 16
11
0C6243
1
GASKET, EXHAUST OUTLET
25
022145
2
FLAT WASHER, 5/16“
12
0C6244
1
PLATE, EXHAUST OUTLET
26
0709390357
1
MANIFOLD GASKET
13
039288
2
HHCS M8-1.25X55
27
075673
1
HORIZONTAL EXHAUST MANIFOLD
14
071956
2
WASHER, VIBRATION ISOLATOR
