GENERAL
INFORMATION
Section 1 - General Information
QUIETPACT™ 75D Recreational Vehicle Generator
1.1 GENERATOR IDENTIFICATION
Please
record
the
following
information
from
the
generator
DATA
DECAL
or
information
decal,
located below the user control panel.
1. Model Number _________________________ _____ 2. Serial Number ______________ _____________________
3. kW Rating.
Rated Voltage
15
12 3
22

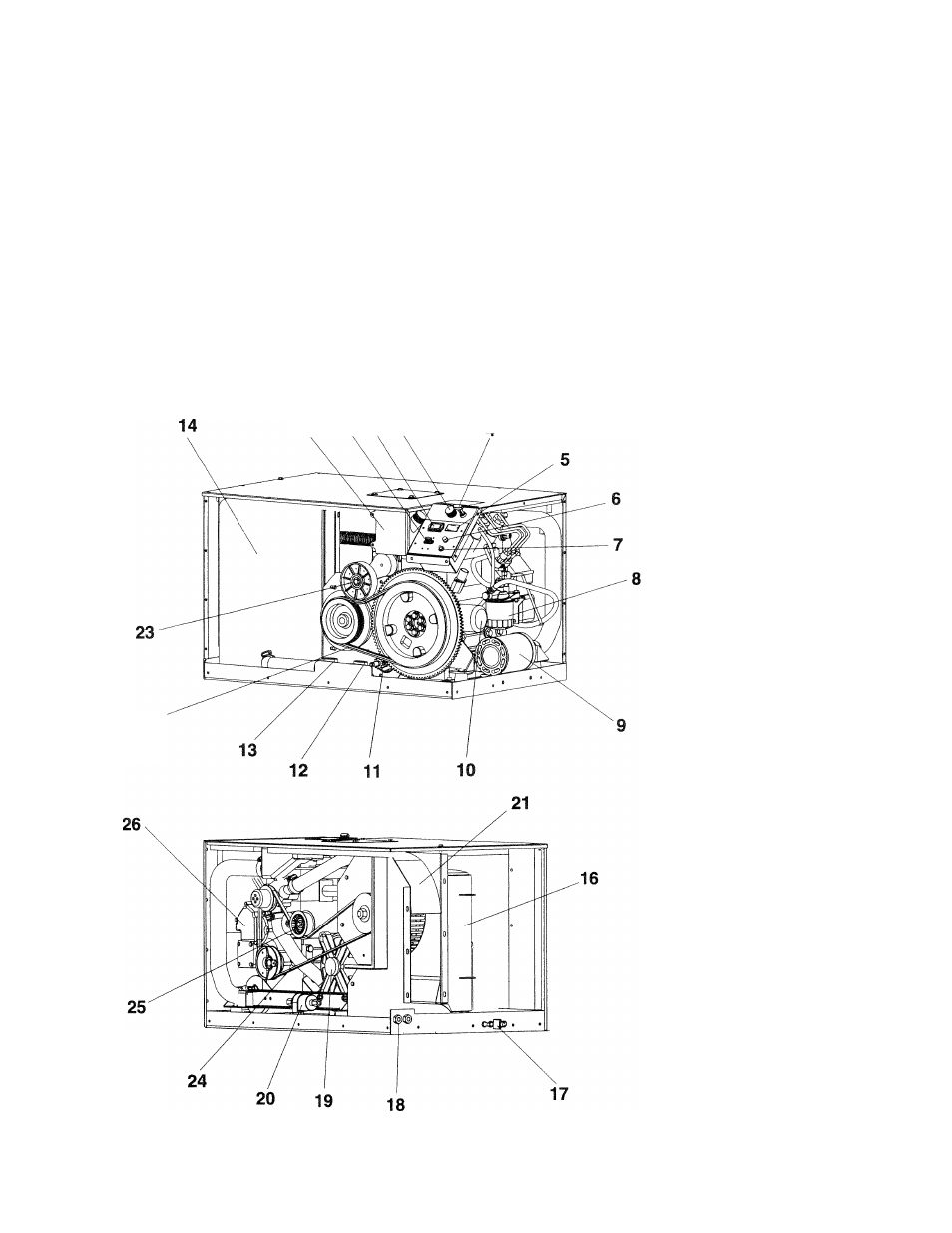

FRONT VIEW
REARVIEW
Model: 04270-0
QUIETPACT“ 75D
1. 2-Pole, 35-amp Circuit
Breaker
2. Hourmeter
3. Oil Fill Opening and Plug
4. Oil Dipstick
5. Engine Start/Stop Switch
6. 14-amp Fuse
7. Engine Preheat Switch
8. Fuel Filter
9. Air Filter
10. Oil Filter
11. Starter Motor
12. Preheat Contactor
13. Starter Contactor
14. Radiator
15. Coolant Recovery Tank
16. Muffler
17. Battery Connections
18. Fuel Connections
19. Alternator
20. Fuel Pump
21. Centrifugal Cooling Fan
and Housing
22. Alternator Drive Belt
23. Alternator Drive Belt
Tensioner
24. Coohng Fan Drive Belt
25. Cooling Fan Drive Belt
Tensioner
26. Engine
