Appendix 3 — Exploded Views and Parts Lists

QUIETPACT™ 75D Recreational Vehicle Generator

1.0

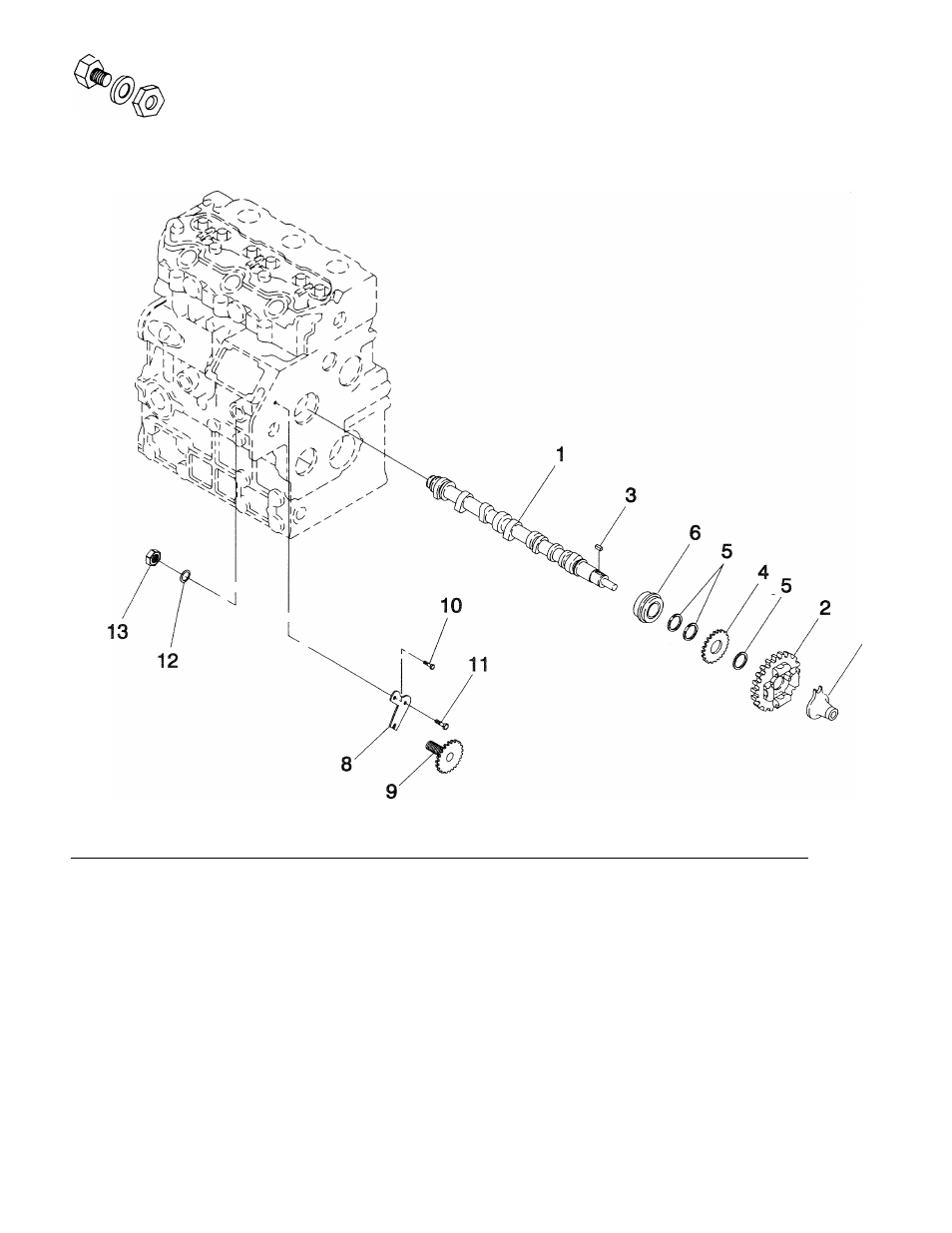

Liter Diesel Camshaft - Drawing No. 075677

ITEM

PART NO.

QTY.

DESCRIPTION

ITEM PART NO.

QTY.

DESCRIPTION

1

0709390232

1

CAMSHAFT ASSEMBLY

8

0709390238

1

PLATE

2

0709390233

1

CAMSHAFT GEAR

9

0709390239

1

TACHOMETER SHAFT

3

0709390195

1

KEY

10

0709390240

1

BOLT

4

0709390234

1

GEAR

11

0709390241

1

BOLT

5

0709390235

3

SPACER

12

0709390242

1

GASKET

6

0709390236

1

BALL BEARING

13

0709390243

1

NUT

7

0709390237

1

SLIDER
