Appendix 3 — Exploded Views and Parts Lists
QUIETPACT“ 75D Recreational Vehicle Generator

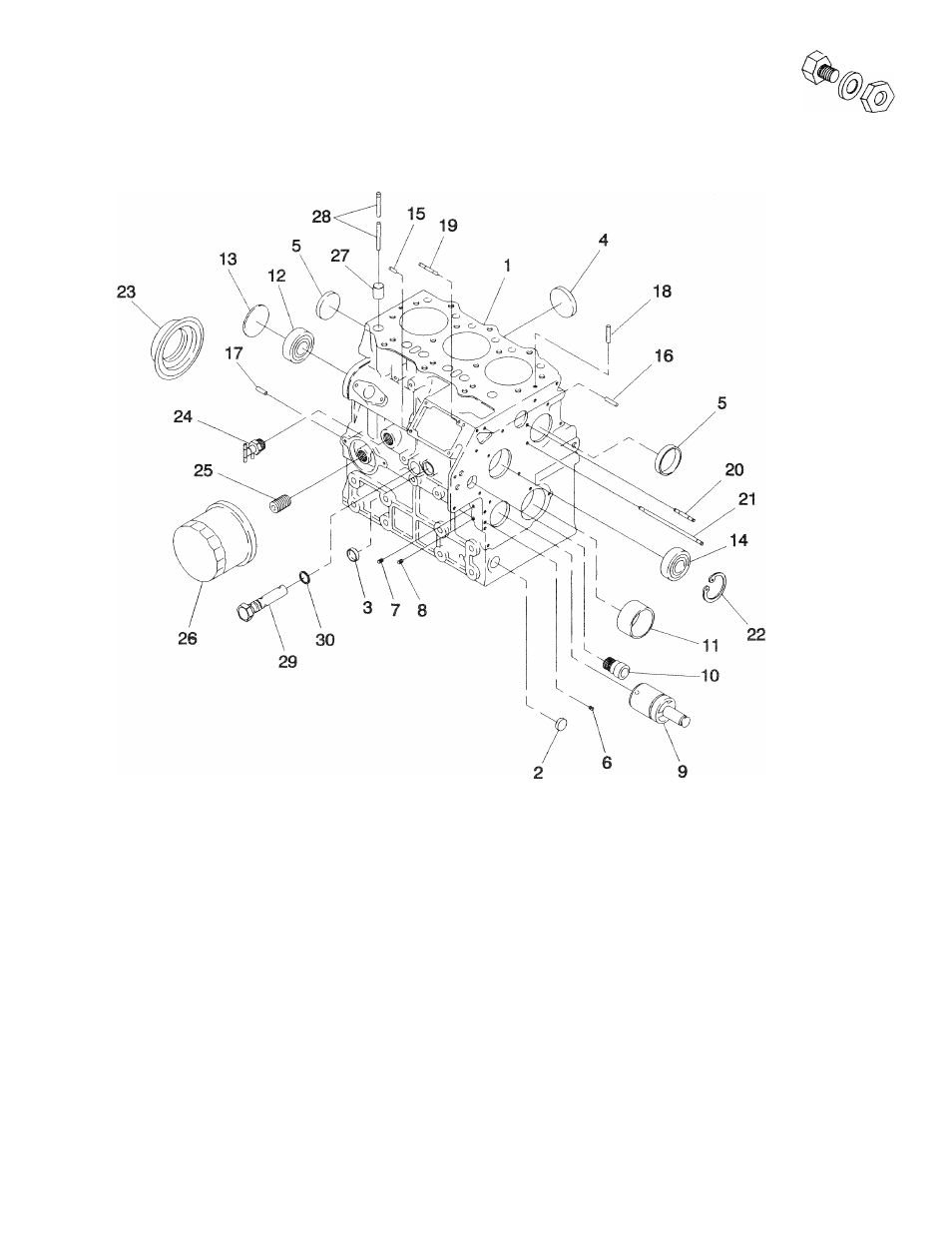

1.0 Liter Diesel Cylinder Block- Drawing No. 075676
.PARTS
LISTS
ITEM PARINO. QTY. DESCRIPTION
ITEM PART NO. QTY. DESCRIPTION
1
0709390100
1
COMPLETE CYLINDER BLOCK
17
0709390117
2
DOWEL PIN
2
0709390447
1
EXPANSION PLUG
18
0709390118
2
SPRING PIN
3
0709390101
1
EXPANSION PLUG
19
0709390119
2
STUD
4
0709390102
2
EXPANSION PLUG
20
0709390120
1
STUD
5
0709390103
2
EXPANSION PLUG
21
0709390121
1
STUD
6
0709390104
1
EXPANSION PLUG
22
0709390131
1
SNAP RING
7
0709390105
4
PLUG
23
0709390123
1
OIL SEAL
8
0709390106
4
PLUG
24
0709390124
1
DRAIN COCK
9
0709390107
1
IDLE GEAR SHAFT
25
0709390125
1
CONNECTOR
10
0709390108
1
BUSHING
26
0709390126
1
OIL FILTER
11
0709390109
1
BUSHING-STANDARD
27
0709390127
6
TAPPET
0709390110
1
0.25MM
U.S.
BUSHING
28
0709390128
6
PUSH ROD
0709390111
1
0.50MM U.S. BUSHING
29
0709390129
1
RELIEF VALVE
12
0709390112
1
BALL BEARING
30
0709390130
1
0-RING
13
0709390113
1
EXPANSION PLUG
14
0709390114
1
BALL BEARING
MM = MILLIMETER
15
0709390115
1
DOWEL PIN
U.S. = UNDERSIZE
16
0709390116
1
DOWEL PIN
