PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.242502

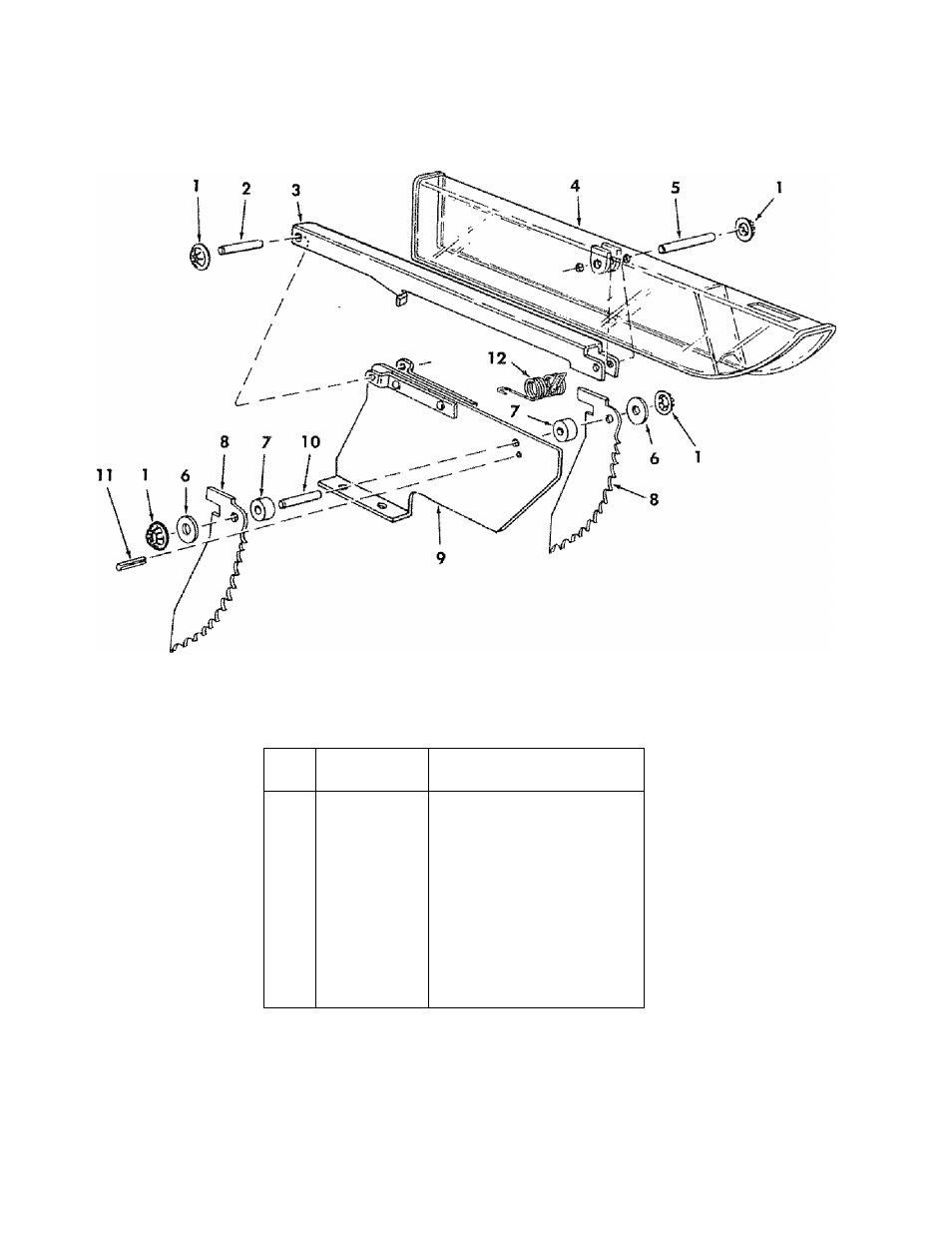

FIGURE 7 - 62594 GUARD ASSEMBLY
Key
No.
Part
No.
Description
62594
Guard Assembly, Saw
1
60297
Nut, Push
2
62391
Pin 1/4 X 1-1/2"
3
62395
Support, Guard
4
62389
Guard, Saw
5
62390
Pin, 1/4 X 1-3/4"
6
STD 551025
‘Washer, 17/64 x 5/8 x 1/16"
7
62520
Spacer, Pawl
8
62396
Pawl
9
62S95
Spreader, Assembly Blade
Ш
62410
Pin. 1/4 X 1"
11
STD 571810
*Pin, Roll, 3/16 X 15/16"
12
62519
Spring, Pawl
