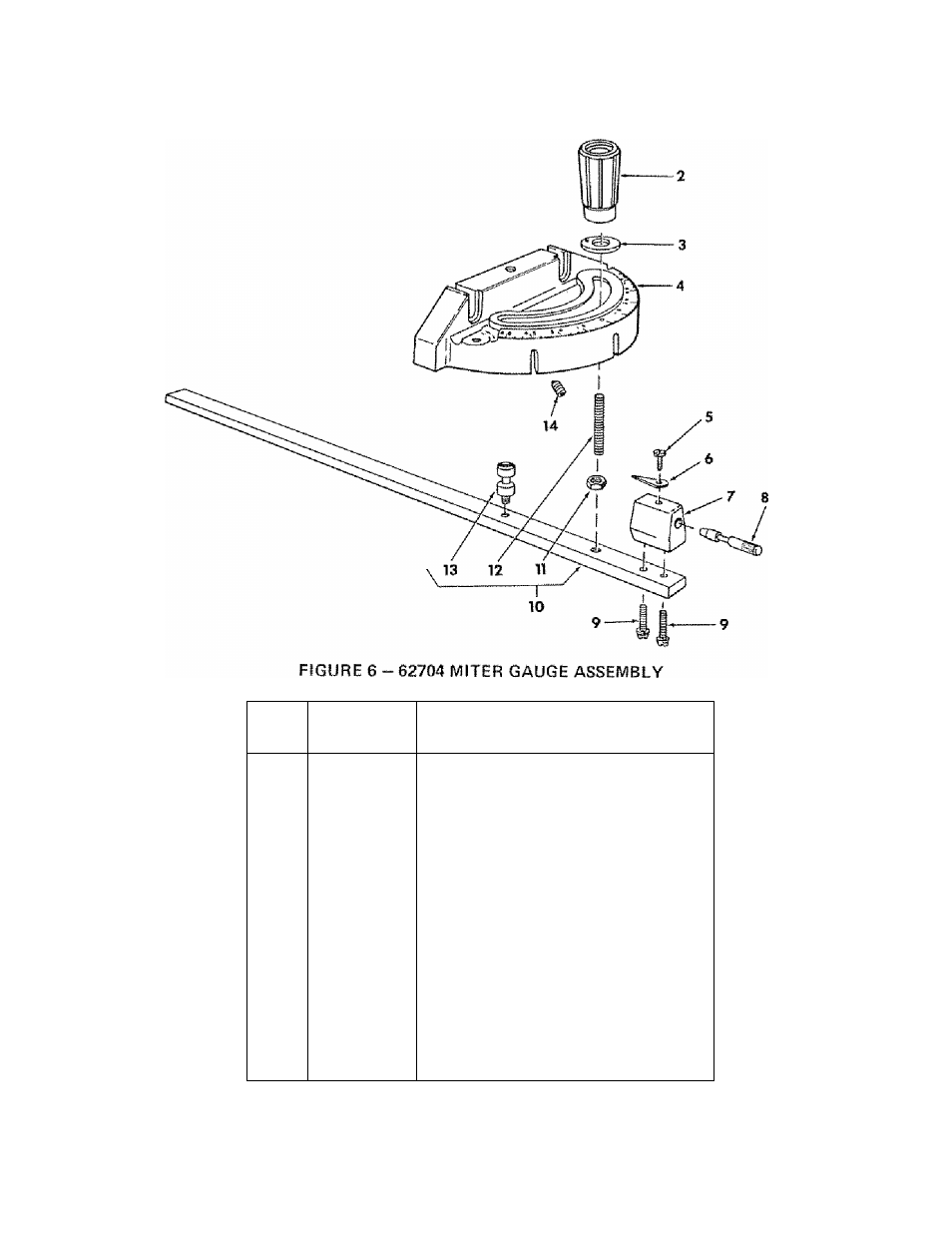

PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.242502
Key
No.
Part
No.
Description
-
62704
+Gauge Assembly, Miter
1
62693
Plug, Button
2
62692
Knob, Miter Gauge (Includes Key No. I)
3
STD 551031
‘Washer, Plain, 21/64 x 1 x 1/16"
4
37893
Gauge, Miter
5
STD 510803
‘Screw, Pan Hd. 8-32 x 5/16"
6
135
Indicator
7
37895
Block, Miter Gauge Irrdicator
8
3789S
Pin. Miter Gauge Stop
9
9417295
“Screw, Pan Hd,, w/Lockwasher,
8-32 X 5/8"
1 0
62230
Rod Assembly, Miter Gauge,
Consisting of Items
1 1
, 12, 13
1 1
STD 541231
“Nut, Hex.. 5/16-18
1 2
52225
Stud, Clamp
13
B2383
Stud, Pivot
14
60288
Screw, Locking Set, 1/4-20 x 3/8"
‘Standard Hardware item May be Purchased Locally.
+Stock item — May be secured through the Hardware Departments of
most Sears Retail Stores or Catalog Order Houses
