PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.242502
SEf WIRING DIAGRAM, PAGE 5

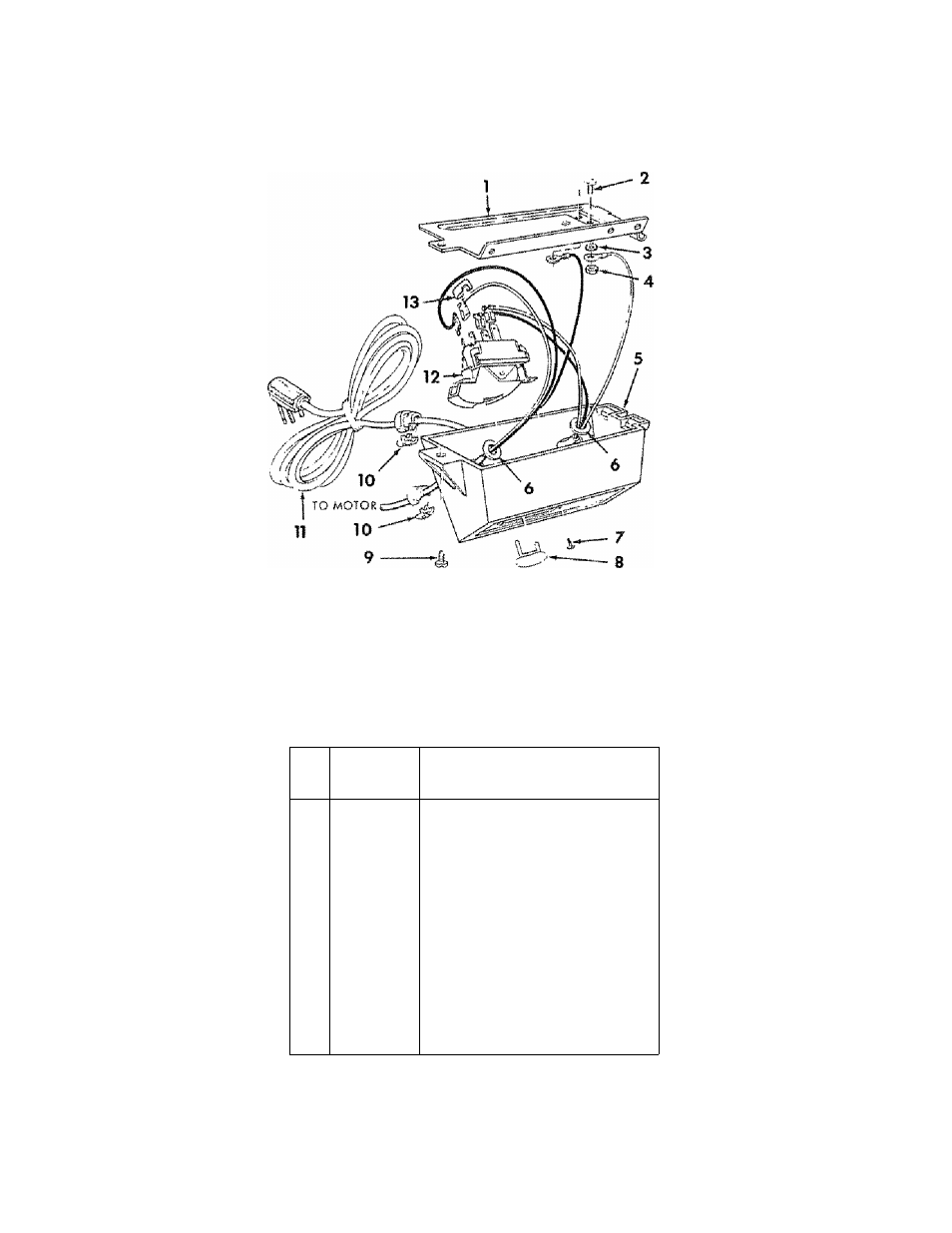

FIGURE 5 - SWITCH ASSEMBLY
Key
No.
Part
No,
Description
1
62466
Bracket. Housing
2
STD 601103
Screw, Type 23. 10-32 x 3/8",
Pan Hd
3
STD 551210
Lockwasher, External No 10
4
STD 541110
Nut, Hex . 10-32 X 3/8 X 1/8"
5
62500
Box, Switch
6
37838
Washer, 5/8 x 7/8 x 1/64"
7
60287
Screw, Nylon, 6-32 x 5/16"
8
60256
Key
9
STD 611005
Screw, Type B No 10 x 1/2"
1 0
37818
Relief, Strain
1 1
62613
Cord with Plug
1 2
60267
Switch
13
63467
Cap, Insulator
