PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.242502
!0 IT

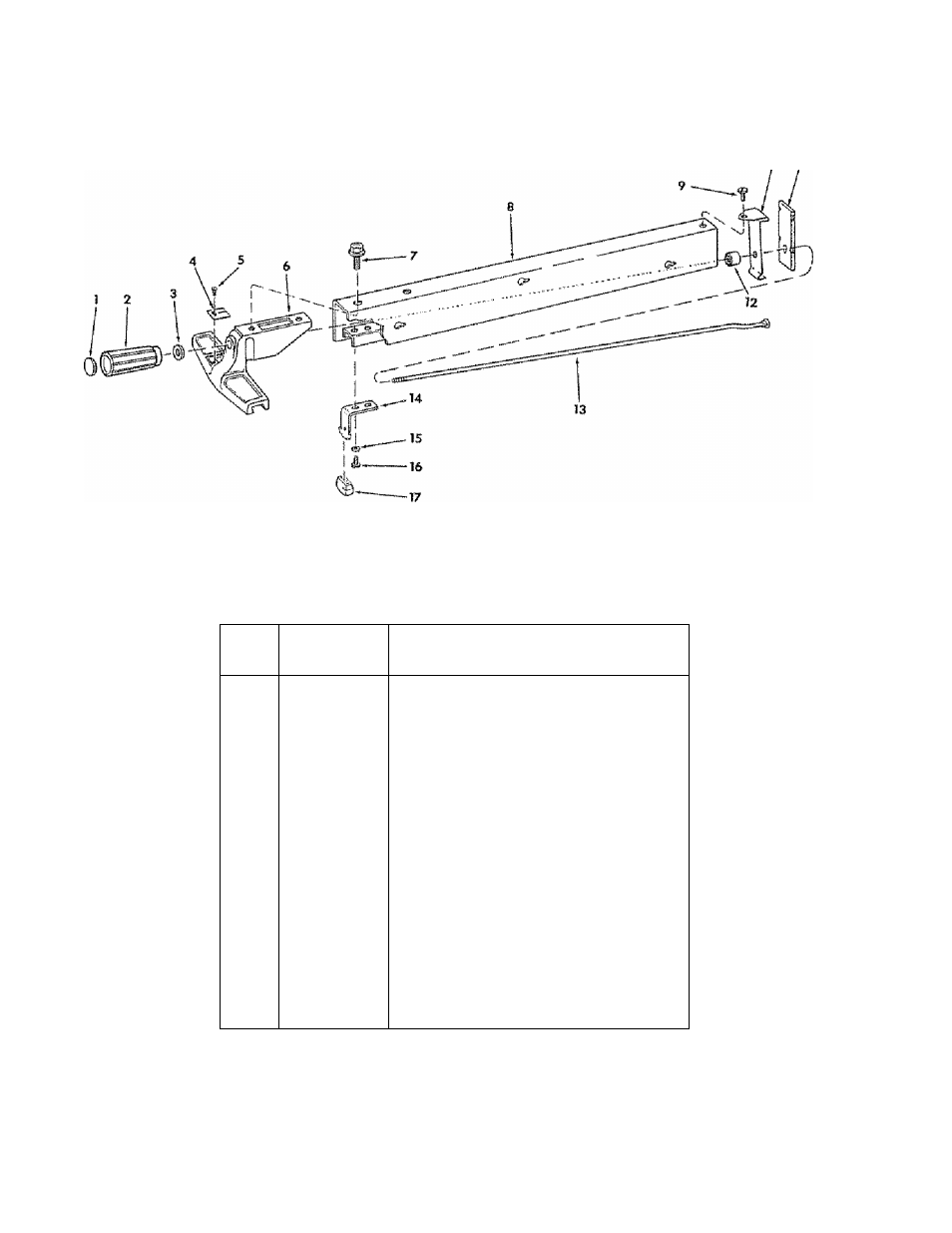

FIGURE 3 - 62773 FENCE ASSEMBLY
Key
Wo
Part
No
Description
62773
Fence Assembly, Rip
1
52693
Plug, Button
2
62692
Knob {Includes Key No. 1)
3
STD 5S1031
* Washer, 21/64 x 1/2 x 1/32
4
62775
indicator. Fence
5
9404336
“Screw, Pan Hd- Type "T" 4-40 x 1/4
6
62774
Head, Fence
7
423350
Screws, Sems 3/8-16 x 1/2
8
62582
Channel, Fence
9
STD 600805
“Screw, Pan Hd, Type "T" 8-32 x 1/2
1 0
62528
Spring, Fence Lock
1 1
62529
Lock, Rear Fence
1 2
S2531
Roller, Rear Fence
13
62583
Rod, Fence Lock
14
62533
Spring, Head Alignment (Includes #17)
IS
STD 551210
‘Lockwasher, External No. 10
16
STD B11005
“Screw, Pan Hd Type "A" No. 10 x 1/2
17
62532
Pad, Alignment
■"Standarcl Hardware Item - May be Purchased Locally.
