Setting the Table for Horizontal or
Bevel Cutting

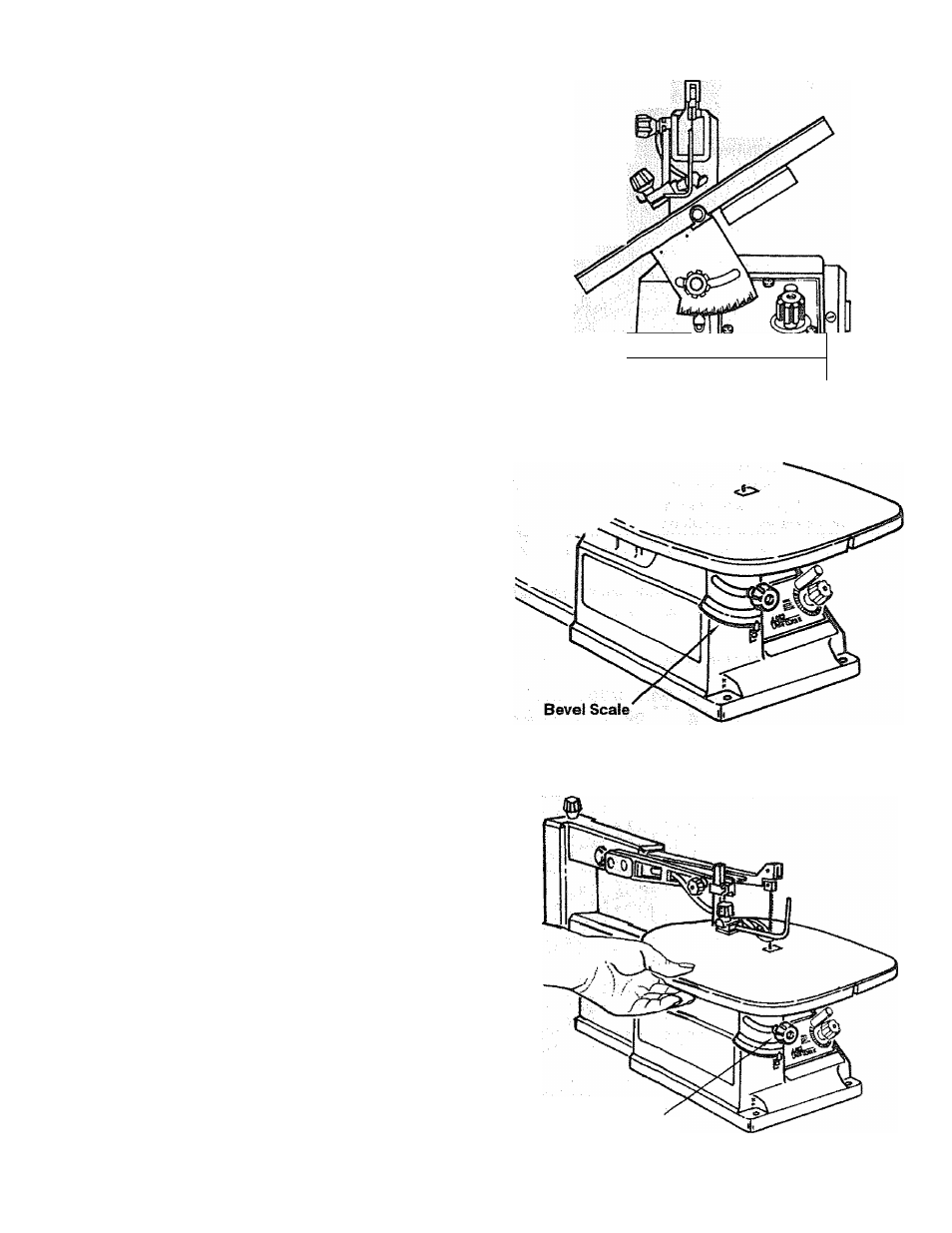

1.The scroll
savj
work table can be tilted to the left for
bevel cutting up to 45" from the 0° or horizontal cutting
position.
.......
r~
--------f—jl
2^A bevél scale is provided under the work tablé as a
convenient reference for setting the approximate table
angle for bevel cutting.
When greater precision is required, make practice cuts
and adjust the table as necessary for your require
ments.
1b Allgrt the Bével thbibbtbr
1. Loosen the table bevel lock knob and move the table
until it is approximately perpendicular, or at a right
ahdie. to the blade.
Bevel
Lock Knob
