Motors SpemfiGatiom and BBGtricat^
For replacement motor and control board, refer to parts
list in this manual.
Connecting To Power Supply Outlet
If power cord is worn or cut, or damaged in any way,
have it replaced immediately.
WARNING: If not properly grounded, this power tool
can cause an electrical shock, particularly when
used in damp locations close to plumbing. If an
electrical shock occurs there is potential of a sec­
ondary hazard, such as your hands contacting the
saw blade.

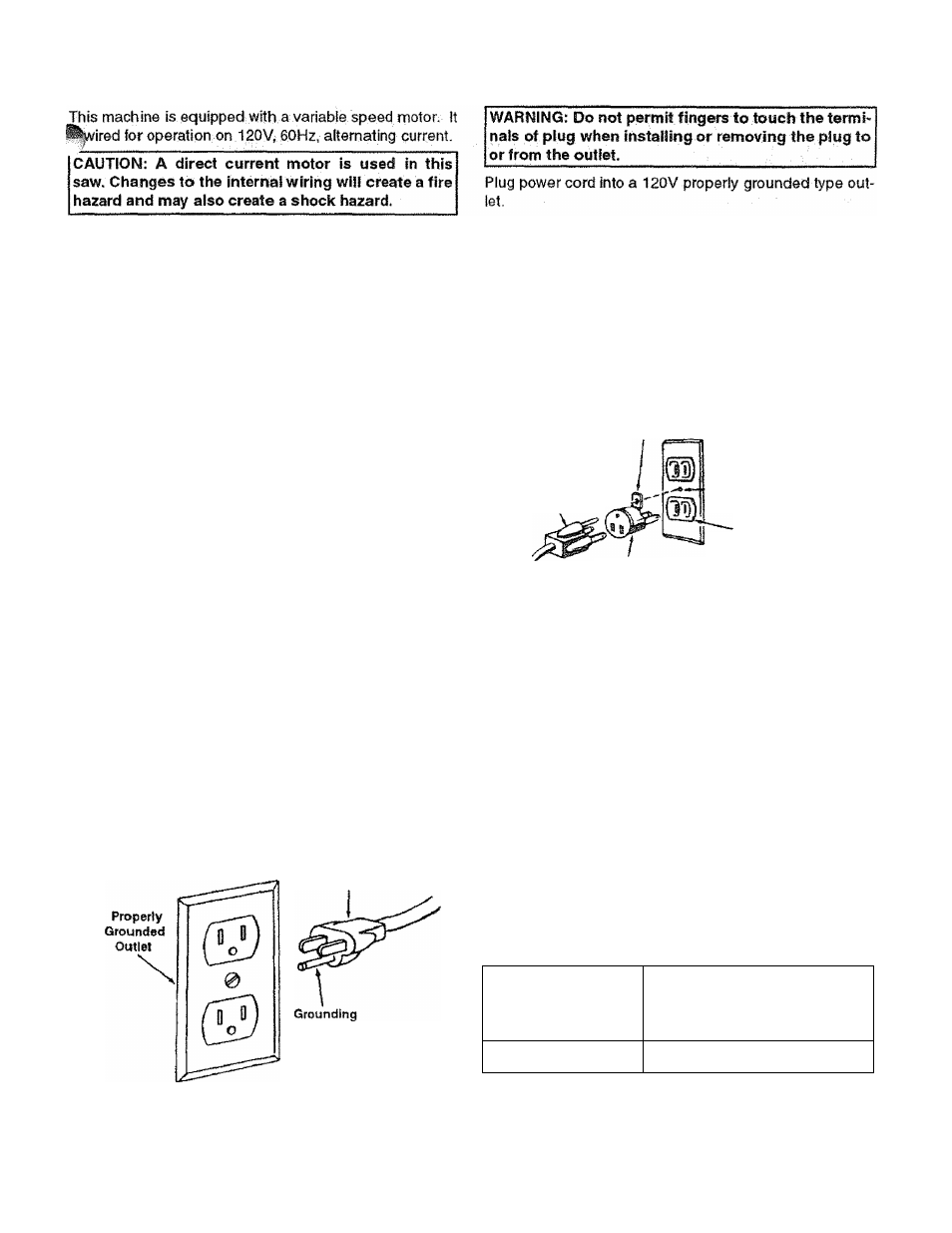

If you are not sure that your outlet, as pictured below, is
property grounded, have it checked by a qualified electri­
cian.
Your unit is for use on 120 volts and has a plug that looks
like the illustration below.
This power tool is equipped with a 3-conductor cord and
pounding type plug which has a grounding prong
^proved by Underwriters' Laboratories. The ground
conductor has a green jacket and is attached to the tool
housing at one end and to the ground prong in the attach­
ment plug at the other end.
This plug requires a mating 3-conductor grounded type
outlet as shown.
3-Prong
Plug
Prong
If the outlet you are planning to use for the power toot is
of the 2-prong type, Do Not Remove Or Alter The
Grounding Prong In Any Manner. Use an adapter as
shown below and always connect the grounding fug to
known ground.
It is recommended that you have a qualified electrician
replace the TWO prong outlet with a properly grounded
THREE prong outlet.
Grounding Lug
3-Prong lii^
Plug i
Make Sure This Is
Connected to a
known Ground
2-Prong
Receptacle
Adapter
An adapter, as illustrated, is available for connecting
plugs to 2-prong receptacles.
WARNING: The green grounding lug extending from
the adapter must be connected to a permanent
ground such as to a properly grounded outlet box.
Not ail outlet boxes are properly grounded.
If you are not sure that your outlet box is properly
grounded, have it checked by a qualified electrician.
NOTE; The adapter illustrated is for use only if you
already have a properly grounded 2-prong receptacle.
The use of any extension cord wilt cause some loss ol
power.
Use only 3-wire extension cords which have 3-prorig
grounding type plugs and 3-prong receptacles which
accept the tools plug.
Length of the
Conductor
Wire Sizes Required
(American Wire Gauge
Number) 120V Lines
Up to 100 feet No. 16
