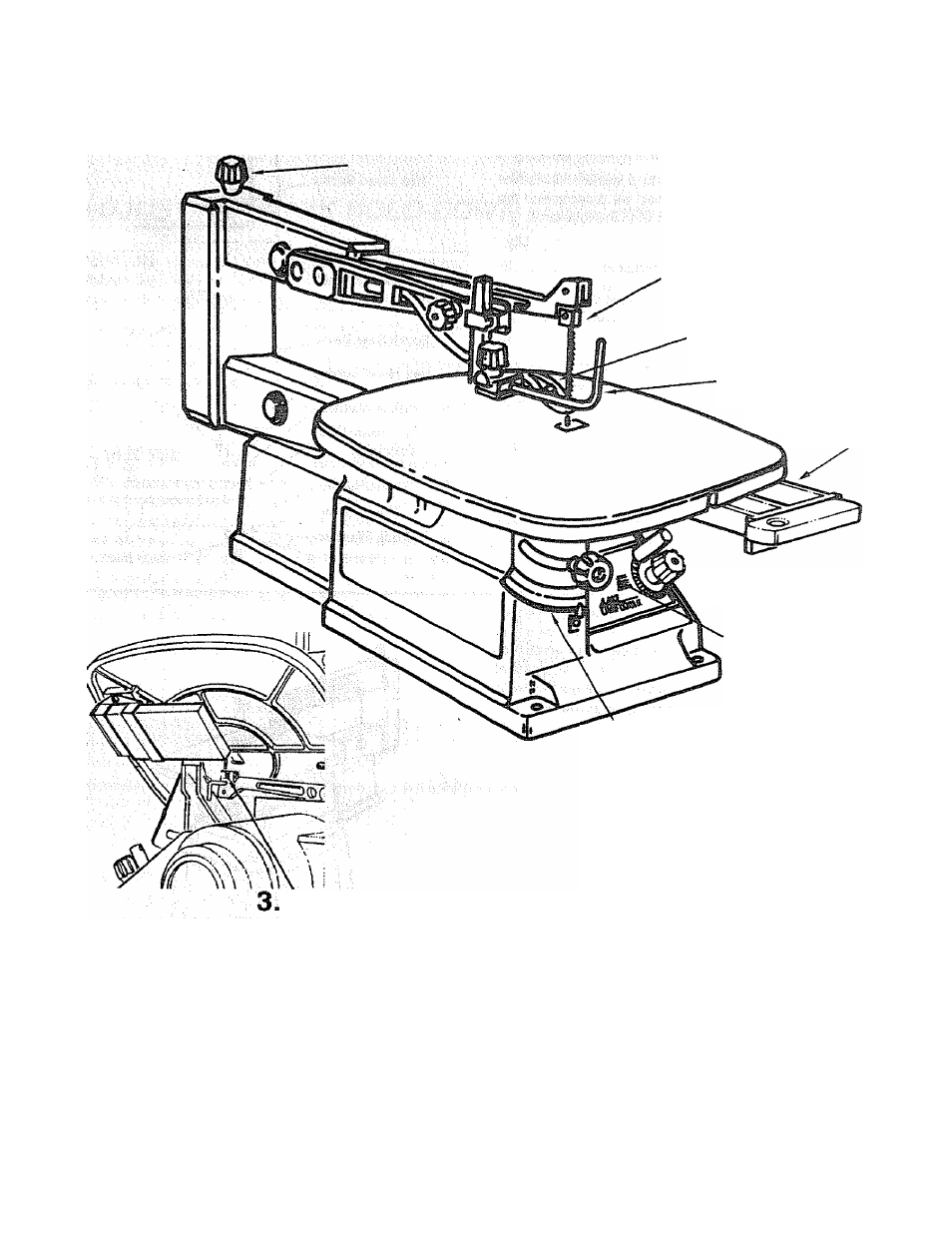

Getting to Know Your Scroll

1. Tension Knob

3. Upper Blade Holder

2« Work Hold-Down

and Blade Support

Blade Guard

Blade Storage

Drawer

"'■'■"----.ß^peed

Control/

On-Off Knote

4. Bevel Lock Knob

5. Bevel Scale

Lower Blade Holder

1. Tension Knob ... Tightening the knob (clockwise) will

increase the tension on the blade. Loosening it (coun

terclockwise) will decrease the tension.

2. Work Hold-Down and Blade Support ... Provides

added control of work-piece, protection for operator

and support for the blade;

3. Blade Holders ... Retain and position the blade.

4. Bevel Lock Knob ... Loosening knob allows the table

to tilt up to 45" for bevel cuts.

5. Bevel Scale ... Shows angle table is tilted for bevel

cutting.

6. Speed Control/On-Off Knob ... For speed control set

ting, refer to the “Choice of Blade and Speed” table.
The On-Off knob has a locking feature, This Feature
is Intended To Help Prevent Unauthorized Use By
Children And Others.

7. Blade Guard ... Defines area of moving blade.

8. Blade Storage Drawer ... Used to store blades, “T

handle wrench, and “L” shaped rod.
