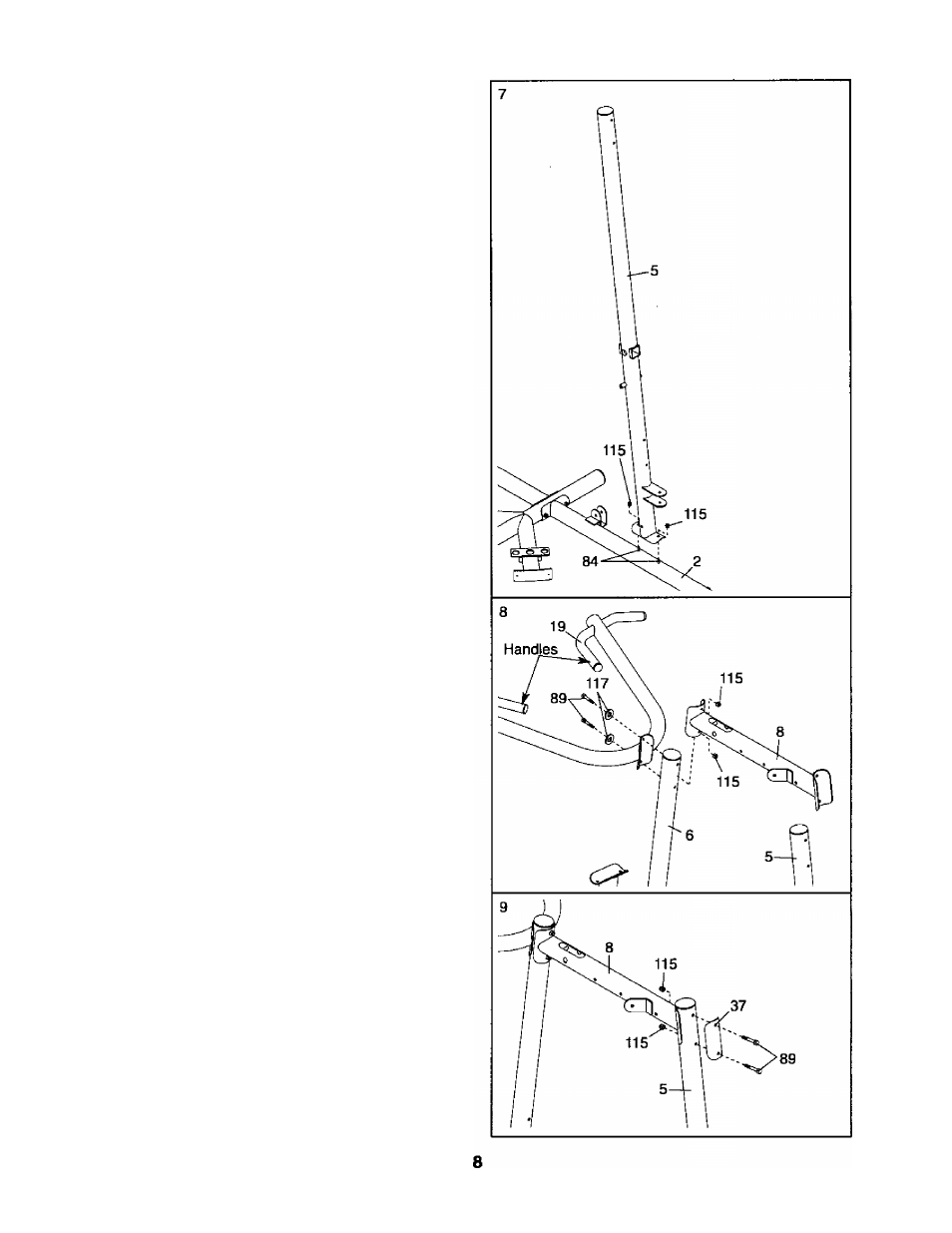

7 . Attach the Left Upright (5) to the Left Base (2)
with the two indicated M8 x 75mm Carriage Boits
(84) and two M8 Nylon Locknuts (115).
Do not
tighten the Locknuts yet.
8
. Hold the Left Top Frame (8) between the Left
Upright (5) and the Rear Upright (6). Attach the
Pull-up Arm (19) and the Left Top Frame to the
Rear Upright with two M8 x 83mm Bolts (89), two
M8 Washers (117), and two M8 Nylon Locknuts
(115).
Make sure the indicated handles point
up. Do not tighten the Locknuts yet.
9. Attach the Left Top Frame (8) to the Left Upright
(5) with two M8 X 83mm Bolts (89), the Left
Upright Plate (37), and two M8 Nylon Locknuts
(115). Note: The Left Upright Plate is wider
than the Rear Plate (not shown). Do not tight­
en the Locknuts yet.
