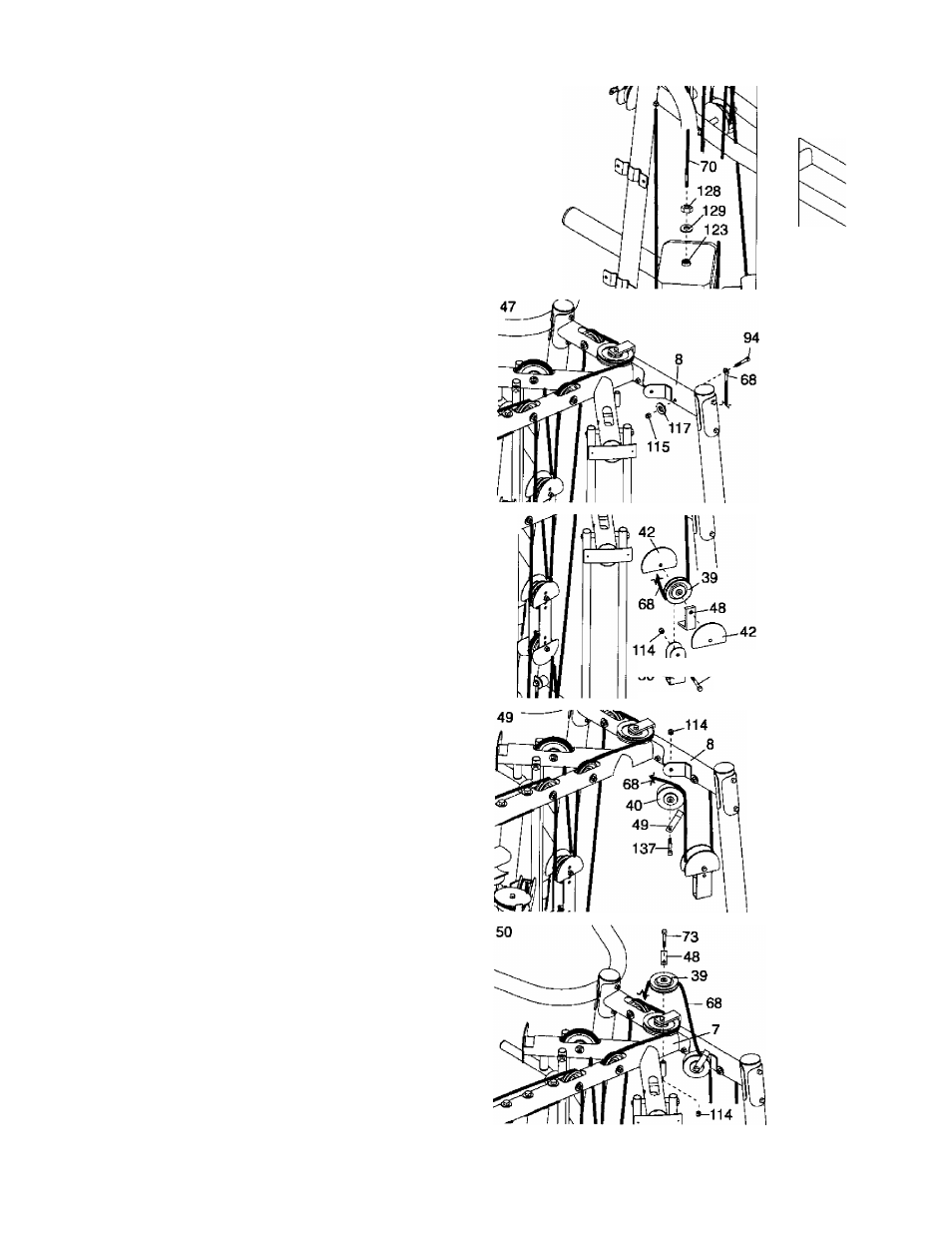

46. Set an M12 Washer (129) on top of the Short
Weight Tube (123). Thread an M12 Nut (128) all
the way onto the Leg Lever Cable (70).
Thread the Leg Lever Cable (70) into the Short
Weight Tube (123). Tighten the M12 Nut (128)
against the M12 Washer (129).
47. Locate the Right Stack Cable (68). Attach the
Cable to the Left Top Frame (8) with an M8 x
80mm Bolt (94), an M8 Washer (117), and an M8
Nylon Locknut (115).
48. Wrap the Right Stack Cable (68) under a 90mm
Pulley (39). Attach the Pulley, a Small Cable Trap
(48), and two Half Finger Guards (42) to the
upper hole in the indicated “U"-bracket (50) with
an Ml0 X 52mm Bolt (102) and an M10 Nylon
Locknut (114).
Make sure the Cable Trap and
Finger Guards are oriented as shown.
49. Wrap the Right Stack Cable (68) over a “NT-pulley
(40). Attach the “V"-pulley and a Cable Trap (49)
to the Left Top Frame (8) with an M10 x 55mm
Bolt (137) and an M10 Nylon Locknut (114).
Make sure the Cable Trap is oriented to hold
the Cable in the groove of the Pulley.
50. Wrap the Right Stack Cable (68) around a 90mm
Pulley (39). Attach the Pulley and a Small Cable
Trap (48) to the Right Top Frame (7) with an M10
X 110mm Bolt (73) and an M10 Nylon Locknut
(114).
