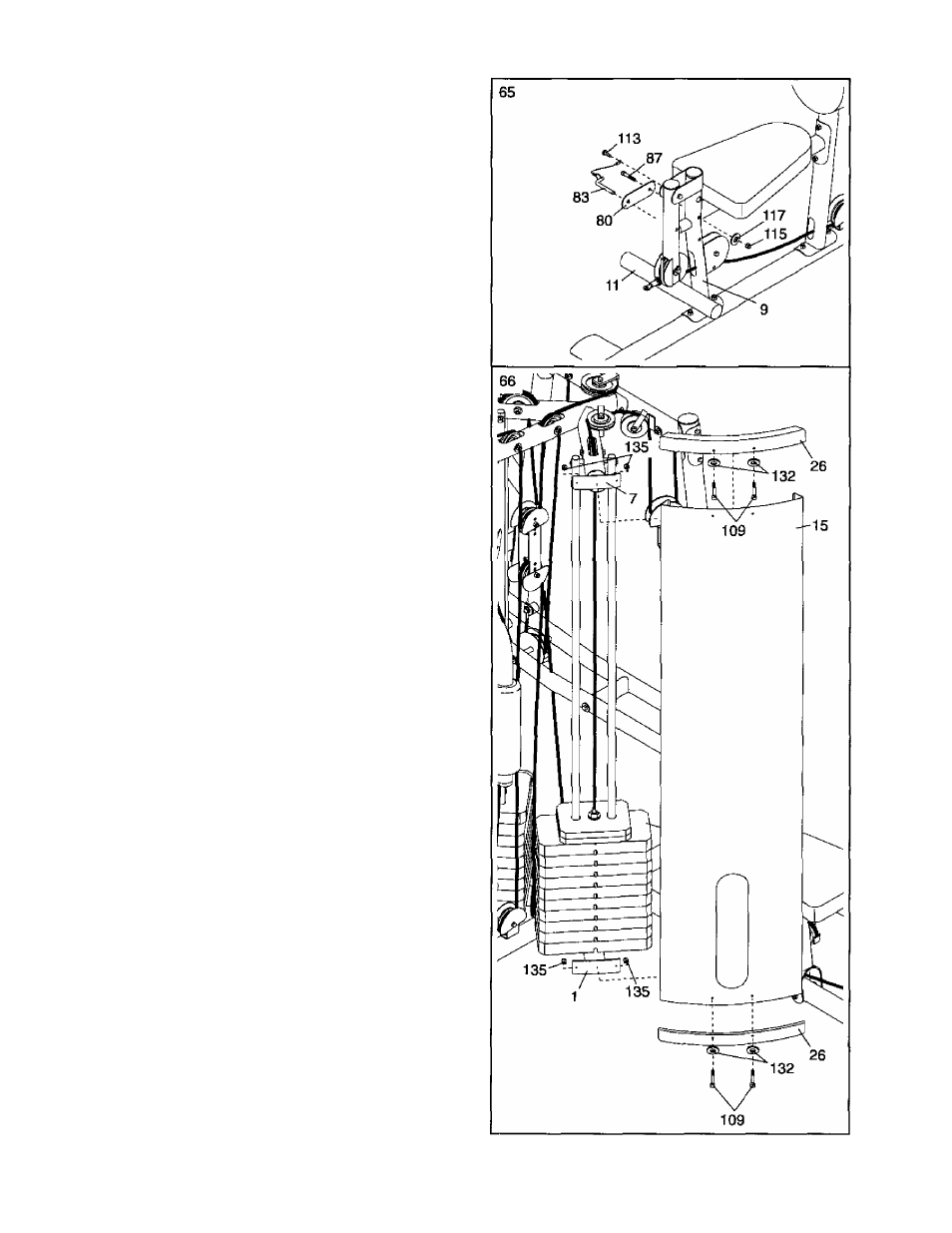

65. Attach the Lock Plate (80) to the Right Seat

Frame (9) with an M8 x 69mm Shoulder Bolt (87),
an M8 Washer (117), and an M8 Nylon Locknut

(115). Do not overtighten the Locknut; the

Lock Plate must be able to pivot easily.

Attach the Leg Pin (83) to the Right Seat Frame

(9) with an M4 x 16mm Self-tapping Screw (113).
Insert the Leg Pin through the Lock Plate (80)

and the Leg Lever (11).

66. Press the two Shroud Covers (26) onto the Front

Shroud (15), which has a taller opening than the
Rear Shroud (not shown). Attach the Shroud to

the Right Top Frame (7) and the Right Base (1)
with four M6 X 22mm Bolts (109), four M6
Washers (132), and four M6 Nylon Locknuts

(135).

Be careful not to scratch yourself when

reaching through the hole in the Shroud.

Repeat this step with the Rear Shroud (not

shown).
