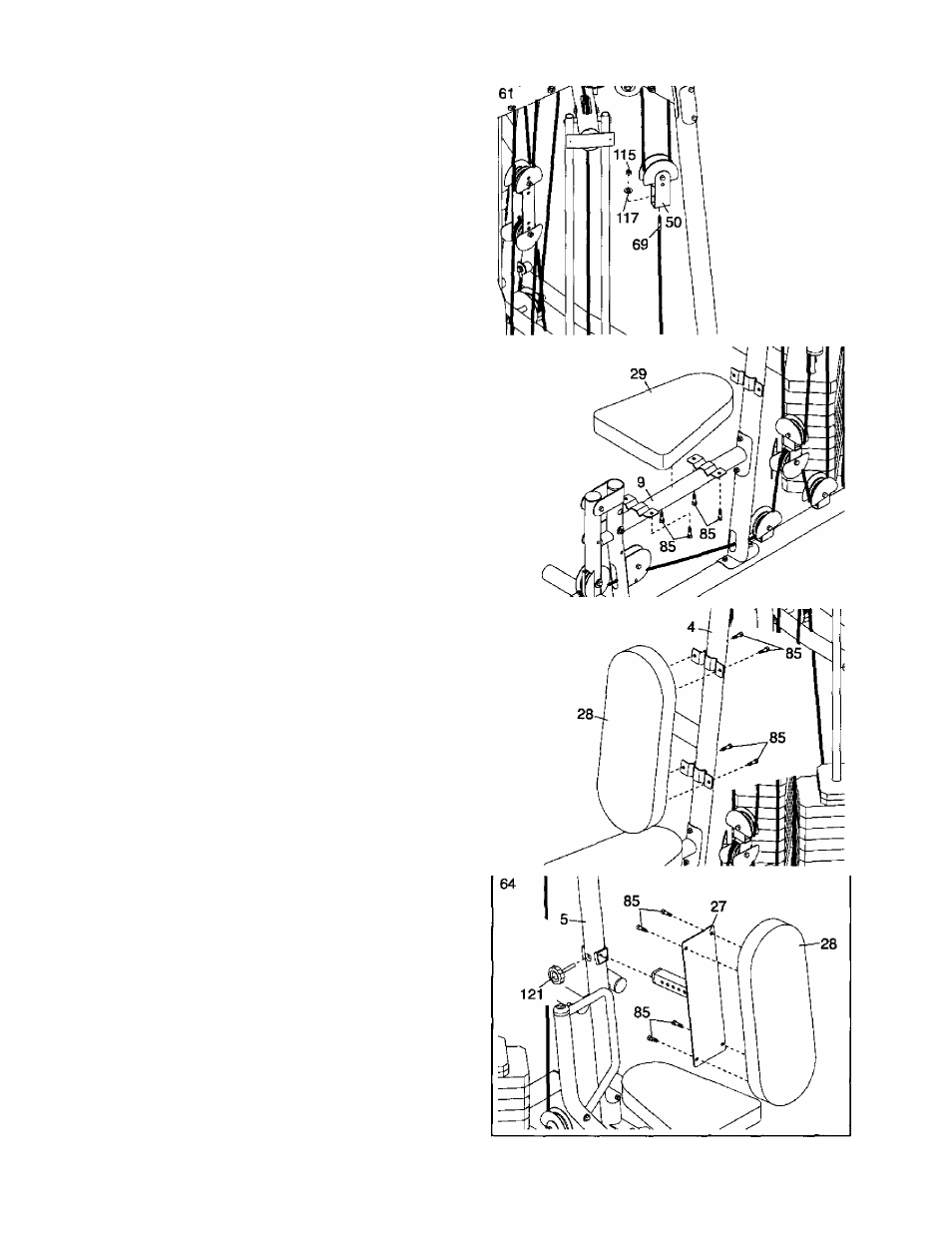

61. Attach the end of the Leg Press Cable (69) to the
“□"-bracket (50) with an MS Washer (117) and an
MS Nylon Locknut (115).
Note: Do not complete­
ly tighten the Locknut; It should be tightened
so that oniy two threads of the Cable show
past the Locknut, as shown in the inset draw­
ing.
Seat Assembly
62. Attach the Seat (29) with the serial number decal
on the bottom to the Right Seat Frame (9) with
four M6 X 16mm Screws (85).
Repeat this step with the other Seat (29) and
the Left Seat Frame (not shown).
63. Attach a Backrest (28) to the Right Upright (4)
with four M6 X 16mm Screws (85).
64. Attach a Backrest (28) to the Backrest Frame (27)
with four M6 X 16mm Screws (85).
Slide the Backrest Frame (27) into the Left
Upright (5). Engage the Knob (121) into the
Upright and Backrest Frame, and turn it clockwise
until it is tight.
.,50
115
62
63
21
