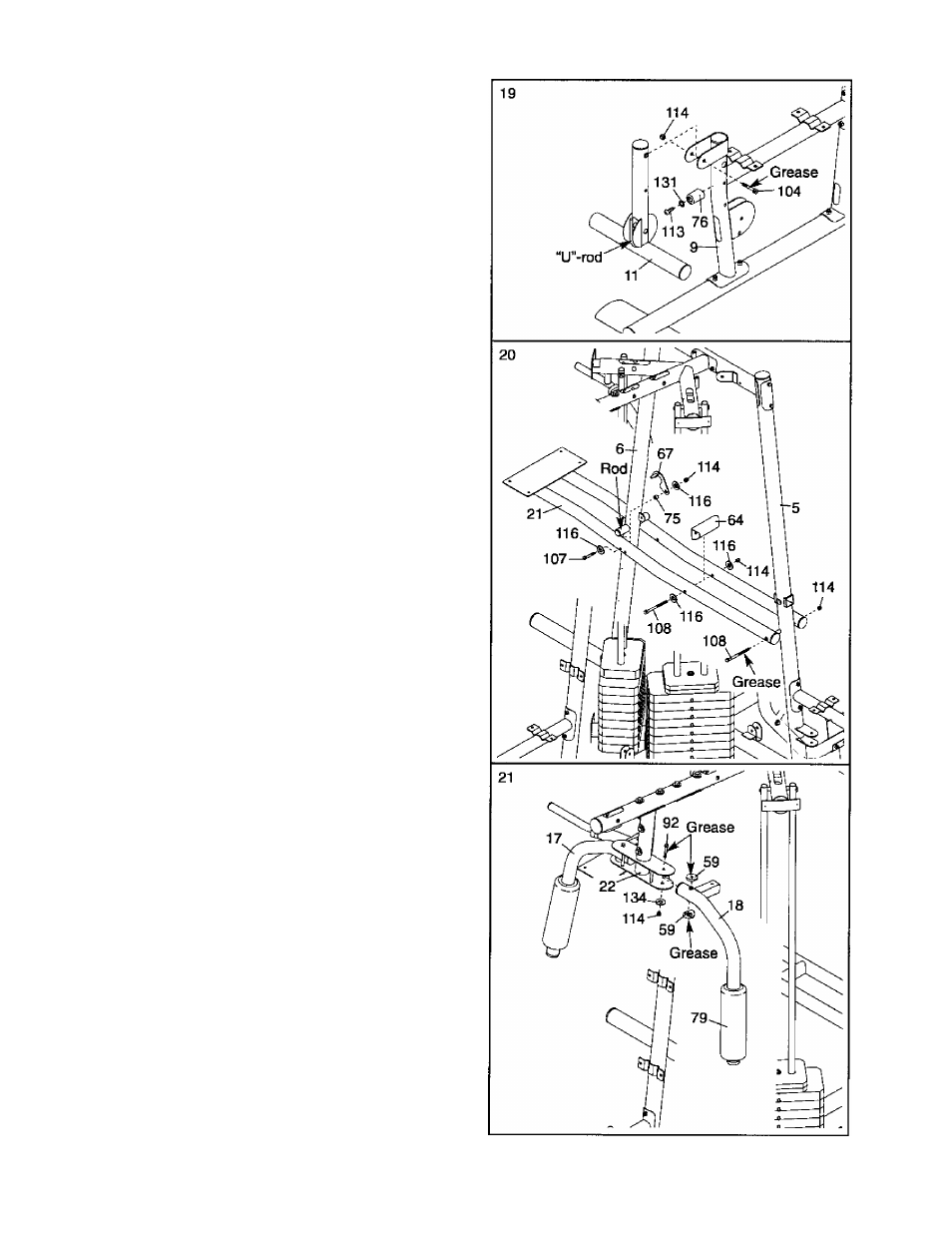

19. Attach the Leg Bumper (76) to the Right Seat
Frame (9) with an M4 x 16mm Self-tapping Screw
(113) and an M4 Washer (131).
Grease an M10 x 75mm Bolt (104), Attach the
Leg Lever (11) to the Right Seat Frame (9) with
the Bolt and an M10 Nylon Locknut (114). Make
sure the “U”-rod is on the indicated side of
the Leg Lever. Do not over tighten the
Locknut; the Leg Lever must be able to pivot
easily.
20. Hold the Dip Assist (21) around the Rear Upright
(6) and Left Upright (5) as shown. Make sure the
Dip Assist is under the indicated rod.
Attach the Cross Brace (64) to the Dip Assist (21)
with an Ml 0 X 232mm Bolt (108), two M10
Washers (116), and an M10 Nylon Locknut (114).
Grease an M10 x 232mm bolt (108). Attach the
Dip Assist (21) to the Left Upright (5) with the Bolt
and an M10 Nylon Locknut (114). Do not over­
tighten the Locknut; the Dip Assist must be
able to pivot easily.
Attach the Dip Assist Latch (67) to the Dip Assist
(21) with an M10
X 85mm Bolt (107), two M10
Washers (116), a 12mm Spacer (75), and an M10
Nylon Locknut (114).
Do not overtighten the
Locknut; the Dip Assist Latch must be able to
pivot easily. Engage the Latch over the rod on
the Rear Upright (6).
21. Wet the lower end of the Left Butterfly Arm (18)
with soapy water. Slide a Large Foam Pad (79)
onto the Butterfly Arm.
Note: an entire grease packet should be used
for this step. Grease an Ml 0 x 89mm Bolt (92)
and the indicated edges of two Arm Bushings
(59). Attach the Left Butterfly Arm (18) to the
Butterfly Frame (22) with the Bolt, an M10 Large
Washer (134), the two Arm Bushings, and an
M10 Nylon Locknut (114).
Make sure the bolt
head fits inside the hole in the Butterfly
Frame.
Repeat this step with the Right Butterfly Arm
(17).
12
