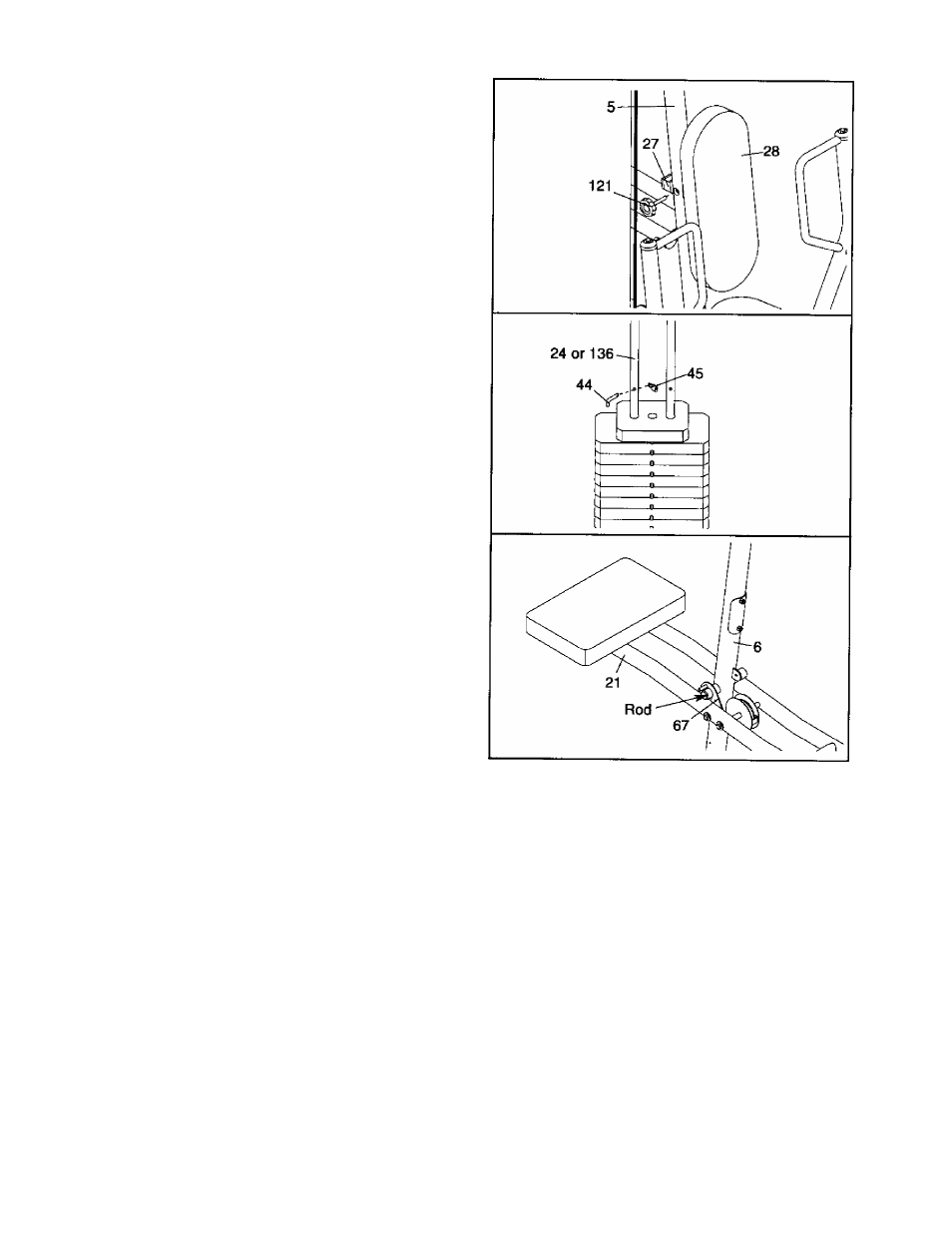

ADJUSTING THE BACKREST
To adjust the position of the left Backrest (28), disen­
gaging the Knob (121) from the Left Upright (5) and
move the Backrest to the desired position. Reengage
the Knob into the Left Upright and the Backrest
Frame (27). Make sure the Knob is fully tightened.
LOCKING ™ e weight STACK
Lock a weight stack by inserting a Lock Pin (44)
through a Weight Guide (24 or 136) and securing the
Lock (45) onto the Lock Pin.
LOCKING THE DIP ASSIST
Make sure the Dip Assist (21) is locked when per­
forming an exercise that does not require it. To lock
the Dip Assist, engage the Dip Assist Latch (67) over
the rod on the Rear Upright (6).
25
