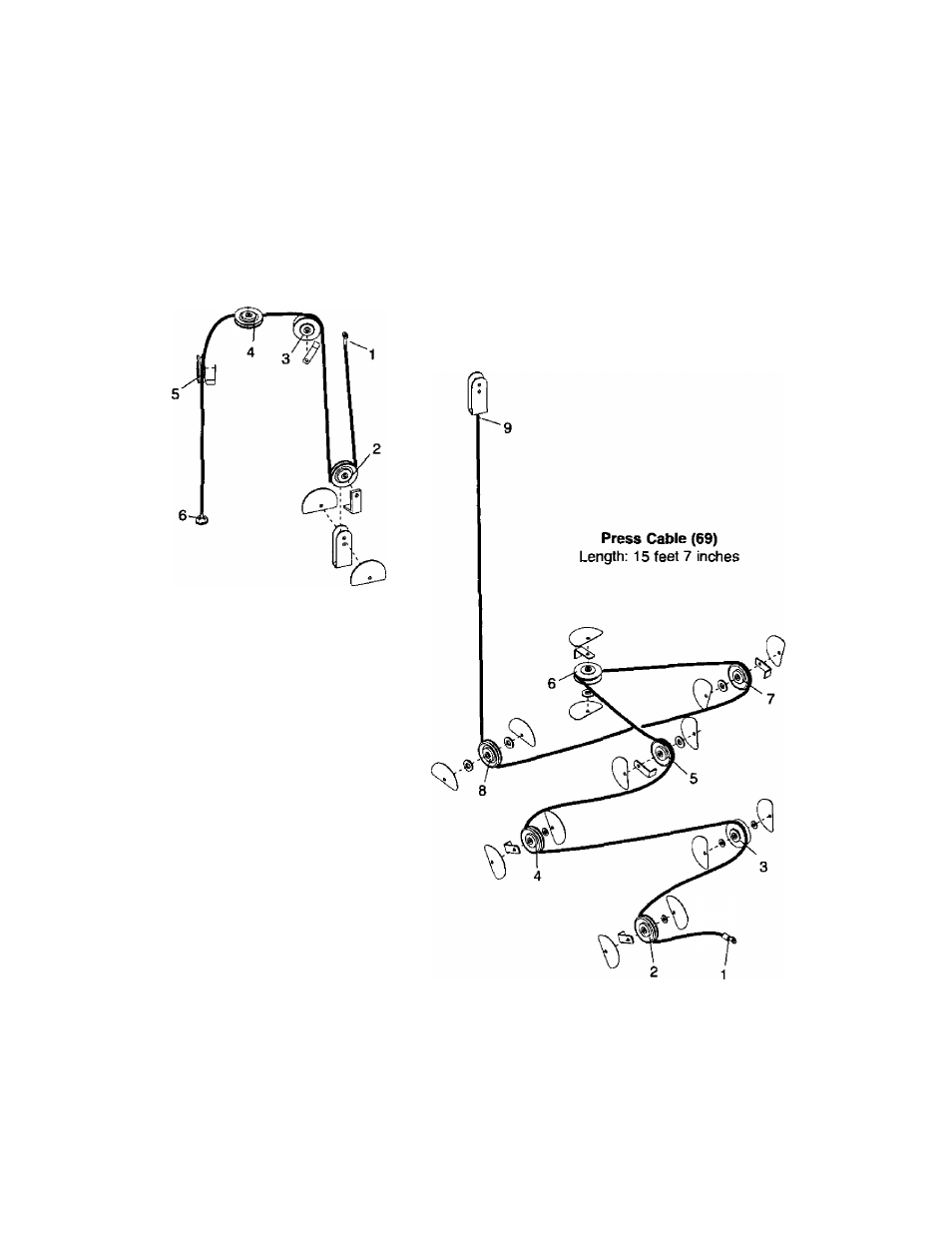

CABLE DIAGRAMS

The cable diagrams below show the proper routing of the Right Stack Cable (68), the Press Cable (69), the Leg
Lever Cable (70), the Lat Cable (71), and the Ab Cable (72). Use the diagram to make sure that the cables and

the cable traps have been assembled correctly. If the cables have not been correctly routed, the weight bench
will not function properly and damage may occur. The numbers show the correct route for each cable.

Make

sure that the cable traps do not touch or bind the cables.

Right Stack Cable (68)

Length: 7 feet 7 inches

27
