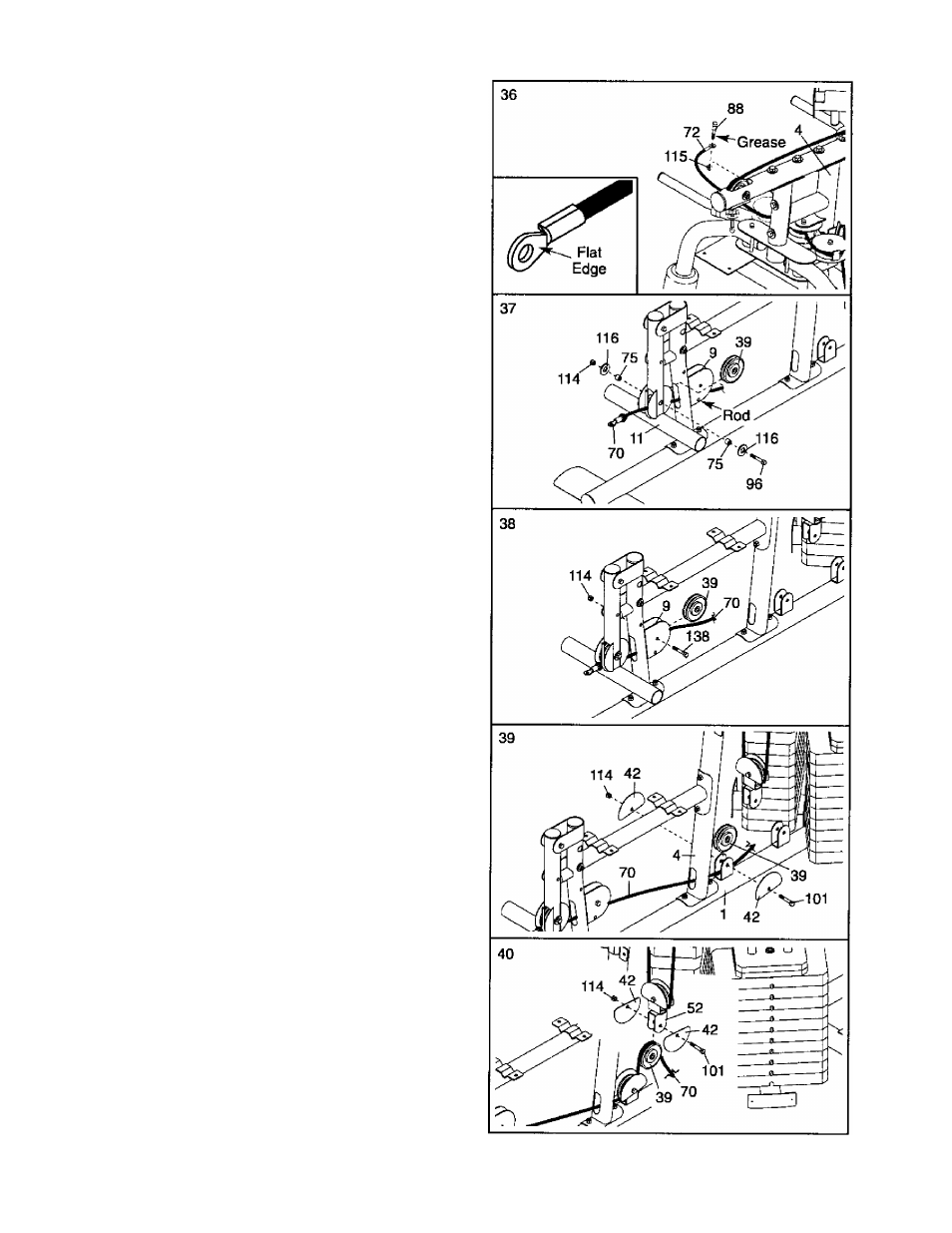

36. Grease an M8 x 22fnfn Shoulder Bolt (88). Attach
the Ab Cable (72) to the bracket on the Right
Upright (4) with the Bolt and an M8 Nylon
Locknut (115).
Make sure the flat edge of the
Cable is against the bracket on the Upright
37. Locate the Leg Lever Cabie (70). Route the
Cable through the Leg Lever (11) and the Right
Seat Frame (9). Make sure the Cable is over the
rod in the Seat Frame.
Attach a 90mm Pulley (39) inside the Leg Lever
(11), over the Leg Lever Cable (70), with an M10
X 65mm Bolt (96), two M10 Washers (116), two
12mm Spacers (75), and an M10 Nylon Locknut
(114).
38. Attach a 90mm Pulley (39) inside the Right Seat
Frame (9), over the Leg Lever Cable (70), with an
M10 X 45mm Bolt (138) and an M10 Nylon
Locknut (114).
39. Route the Leg Lever Cable (70) through the Right
Upright (4) and under a 90mm Pulley (39). Attach
the Pulley and two Half Finger Guards (42) to the
Right Base (1) with an M10 x 48mm Bolt (101)
and an M10 Nylon Locknut (114). Make sure the
Finger Guards are oriented as shown.
40. Wrap the Leg Lever Cable (70) over a 90mm
Pulley (39). Attach the Pulley and two Half Finger
Guards (42) to the Double “U"-bracket (52) with
an MIO x 48mm Bolt (101) and an MIO Nylon
Locknut (114). Make sure the Finger Guards
are oriented as shown.
