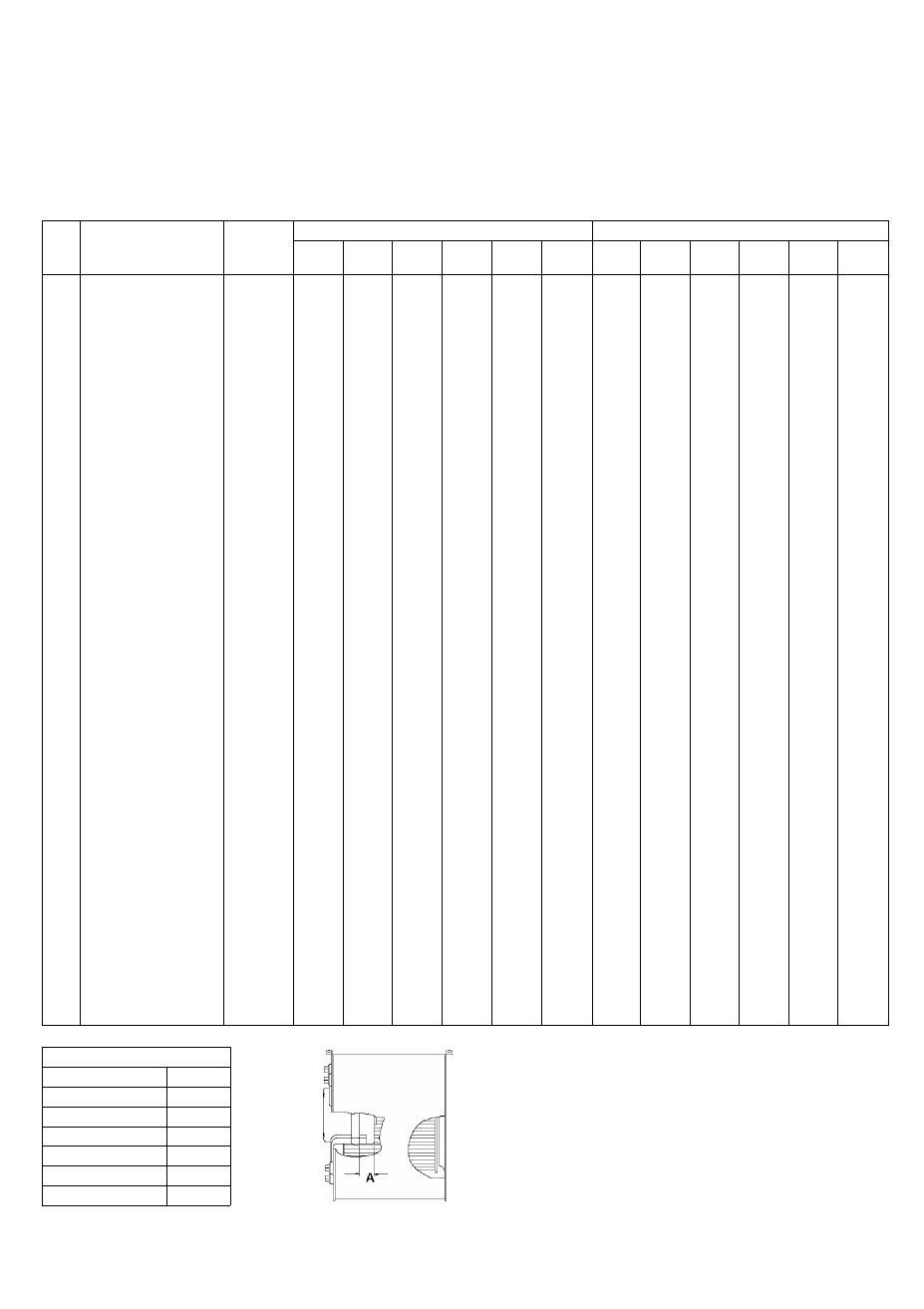

Replacement Parts - N9MP1 & N9MP2
Models - N9MP1050B12B1, N9MP1075B12B1, N9MP1080F16B1, N9MP1100F14B1, N9MP1100J20B1 &
N9MP1125J20B1 - N9MP2050B12B1, N9MP2075B12B1, N9MP2080F16B1, N9MP2100F14B1, N9MP2100J20B1 &
N9MP2125J20B1 (Natural Gas)
Replacement part supplied will be current active part. For parts not listed, consult place of purchase.
N9MP1 N9MP2
Key
No.
Description
Functional
Part
Number
050B 075B 080F 100F 100J 125J 050B 075B 080F 100F 100J 125J
12B 12B 16B 14B 20B 20B 12B 12B 1GB 14B 28B 20B
1 Heat Exchanger, Primary 1012847 1 - - - - - 1 - - - - -
1012851 - 1 - - - - - 1 - - - -
1012855 - - 1 1 - - - - 1 1 - -
1012856 - - - - 1 - - - - - 1 -
1012859
- - - - -
1
- - - - -
1
2 Heat Exchanger, Secondary 1013760 1 - - - - - 1 - - - - -
1013761 - 1 - - - - - 1 - - - -
1013764 - - 1 1 - - - - 1 1 - -
1013765 - - - - 1 - - - - - 1 -
1013766 - - - - - 1 - - - - - 1
3 Motor, BIr 1/115 V 2 CCW 1172488 1 _ 1 _ _
_
1
_
1 _
_ _
1/115 I /2 CCW 1172487 - 1 - 1 - - - 1 - 1 - -
1 / 1153/4 CCW 1172489 - - - - 1 1 - - - - 1 1
4 Mount, Motor kit* 1014824 1 1 - - - - 1 1 - - - -
1014823 - - 1 - 1 1 - - 1 - 1 1
1014822 1 1
5 Wheel, Blower 1013011 1 1 _ _ _
_
1 1
_
_
_ _
1011420
- -
1 1 1 1
- -
1 1 1 1
6 Transformer 1012722 1 1 1 1 1 1 1 1 1 1 1 1
7 Capacitor, lOMfd, 370V 1171729 1 - 1 - - - 1 - 1 - - -
7.5Mfd„ 370V 1171728 - 1 - 1 - - - 1 - 1 - -
40Mfd„ 370V 1171982 - - - - 1 1 - - - - 1 1
8 Control, Fan Timer 1014460 1 1 1 1 1 1 1 1 1 1 1 1
9 Switch, Interlock 1171981 1 1 1 1 1 1 1 1 1 1 1 1
10 Switch, Pressure 1013802 1 1 - _ 1 _ 1 _ _ _ 1 _
1013811 - - 1 - - - - - 1 - - -
1013801 - - - 1 - - - 1 - 1 - -
1013166 - - - - - 1 - - - - - 1
11 Blower, Exhaust (Jäkel) 1014338 1 1 1 1 1
_
1 1 1 1 1
_
1014341 - - - - - 1 - - - - - 1
12 Valve, Gas HSP Nat. 1013350 1 1 1 1 1 1 1 1 1 1 1 1
13 Burner, Pilot HSP 1008731 1 1 1 1 1 1 1 1 1 1 1 1
14 Igniter/Sensor HSP 1009524 1 1 1 1 1 1 1 1 1 1 1 1
15 Orifice, Burner #42 Nat. 1011351 2 3 - 4 4 5 2 3 - 4 4 5
#44 Nat. 1011352 - - 4 - - - - - 4 - - -
16 Switch, Limit (Rollout) 1013102 2 2 2 2 2 2 2 2 2 2 2 2
17 Burner Assembly 1008723 1 - - - - - 1 - - - - -
1008724 - 1 - - - - - 1 - - - -
1008725 - - 1 1 1 - - - 1 1 1 -
1008726 - - - - - 1 - - - - - 1
18 Switch, Limit (Main) 34335001
_
1 _ _ _
_ _
1
_
_
_ _
34335002 1 - - - - - 1 - - - - -
1320361 - - 1 1 - - - - 1 1 - -
1008445 - - - - - 1 - - - - - 1
1320367 - - - - 1 - - - - - 1 -
19 Orifice, Pilot .018 503211 1 1 1 1 1 1 1 1 1 1 1 1
‘See Table below for bellyband location on motor
Bellyband Location on Motor
Model N9MP1/2 A(in.)
050B12B1 2.09"
075B12B1 1.38"
080F16B1 1.81"
100F14B1 1.38"
100J20B1 1.65"
125J20B1 1.65"
