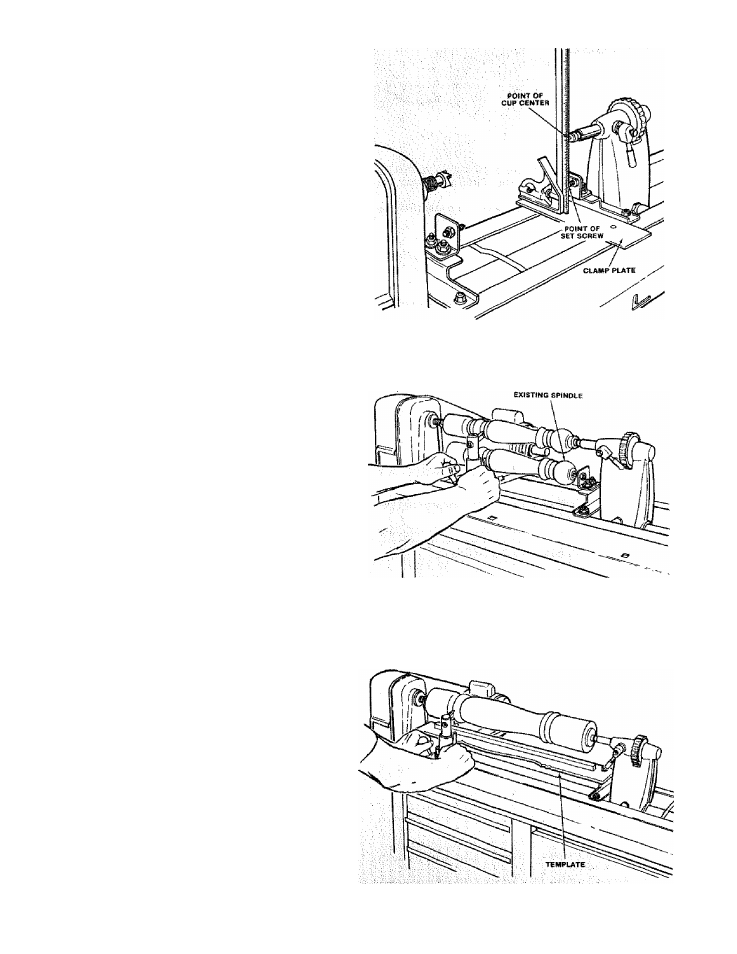

Return the Taitstock to the right-hand side of the Lathe,
bed and replace the left Tie Rod. Attach a Spindle
Bracket to the right-hand Bracket. With the Clamp Plate
or a piece of plywood across the Vertical Channels,
align the right-hand Cone-Point Set Screw with the
point in the cup center as shown...................... :
7. If the existing spindle is 2-T/2 inches in diameter or less,
it can be used in place of a template.
If the existing spindle is larger than 2-1/2 inches in
diameter, it will be necessary to make a template.
