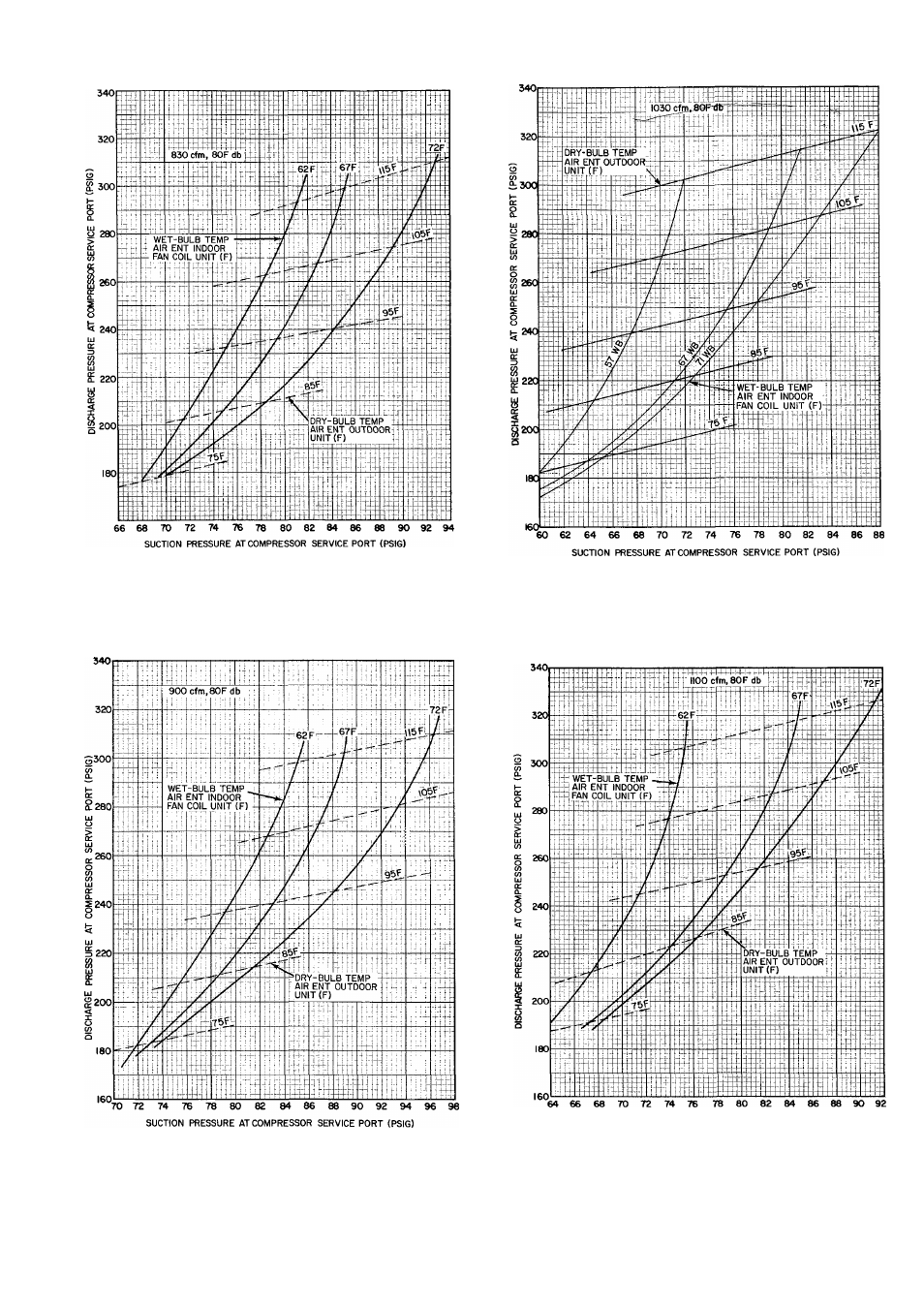

REFRIGERANT CHARGING AND CHECK CHARTS

r.

Fig. 10 — 38HQ120/38HQ940 with

40AQ030 or 28HQ.VQ030 Cooling Cycle

Charging Chart (R-22)

Fig. 12 — 38HQ127/38HQ940 with

40AQ030 or 28HQ,VQ030 or 40DQ030

Cooling Cycle Charging Chart (R-22)

Fig. 11 — 38HQ120/38HQ940 with

40AQ036 or 28HQ,VQ036 or

40FS160/28HQ.VQ036 Cooling Cycle

Charging Chart (R-22)

SUCTION PRESSURE AT COMPRESSOR SERVICE PORT (PSIG)

Fig. 13 — 38HQ127/38HQ940 with

40AQ036 or 28HQ,VQ036 or

40FS160/28HQ,VQ036 Cooling Cycle

Charging Chart (R-22)
