VENT AND
EXHAUST LEVER

EXHAUST DOOR

TERMINALS AND WIRING

VENT

DOOR

SCROLL

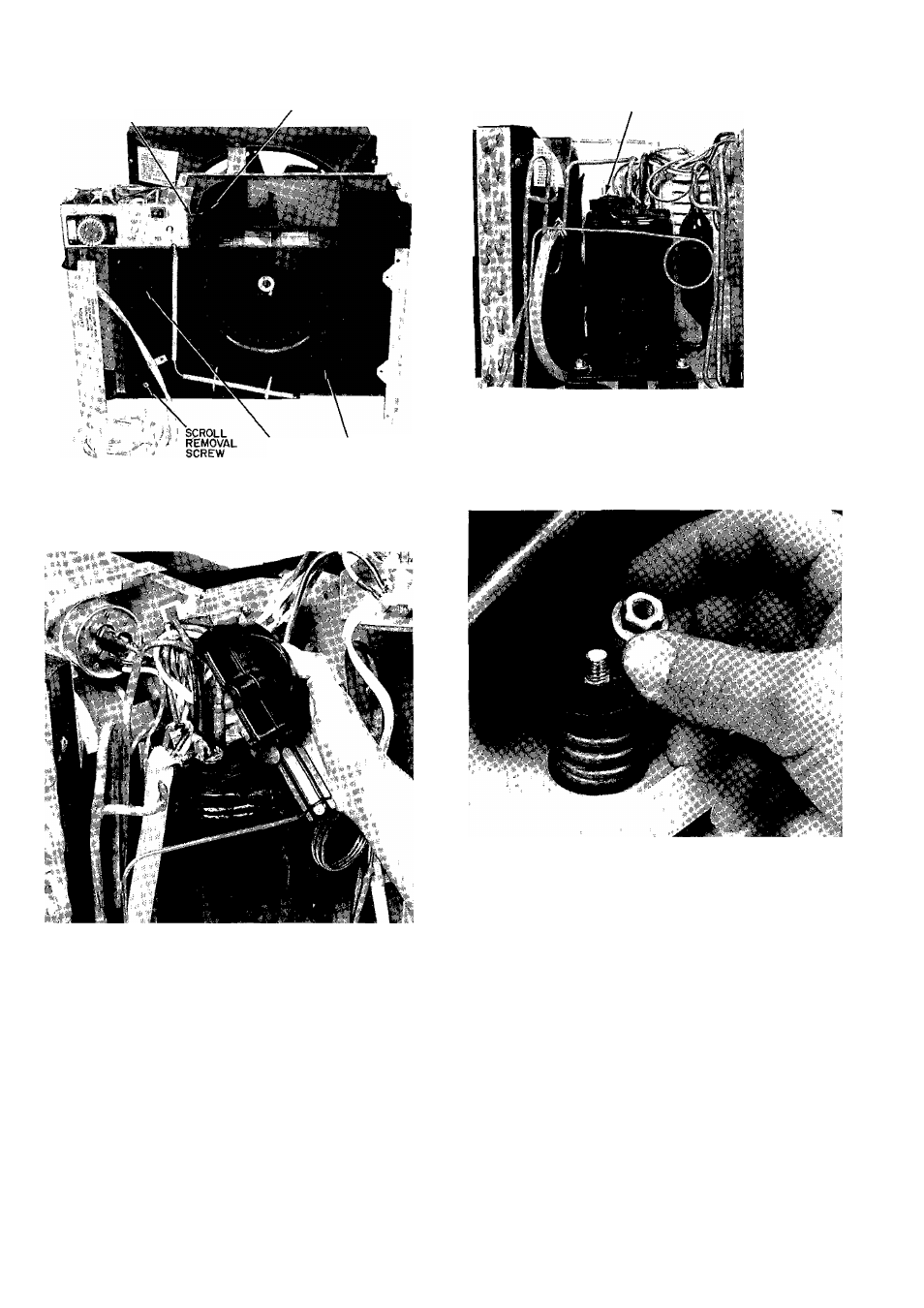

Fig. 22 — Compressor and Overload Protector

Wires

Fig 20 — Evaporator Scroll

Fig 21 — Removing Compressor Terminal Cover

c Replace overload piotectoi if needed

d Disconnect piping Refer to Seivice in this publi­

cation being caieful to observe all CAUTIONS

e Remove compiessoi mounting nuts See Fig 23

f Check compiessor mounts It compressoi is

mounted on spn'ngs, remove nuts from mounting
studs See Fig 23 Some mounts also have a
washei Piy off with seiewdiiver Failure to
remove hardware lesults in noisy operation Save
hardware for possible futuie transport of unit It
unit istianspoited, replace haidware on mounting

Fig 23 — Removing Nut from Compressor

Spring Mount (not all models)

studs Neglecting this could result in damage to

unit when transported

g Remove compressor carefully Obtain help in

lifting if necessary

h Reverse above procedure lor reassembly

17 Exhaust Door — See Exhaust Door in Fig 20

a Remove metal spring from behind the door

b Pull exhaust door carefully out oi mounting slot
c Reverse above procedure for reassembly

18 Vent Door — See Vent Door in Fig 20

a Remove evaporator scroll as described under

Evaporator Blower

b Remove spring from vent door

c Lift vent door up and pull out
d Reverse above procedure for reassembly
