SmartCell 6A000 User Guide 4-11

Switch Administration

Logs and Alarms

To see the route, enter the

show route

command on SW2

SmartCell ZX # show route

ROUTE NET TABLE

destination gateway flags Refcnt Use Interface

------------------------------------------------------------------------

0.0.0.0 0.0.0.0 1 0 0 zn0

90.1.1.0 90.1.1.33 1 0 1688 zn1

128.205.99.0 90.1.1.254 1 3 5660 zn1

------------------------------------------------------------------------

ROUTE HOST TABLE

destination gateway flags Refcnt Use Interface

------------------------------------------------------------------------

127.0.0.1 127.0.0.1 5 0 0 lo0

------------------------------------------------------------------------

SmartCell ZX #

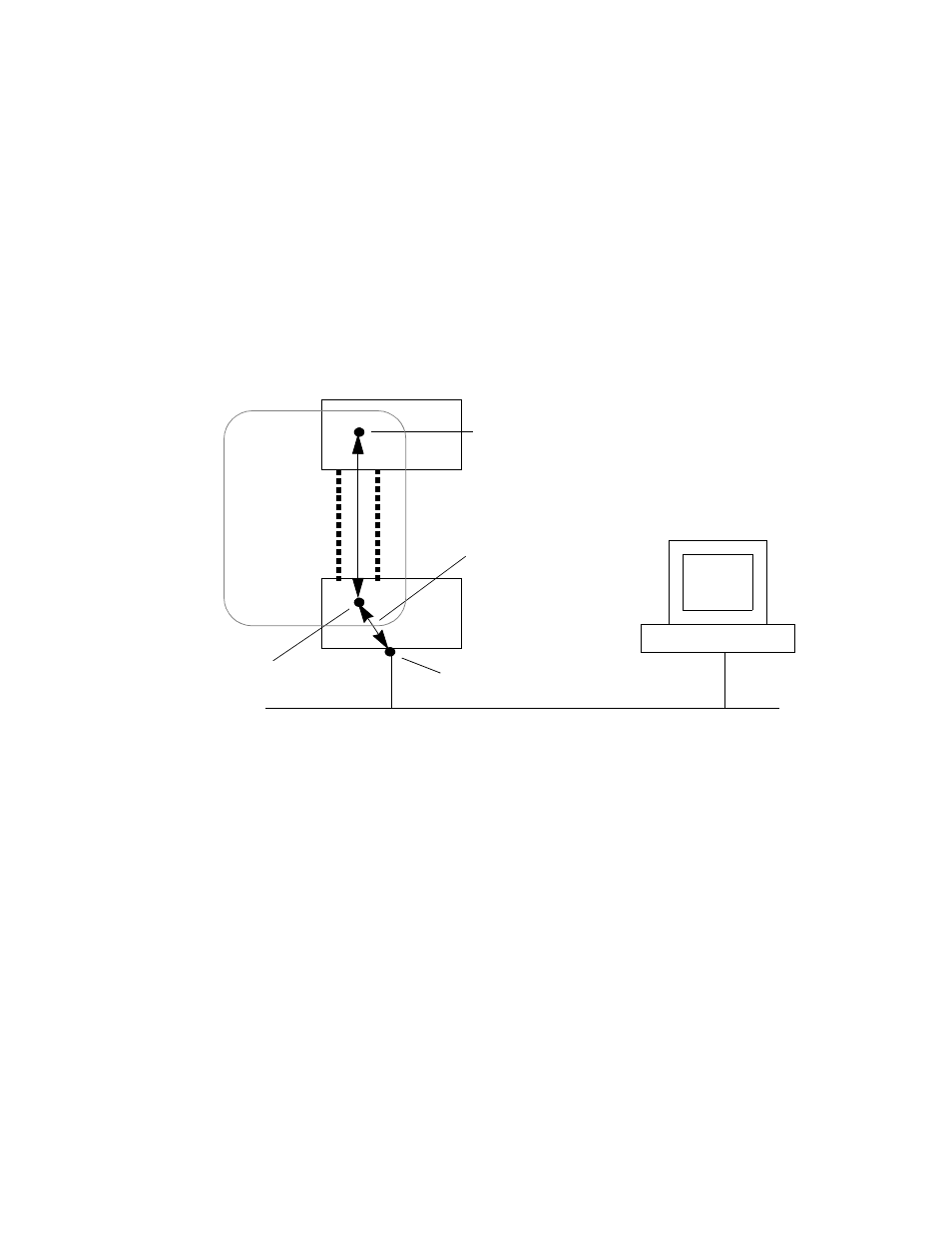

Figure 4-3 IP routing through SW1 for connectivity to the Ethernet network

4.4

LOGS AND ALARMS

This section discusses the log and alarm features, concepts, and the commands provided by the SmartCell 6A000
switch for setting and using the log and alarm options.

NMS

Ethernet network 128.205.99.0

SW1

SW2

IISP Ro

ute

ELAN

Switch client
on SW2, 90.1.1.33

Switch client
on SW1,

IP Rou

te

Ethernet interface

90.1.1.254

128.205.99.254

Switch client on SW1 is
defined as SW2’s
gateway to the Ethernet
