Figure 2-1 6a000-04 and 6a000-02 front panels, 6a000-04 and 6a000-02 front panels -2 – Cabletron Systems SmartCell 6A000 User Manual
Page 20

2-2 SmartCell 6A000 User Guide
Inspecting the Switch
Switch Installation and Setup

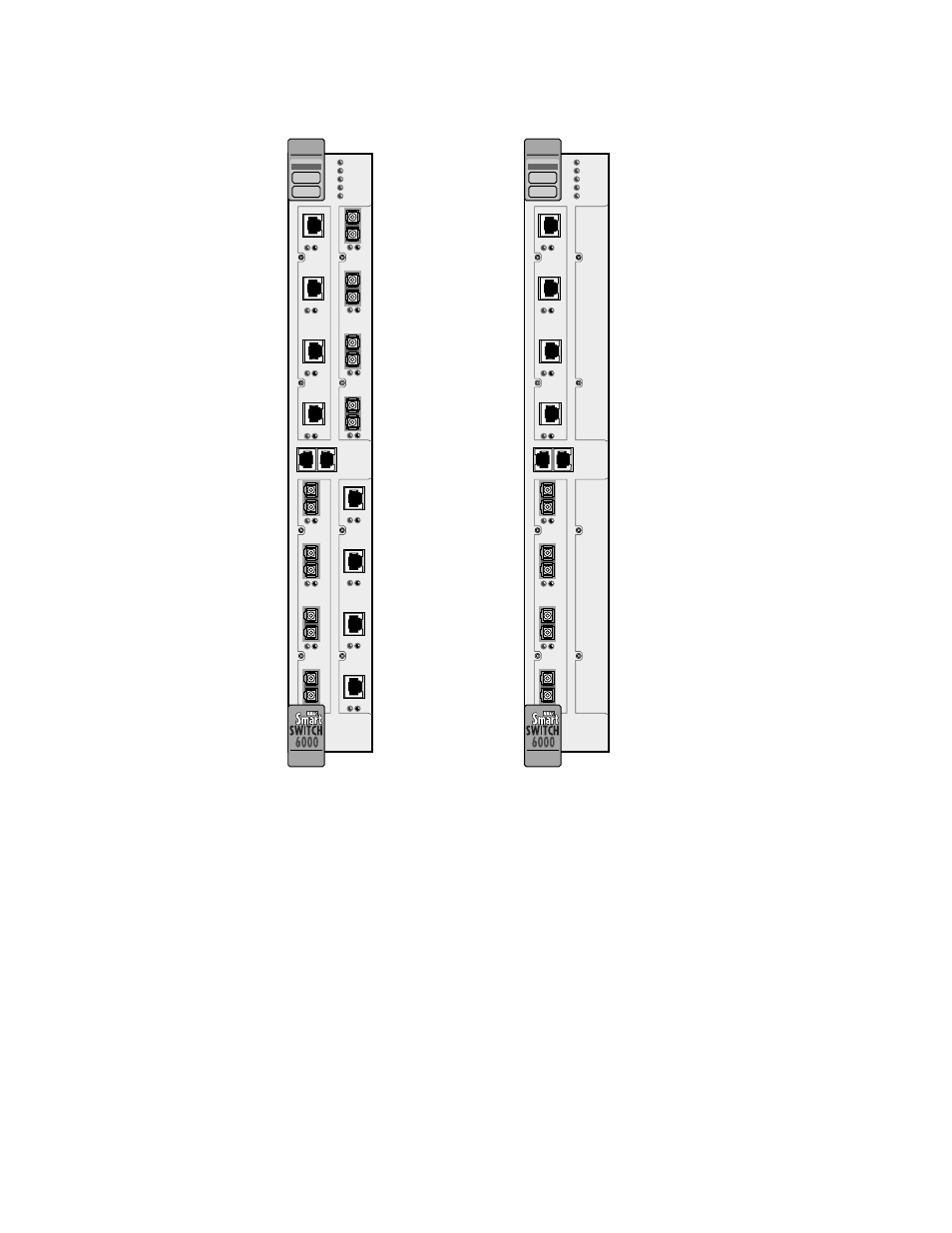

Figure 2-1 6A000-04 and 6A000-02 front panels
Inspect the switch and make certain that its configuration corresponds to what was ordered. Check the following:
Check the labels on operating software diskettes. Make sure they list the software package that was
ordered (ZX-SWR-PVC, ZX-SWR-SVC, or ZX-SWR-SVR). The software on the diskettes is the
software that comes factory installed on your switch.
Input/Output (I/O) modules are of the correct type and number (See Figure 2-2).
