SmartCell 6A000 User Guide 2-3
Switch Installation and Setup Installing the Switch

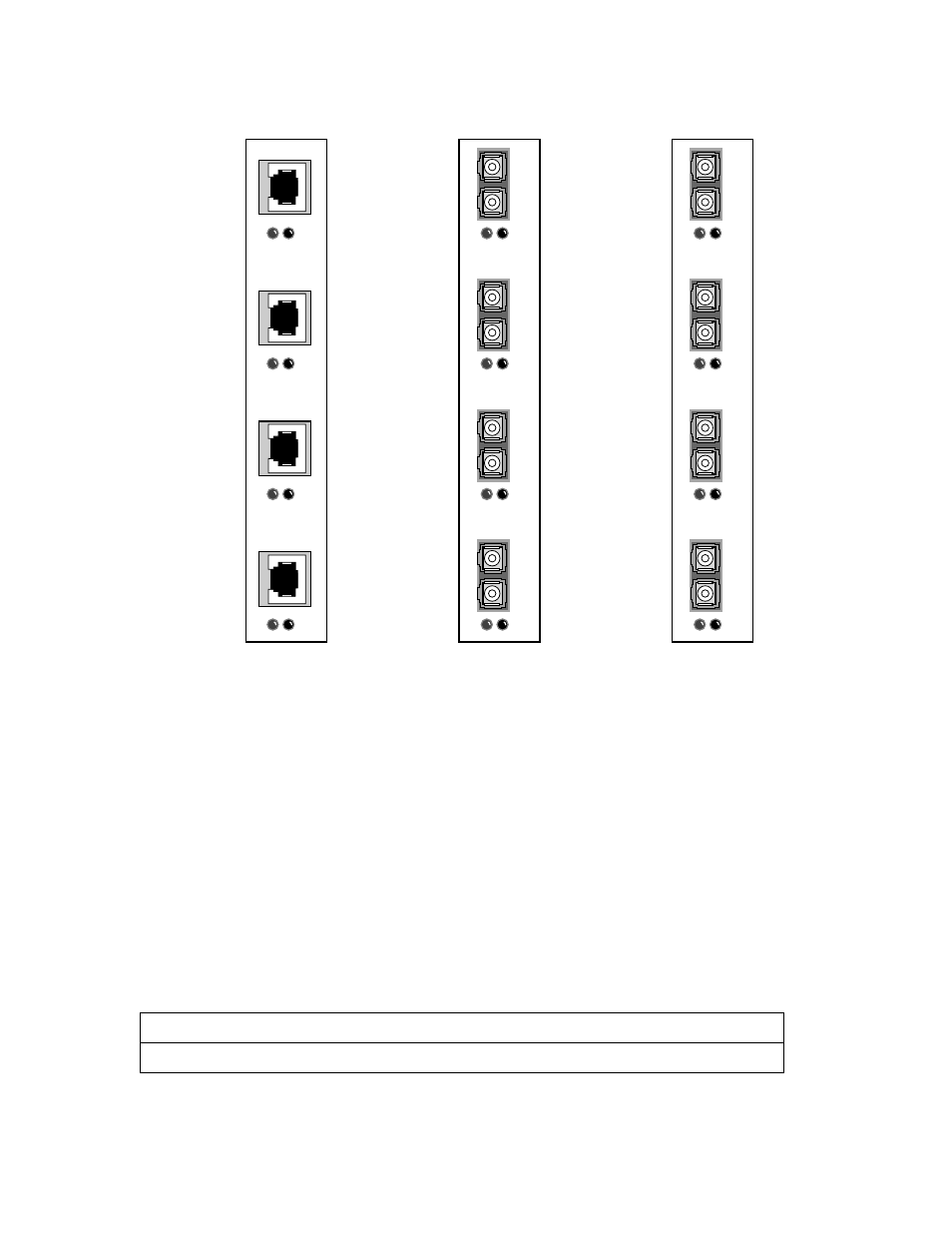

Figure 2-2 6A000 I/O modules
If the hardware or software configuration is incorrect, contact Cabletron customer support immediately.
2.3 INSTALLING THE SWITCH
The SmartCell 6A000 is hot swappable, meaning that you can install and remove it without turning off or unplugging
the SmartSwitch 6000 chassis. You can install as many as three switch modules in each chassis. In this configuration,
the SmartCell 6A000 modules provide up to 45 user ports. Modules should be connected with inter-module trunks if
traffic must cross between modules. Table 2-1 shows the maximum number of LAN and ATM switch modules that can
be installed in a SmartSwitch 6000 chassis.
Table 2-1 SmartSwitch 6000 contents
Number of 6Exxx or 6Hxxx modules installed 0 1 2 3 4 5
Number of 6A000 modules that can be added 3 2 2 1 0 0
NO SYNC D
ATA
NO SYNC D
ATA
1
2
3
4
1234
6A-IOM-21-4 6A-IOM-22-4
SM
NO SYNC D
ATA
1
2
3
4
6A-IOM-29-4
155 Mbps STS-3c/STM-1
UTP5, 4 Ports
155 Mbps STS-3c/STM-1
MMF, 4 Ports
155 Mbps STS-3c/STM-1
SMF/MMF, 4 Ports
