The replacement of the diaphragm and the replacement of the valves can
be carried out separately.
+
To replace the valves, remove the head covers of one side of the pump
along with the assembled valve heads and fittings.
+
To maintain the diaphragms, the valve heads and the fittings need not
be disassembled. The head covers can be removed along with the as-
sembled valve heads and fittings.
+
Service only one side of the pump at a time to avoid the mixing of
parts.

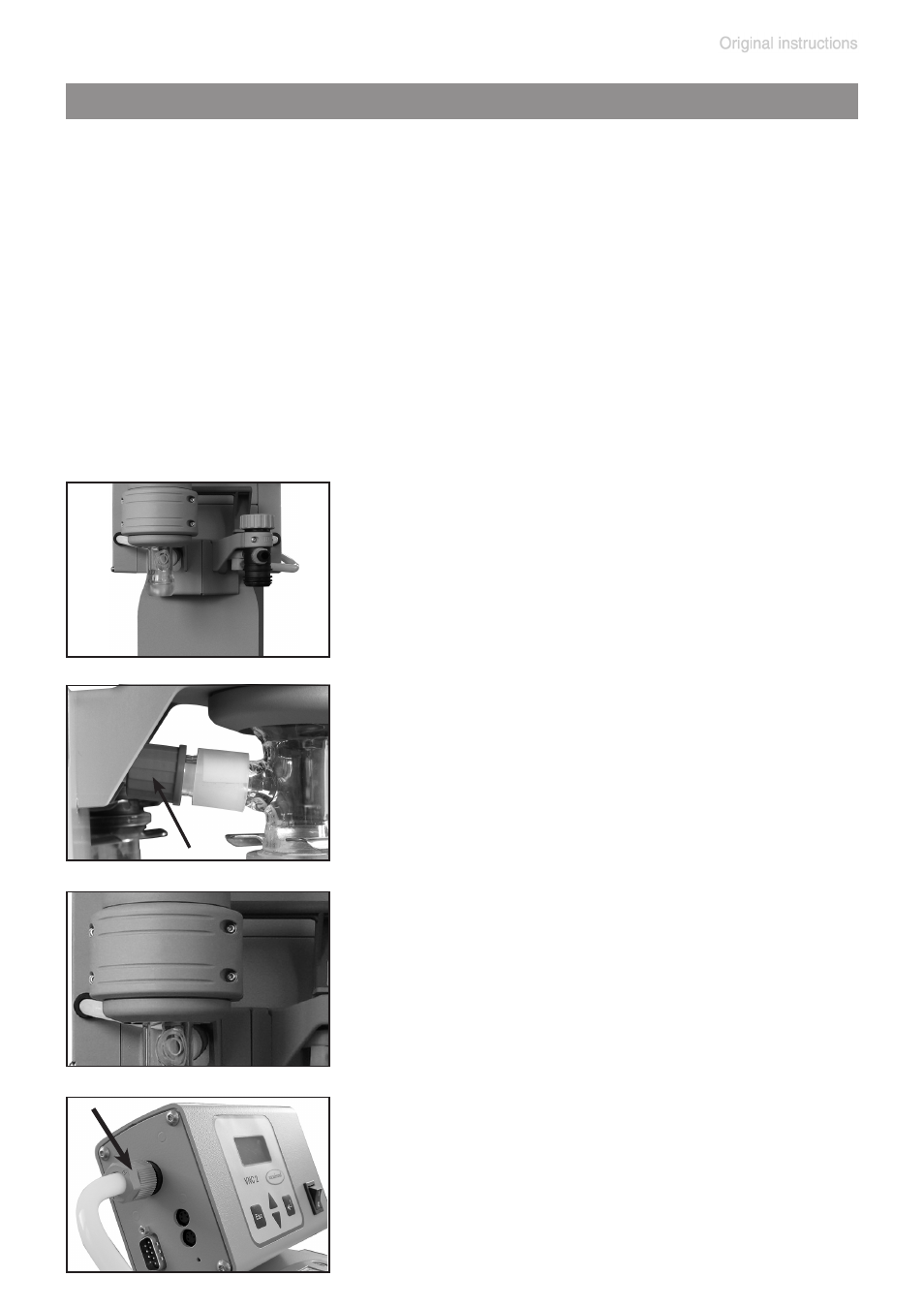

Cleaning and inspecting the pump heads
Disassemble the exhaust vapor condenser
EK:
➨
Loosen the union nut at the inlet of the ex-
haust vapor condenser.
➨
Remove the 4 screws affixing the counter
holder of the exhaust vapor condenser with
a Torx driver T10. Remove the exhaust va-
por condenser. In doing so pull the PTFE
hose out of the inlet of the exhaust vapor
condenser.
➨
Remove catchpots (9) at inlet and outlet
(see ”Use and operation”, pg. 31).
➨
Loosen the union nut at the vacuum con-
nection of the controller.
➨
Pull the PTFE tubing off the vacuum con-
nection.
