Wiring – TriangleTube Prestige Cascade System User Manual
Page 43
Wiring
40
NOTES:
1.
This drawing shows system wiring concept only
Installer is responsible for all equipment & detailing required by local codes
2.
All wiring shall be in conformance with the latest edition of the National Electrical Code
3.
4.
5.
Do not run sensor wiring in same conduit or raceway as line voltage wiring
Use 18 AWG copper twisted pair wiring for all sensor wiring
See Fig. 32, page 34 for System Piping

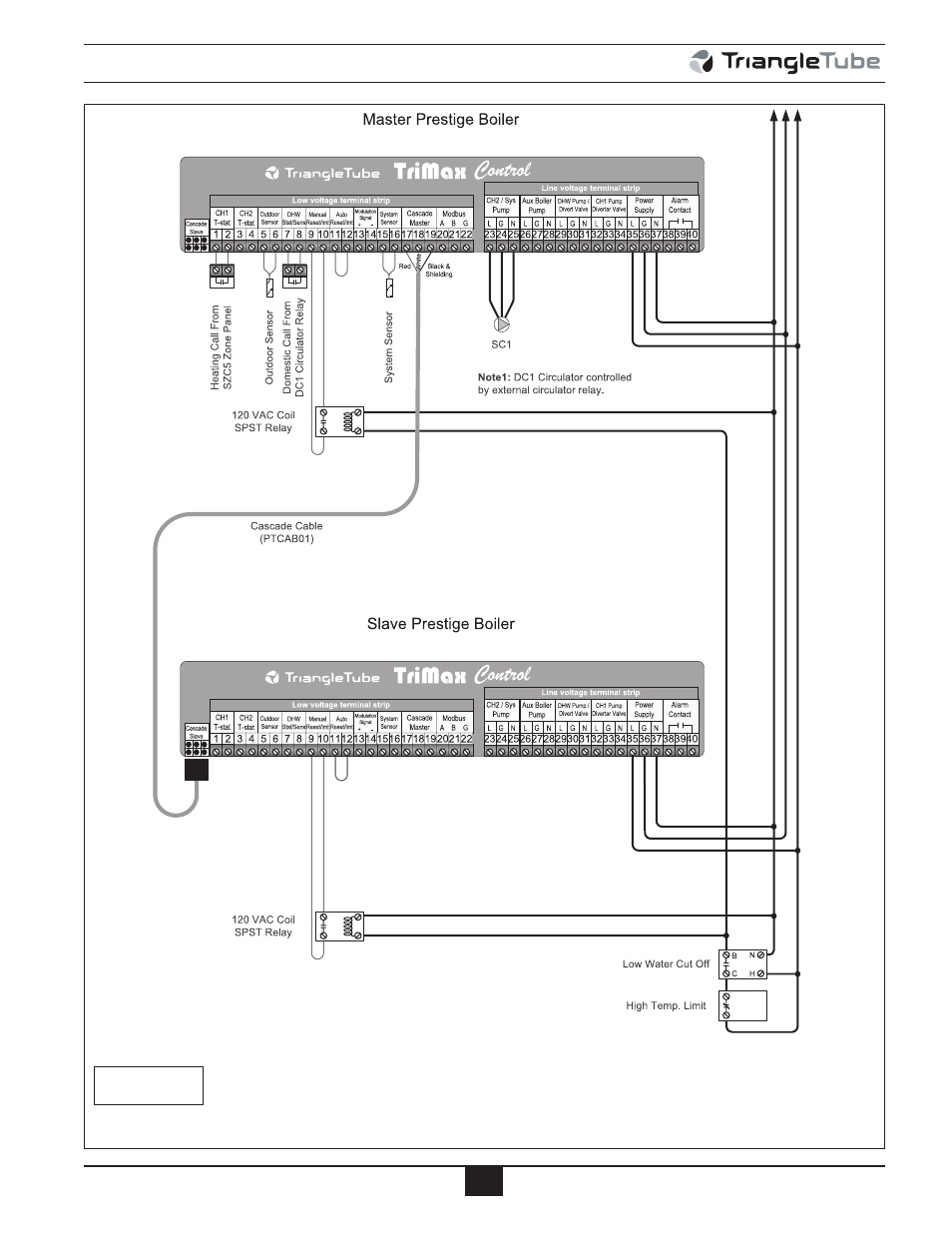

Fig. 35A: Wiring Diagram – One LWCO & High Limit Per Cascade without Common Vent
