Installation
Boiler Mounting
1. Attach the boiler mounting brackets shipped with
the boilers to the top front of the distribution mani-
fold using the hardware supplied, see Figure 24.
Ensure brackets are level.
2. Remove the front doors from the boilers and care-
fully lift boilers by internal supply and return pipes.
Obtain assistance in lifting the boilers onto the boil-
er mounting brackets. Make sure the boiler mount-
ing lip located along the upper edge of the rear boil-
er jacket panel engages the boiler mounting bracket.
Ensure each boiler is seated properly and is secure.
Remove the front door from all boilers before mount-
ing boilers on brackets. Carefully lift boilers using
the supply / return pipes in the boilers, onto the
mounting brackets.
Use extreme care not to drop the boiler or cause bod-
ily injury while lifting or mounting the boiler onto the
bracket. Once mounted verify that the boiler is
securely attached to the bracket. Failure to comply
with the above guidelines could result in property
damage, personal injury or death.
WARNING
NOTICE

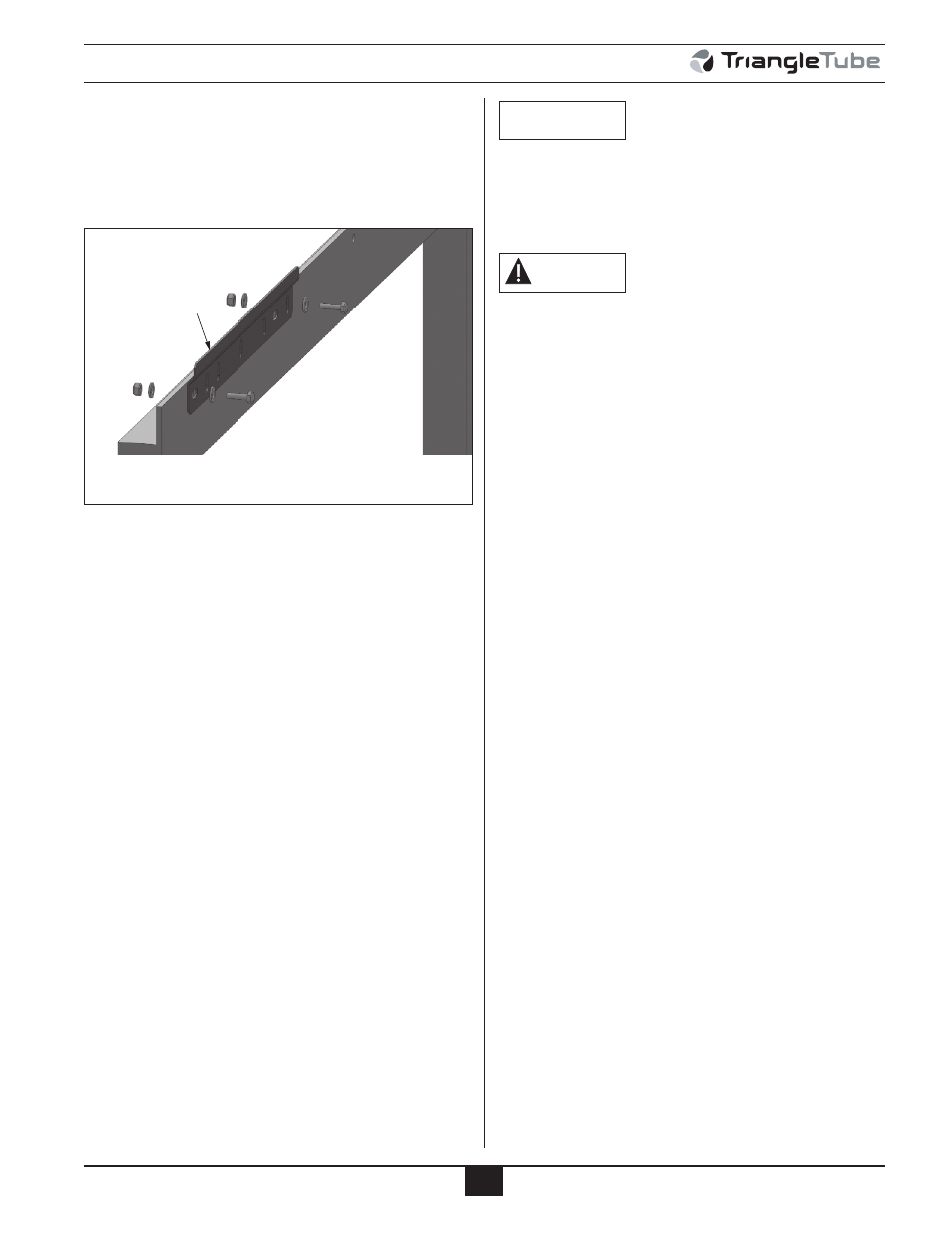

Prestige Wall Bracket
(Supplied with Boiler)
Fig. 24: Prestige Wall Bracket Installations
