38
Wiring
NOTES:
1. This drawing shows system wiring concept only
Installer is responsible for all equipment & detailing required by local codes 2.
All wiring shall be in conformance with the latest edition of the National Electrical Code 3.
4.
5.
Do not run sensor wiring in same conduit or raceway as line voltage wiring
Use 18 AWG copper twisted pair wiring for all sensor wiring

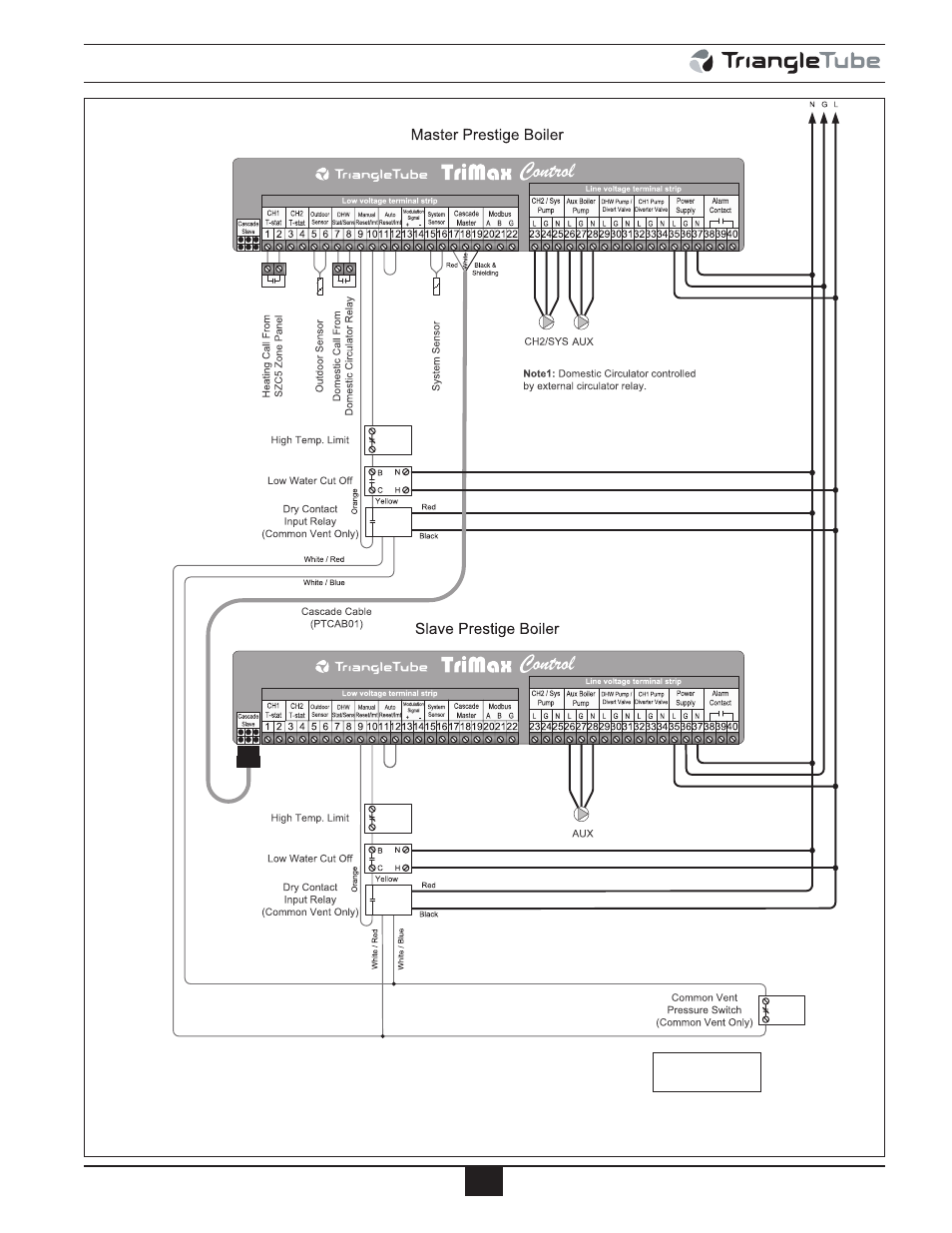

Fig. 34: Wiring Diagram - Individual LWCO & High Limit Per Boiler
See Fig. 31, page 33 for System
Piping
NOTICE
