CenterLine 230BP
020-020-UK R0
7

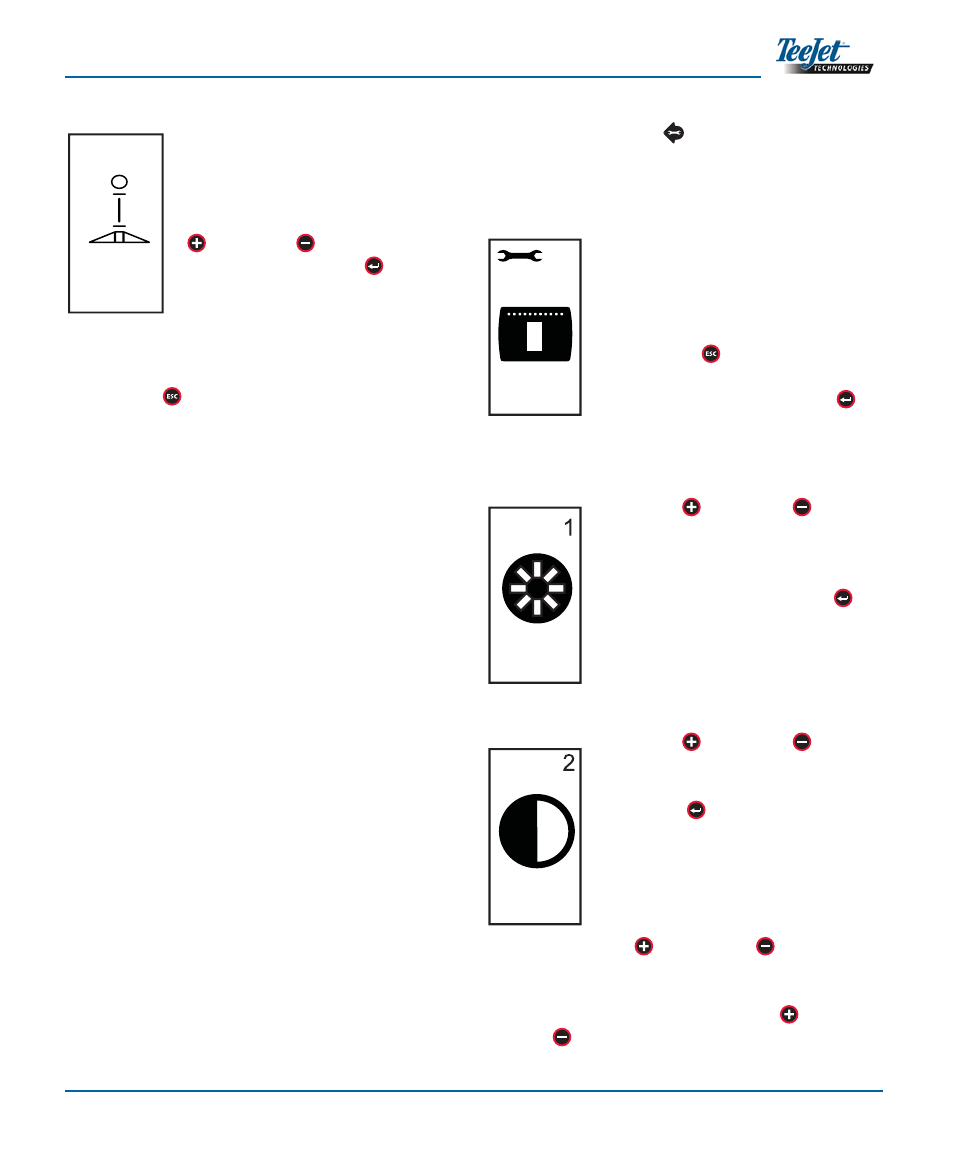

Display Setup Mode
Press the Setup Mode key until the initial Display
Setup Mode screen appears.
DISPLAY SETUP SCREEN
This is the initial Display Setup Screen.
Setup screens will time out after 10
seconds of inactivity (changes will be
saved). After time out, the screen will
go back to Operation Mode. Pressing
the Escape
key will also exit the
user from Setup Mode without saving
any changes. Press the Enter
key
to advance to the Display Brightness
setting.
DISPLAY BRIGHTNESS
The Plus and Minus keys can
be used to change the brightness lev-
els of the display screen. Press the
keys until the desired brightness is
established. Press the Enter
key
to advance to the Display Contrast
setting.
DISPLAY CONTRAST
The Plus and Minus keys can
be used to change the contrast levels
of the display’s background. Press
the Enter
key to advance to the
Display Background setting.
NOTE: The Plus and Minus keys control
console brightness levels during Opera-
tions modes. However, if GPS signal is
not being received, the Plus
and Minus
keys will control the contrast level.
BOOM OFFSET DISTANCE
Defi ne the distance from the GPS
antenna to the boom in decimal feet
(decimal meters). The boom offset
distance range is 0 to 50 meters (0
to 164 decimal feet). Use the Plus
and Minus keys to change the
value. Press the Enter key to ac-
cept the changes.
Once the fi nal setting has been entered and saved,
the screen will return to the initial CL230BP Setup
Screen. If no additional changes are required, press
the Escape
key to exit to Operation Mode.
