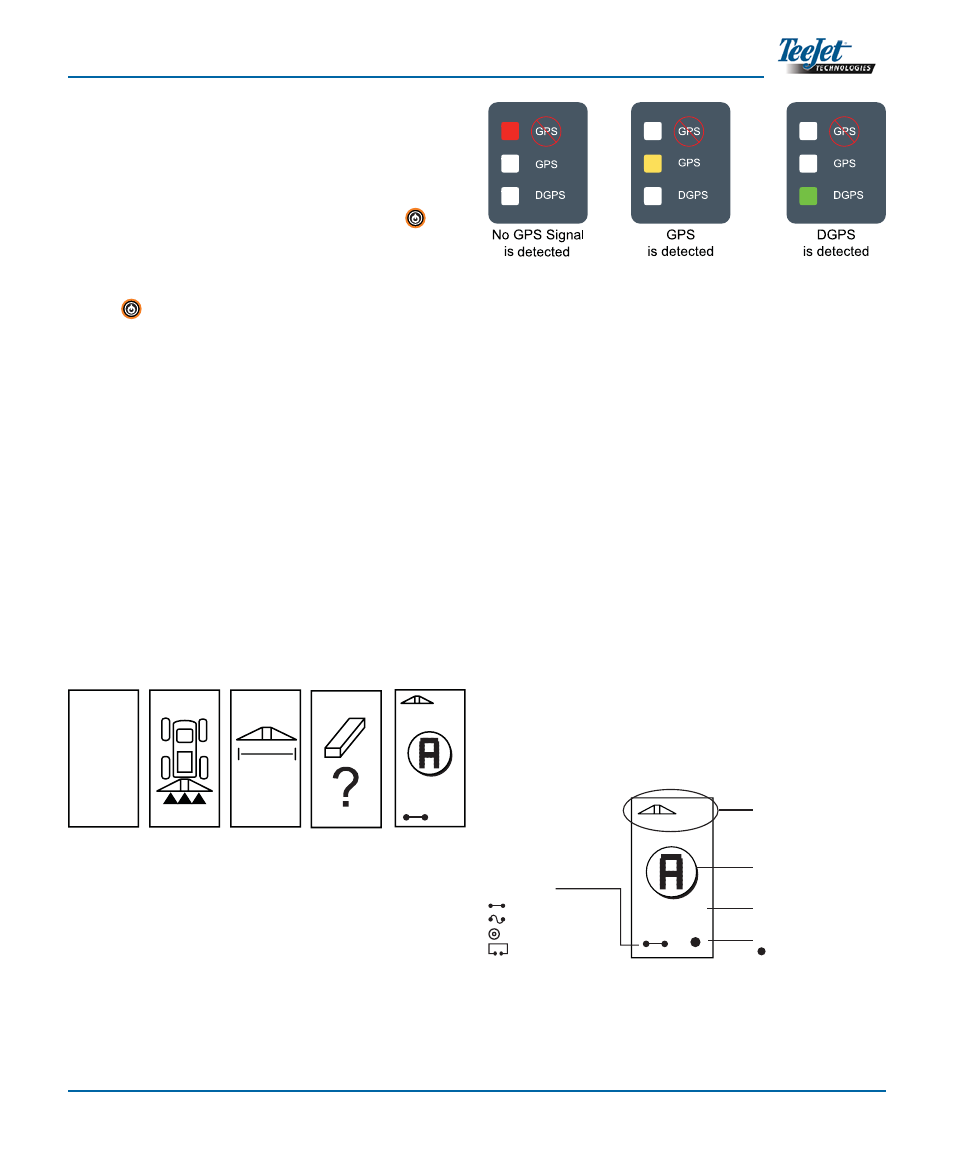

CHAPTER 3 - OPERATION

Power Up Sequence

Power up the system by pressing the Power

button.

Power down the system by pressing and holding the
Power

button approximately four (4) seconds.

At power up, the CL230BP will perform the following
steps:

Display copyright and software version screen

for three (3) seconds.
Display the splash screen for two (2) seconds.

Detect if GPS data are present (this occurs simul-

taneously within the display screen sequence).
Display the current swath width for three (3) sec-

onds.
The Area Reset screen will be displayed.

The splash screen is displayed until the DGPS

LED is illuminated or Setup mode is entered.
Once DGPS is locked, the Operation screen will
be displayed.

CL230BP Operation Reference
Screens

Navigation Screen - Mark A-B

29.

Swath Width

Screen

5

BP

TeeJet

© 2008

Copyright

Software

Version Screen

CL230

Splash Screen

GPS detected

Operation

Screen

+0

Area Reset

Screen

V1.07

+0

6.0 MPH

Swath Number
+ to the right of the A-B baseline
- to the left of the A-B baseline

Return to Point Indicator

indicates a point is stored

Guidance Mode

Straight A-B Guidance

Curved A-B Guidance

Circle Pivot Guidance

Headland Circuit

Action Indicator (currently
Mark Point A)

Vehicle Speed

If the DGPS light is fl ashing, communication has been
established with the GPS source; however, NMEA out-
put rate is too slow. Ensure proper NMEA message set-
tings of 5 GGA in the GPS device. Application cannot
occur until proper communication is established.

6 km/h

6 km/h

CENTERLINE

230BP
