Installation - Guidance
Avoid mounting the antenna close to other electri-
cal installations (air conditioning equipment, radio
antennas, etc.). Avoid coiling excess antenna cable -
confi gure it in a “fi gure 8” shape and keep the cable at
least 30 cm (1 ft) from possible sources of electrical
interference.

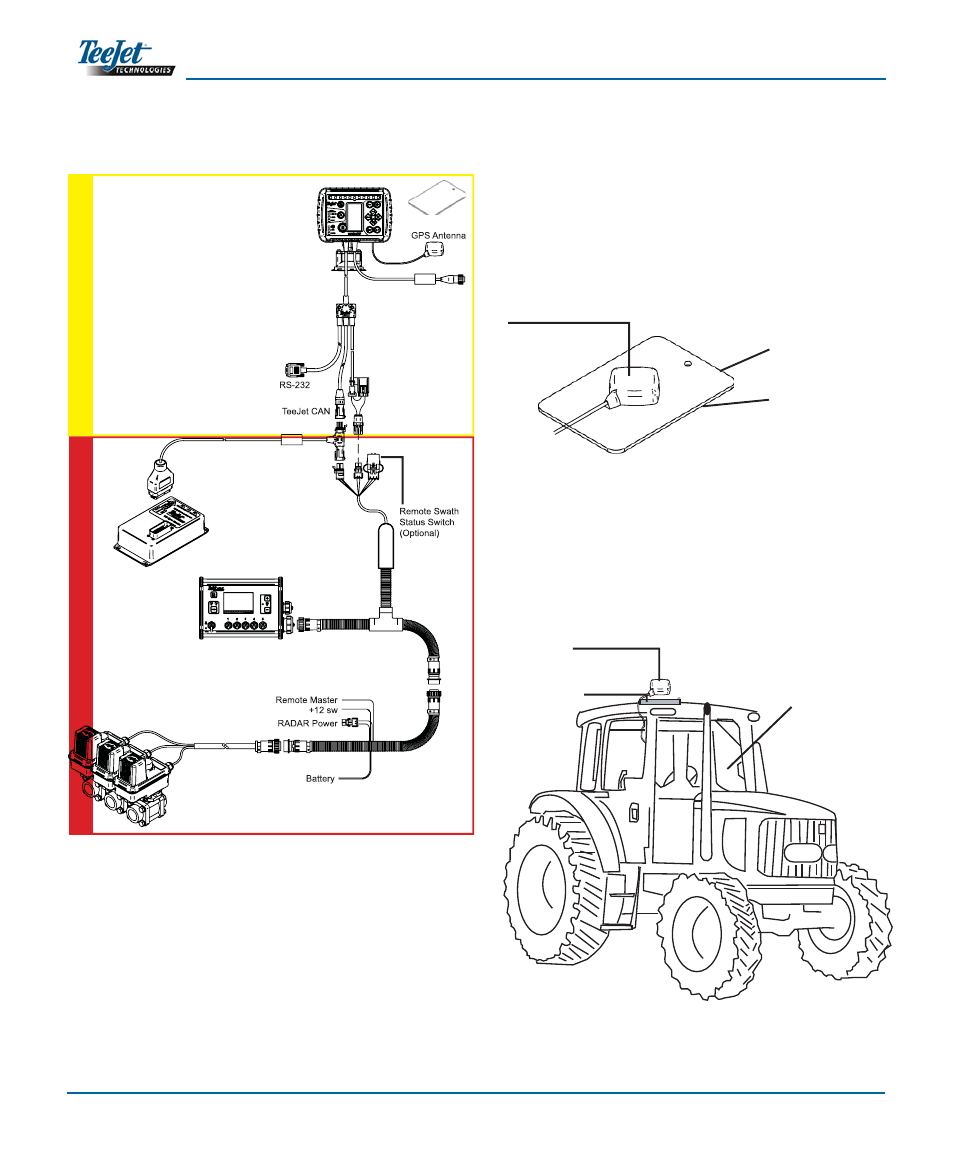

System Confi guration
65-05055
Metal Mounting Plate
60-10081
Velcro
TM
GPS Antenna
Position the GPS antenna in the center of the vehicle
at the highest point with a clear view of the sky. If the
tractor cab is non-metallic, mount the metal plate in
the center of the vehicle at the highest point with the
Velcro
TM strips and place the antenna on the plate.
Route the antenna cable carefully to avoid damage
and possible electrical interference.
Metal plate
Antenna
GPS Speed Output
External GPS Receiver
Input/Output
GGA 5 Hz
VTG 1 Hz
19200 Baud rate
Rate
Controller
Harness
SmartCable
Adapter
Harness
TeeJet 844-E
Rate Controller
Valves
Console
Power
Metal Mounting Plate
65-05055; 60-10081 Velcro
TM
Speed Cable
CAN
90-02536
Optional Tilt Gyro Module kit
Use the suction cup to
fi t the CL230BP console
to the tractor cab win-
dow behind the wheel.
