CenterLine 230BP

020-020-UK R0

11

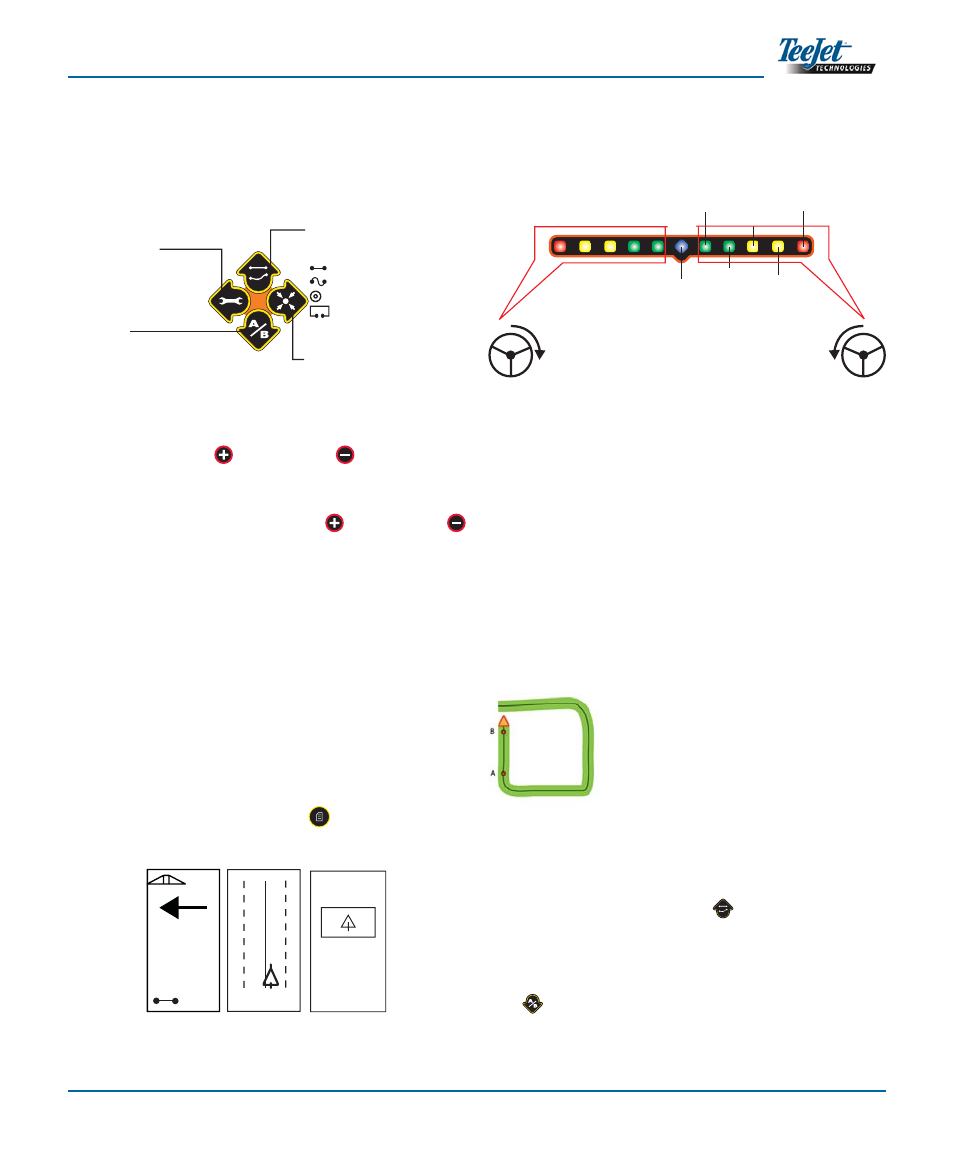

Operation Function Keys

There are several functions that can be performed
during operation. Most of these functions are initiated
by the four arrow keys, located on the keypad.

NOTE: The Plus and Minus

keys control

console brightness levels during Opera-
tions modes. However, if GPS is not be-
ing received, the Plus

and Minus

keys will control the contrast level.

Operations Screens

Several screens are displayed during vehicle opera-
tion. They are consistent throughout the application
and appear as follows.

To change the view of any screen during Operations

mode, press the Change Page

key.

Guidance Operation - Modes

Guidance capabilities include Straight A-B, Curved
A-B, Circle Pivot, and Headland Circuit.

Headland Circuit Guidance

Headland Circuit guidance is used to establish a pe-
rimeter around the application area. The CL230BP
will collect and store bounded area once the Head-
land Circuit is closed. The CL230BP will allow two
passes around the perimeter of the fi eld - the original
perimeter pass and one additional pass. Guidance is
applied during the second pass, after the fi rst pass
has been completed.

NOTE: Booms will not operate outside of the

bounded area once it is established.

1. Use the Guidance Mode

key to select Head-

land Circuit guidance.

2.

Drive to the desired headland location of Point
A. With the vehicle in motion, press the Mark A/B

key to establish Point A. Drive around the

perimeter of the fi eld. The CL230BP will auto-

lights illuminated on the right of the
lightbar require a steering adjust-
ment to the left

lights illuminated on the left of the
lightbar require a steering adjust-
ment to the right

Center

60 cm (2 ft)

90 cm (3 ft)

1.2 m (4 ft)

1.5 m (5 ft)

30 cm (1 ft)

Guidance Mode
This key selects the desired guidance
mode:

Straight A-B Guidance

Curved A-B Guidance

Circle Pivot Guidance

Headland Circuit

Setup Mode
This key exits OPERATION
and enters SETUP mode.

Mark A-B Line
This key allows the operator to estab-
lish a new A-B line.

Return to Point
This key allows the operator to estab-
lish a point in memory so CL230BP
can navigate the vehicle back to that
point.

+2

6.0 MP

1.5

Navigation

Screen

H

6.0 Ft

Map Page

Completed Circuit -

Calculated Area

KM/H

M

55
