Operation

10

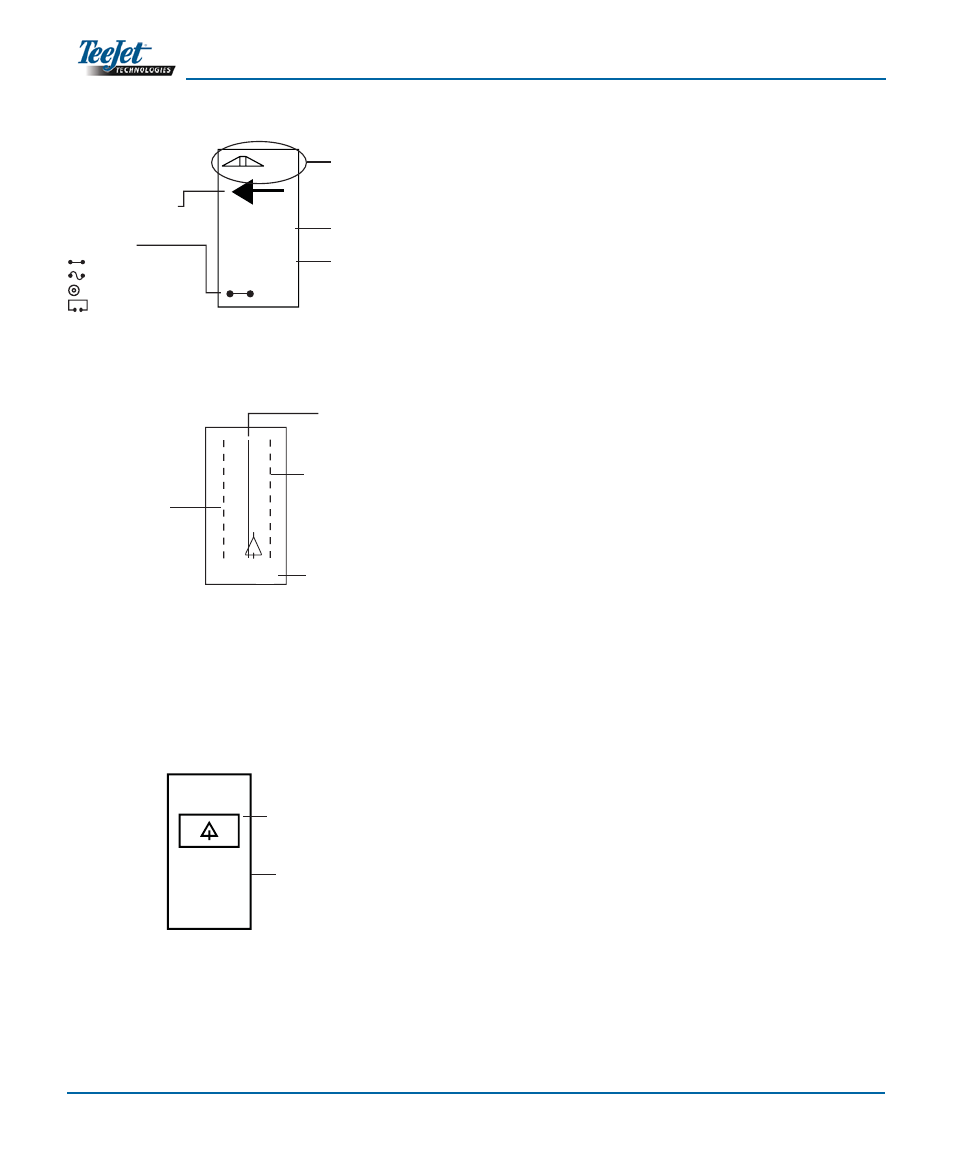

Navigation Screen - Operation

Guidance Screen - Map Page

Bounded Area Screen

NOTE: If a SmartCable is not connected to the

system, the console cannot be placed in
“Auto” mode. However, acreage can be
bounded.

6.0 MPH

1.5

Swath Number
+ to the right of the A-B baseline
- to the left of the A-B baseline

Guidance Mode

Straight A-B Guidance

Curved A-B Guidance

Circle Pivot Guidance

Headland Circuit

Distance to main guideline

Vehicle Speed

Direction to main guideline

+1

6.0 Ft

Center guideline

Next guideline to the right

Next guideline to the left

Distance from
center guideline

M

1435.00

Bounded Area
Indicates a bounded area has been
completed

Hectares (acres) Bounded
Indicates the number of hectares
bounded by Headland Circuit

55

6 km/h
