LH 3000 OPERATING MANUAL
LH AGRO 7

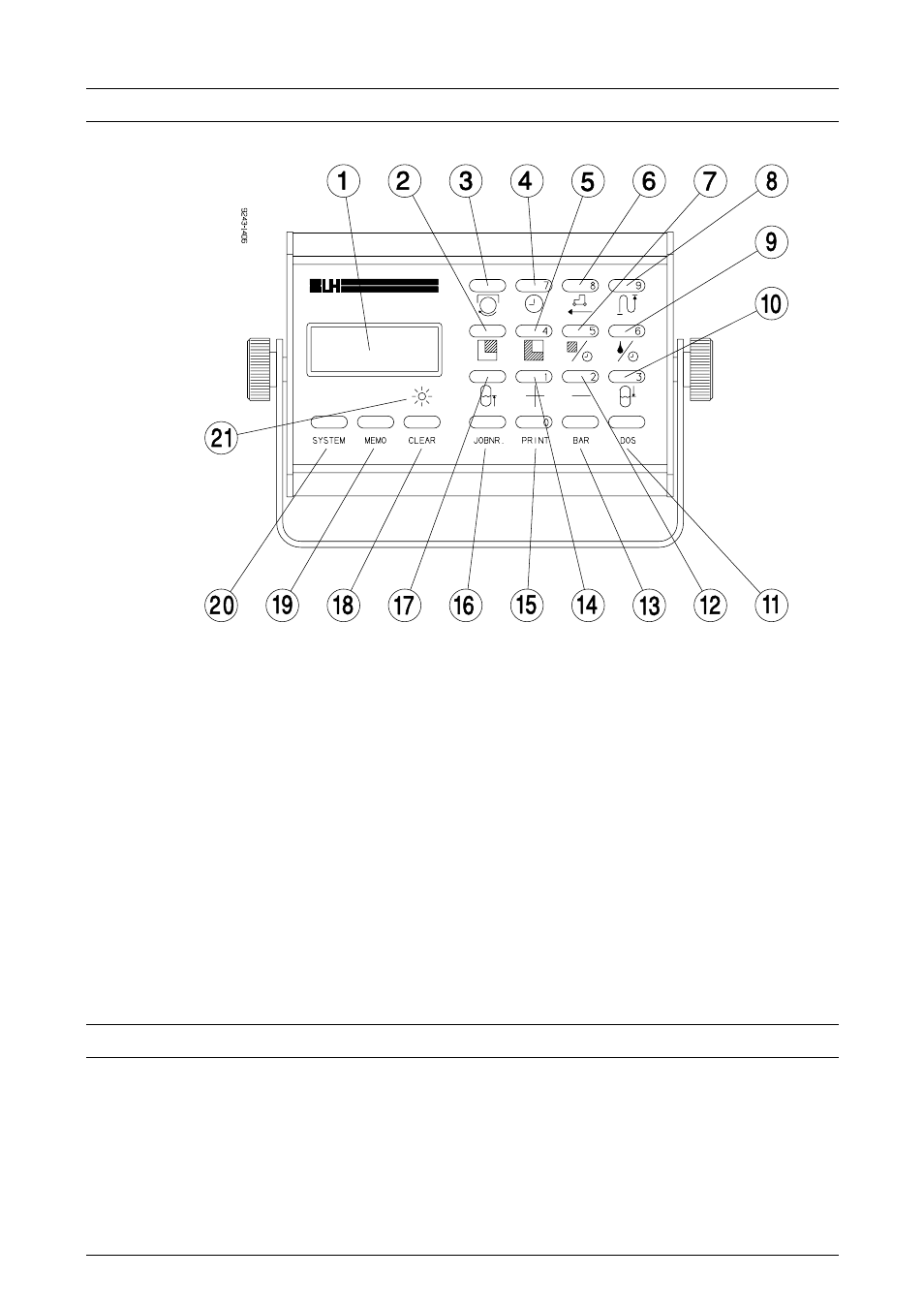

LH 3000 MONITOR
1. Display
2.
Remaining area to work
3. PTO shaft revolutions per minute
4. Working time (Timer)
5. Area counter (trip and total)
6. Speed km/h
7. Hectar per hour
8. Travelled distance in metres
9. Application rate per minute
10. Litre consumption from tank
11. Litre application per hectar
12. Step application (reduction)
13. Manometer pressure in bar
14. Step application (increase)
15. Print of stored data in the memory
16. Field No. or Customer No. Max 9
digits.
17. Remaining litres in tank
18. Clear
key
19. Memory of data
20. Encoding values 1-14
21. Control lamp for implement sensor
ENCODING KEYS
The figure keys 0 – 9 are only lit and thus visible when they are to be used, e. g.
when values are to be encoded.
